F DISASSEMBLY/REASSEMBLY > 11. CU-202 (Only for Europe)
F-68
[1]
[3]
[2]

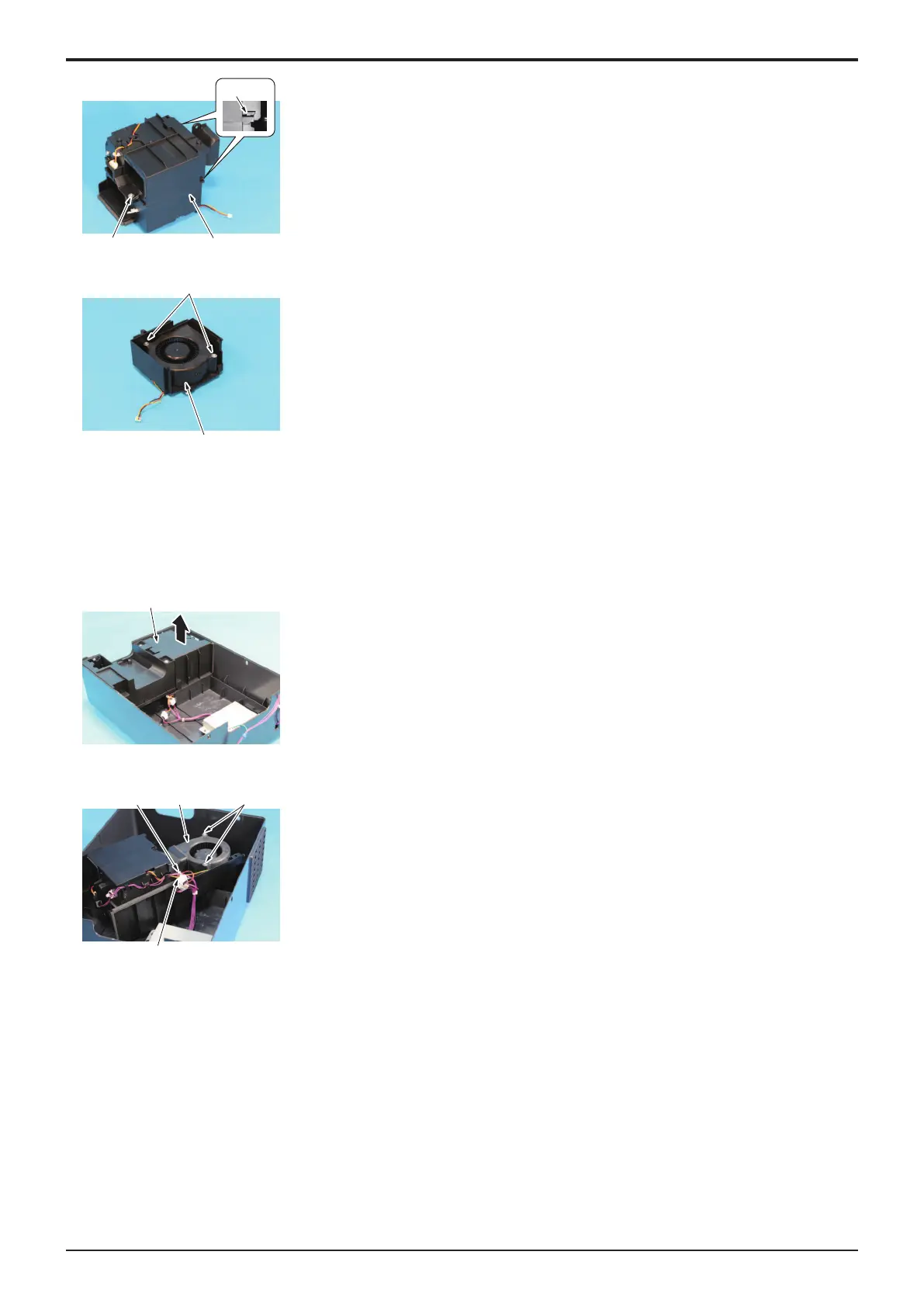

6. Remove the screw [1], and unlock two tabs [2].
7. Remove the exhaust fan/2 assy [3].
[2]
[1]
8. Remove two screws [1], and remove the exhaust fan/2 [2].
9. To reinstall, reverse the order of removal.
11.6Exhaust fan/3 (FM3)
1. Remove the clean unit.
F.11.1 Clean unit (CU-202)
2. Remove the UFP filter.
F.11.2 UFP filter
[1]
3. Remove the exhaust fan assy [1].
[4][2]
[1]
[3]
4. Disconnect the connector [1], and remove the harness from the wire saddle [2].
5. Remove two screws [3], and remove the exhaust fan/3 [4].
6. To reinstall, reverse the order of removal.
Service Manual
Y119930-3
