d-Color MF4003/MF3303
P THEORY OF OPERATION > 1. d-Color MF4003/MF3303
P-43

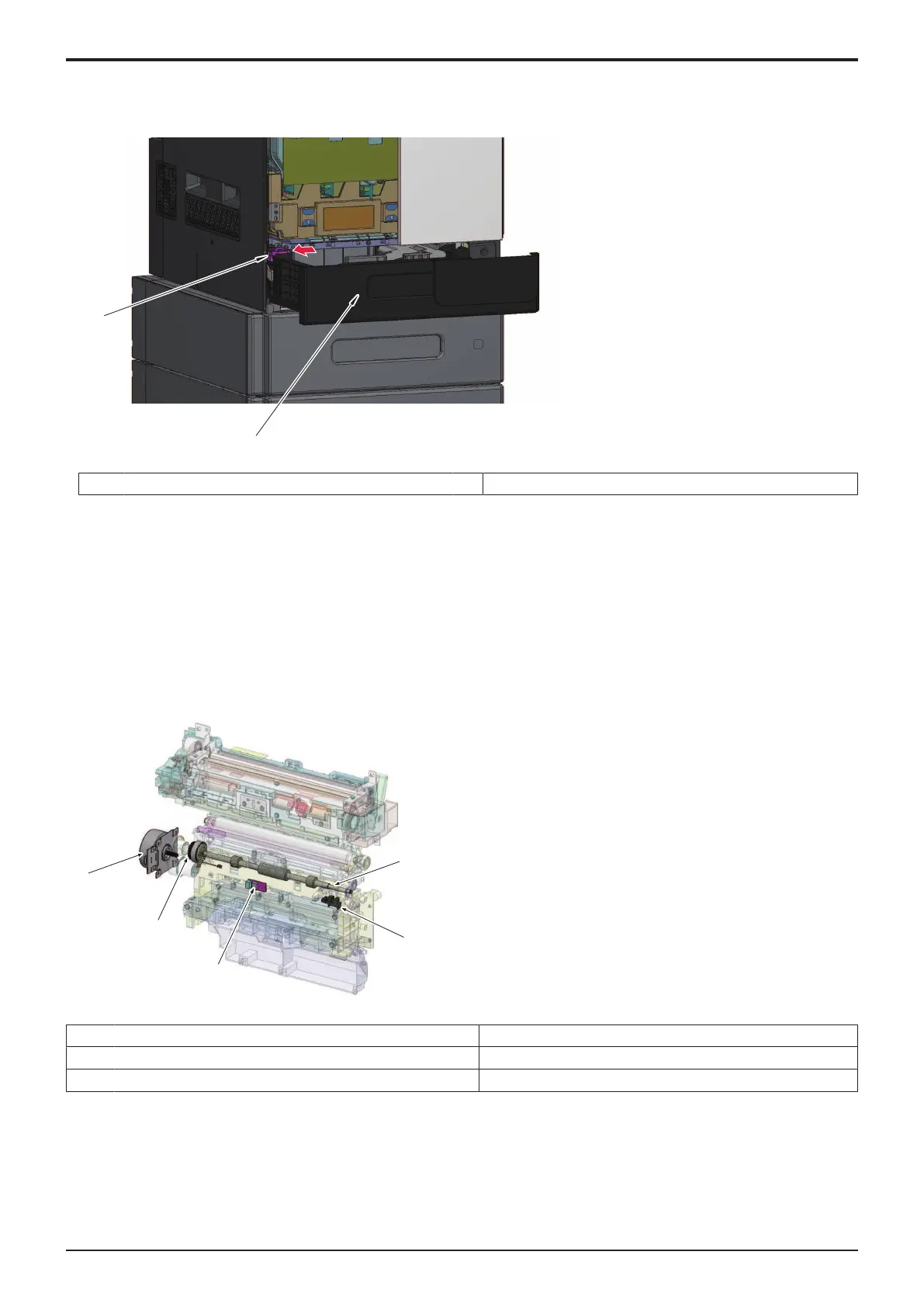

(9)Paper feed tray stopper release mechanism
• The paper feed tray is equipped with a stopper mechanism.
• When paper is placed, the stopper prevents the paper feed tray from falling off from the machine even if it is pulled out.
• The paper feed tray can be removed if paper is remained inside the machine at the time of handling a paper jam or a misfeed.
[2]
[1]
[1] Tray 1 [2] Tray 1 stopper
(a)Releasing the paper tray stopper
• Press the stopper on its left side, the stopper lock will be released.
(b)Locking the paper tray stopper
• Press the stopper on its right side, the stopper lock will be locked.
NOTE
▪ A mechanism is provided to push and lock the stopper through closing the paper tray to its home position even if you
forget to lock it. (Mechanism to prevent forgetting lock)
1.12REGISTRATION SECTION
1.12.1Configuration
[4]
[5]
[1]
[2]
[3]
[1] Registration roller [2] Registration sensor (PS9)
[3] Temperature/humidity sensor (TEM/HUMS) [4] Registration clutch (CL4)
[5] Main motor (M1) - -
Y119930-3
Service Manual
