d-Color MF4003/MF3303
L TROUBLESHOOTING > 1. JAM CODE
L-15

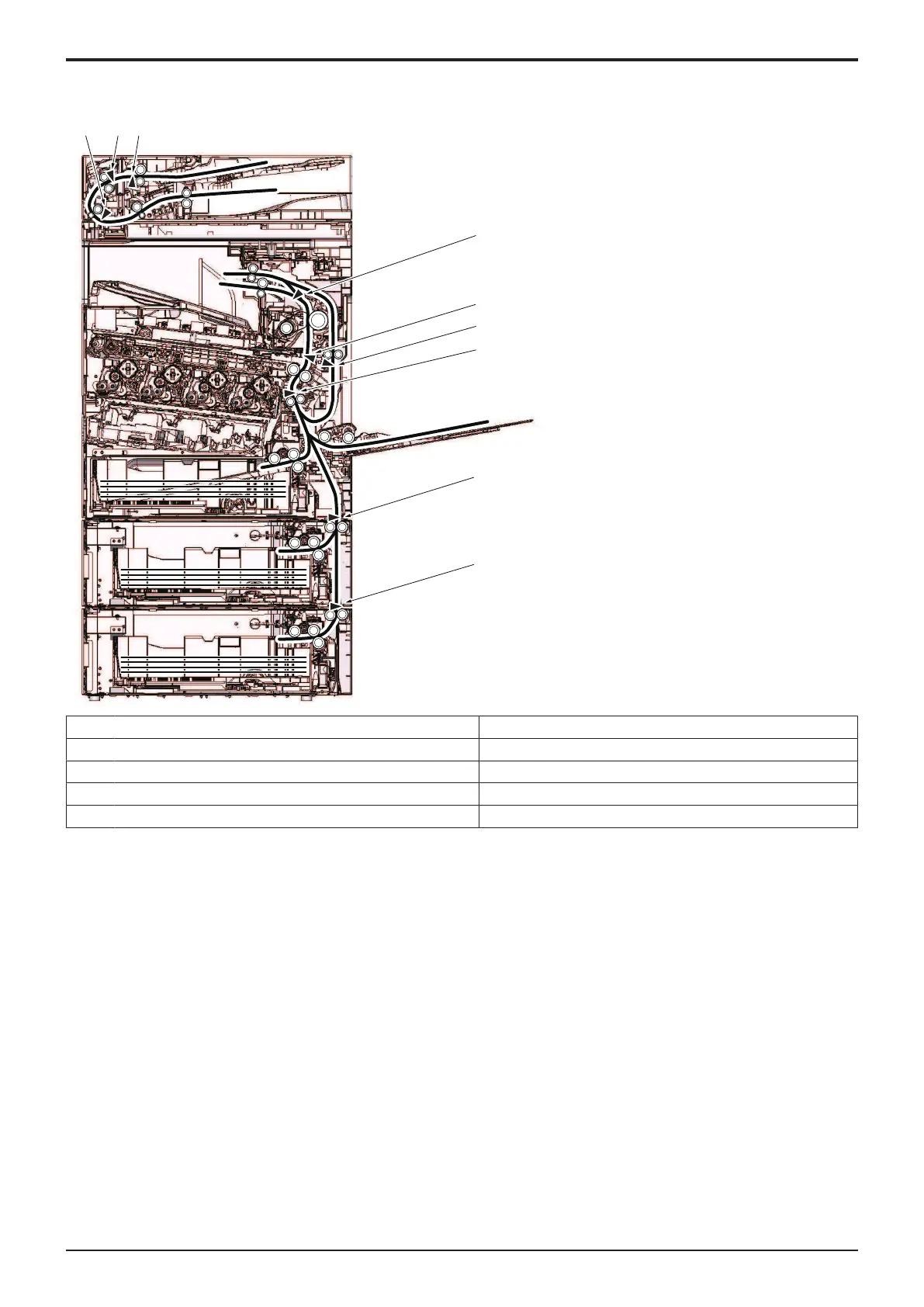

1.10Sensor layout
1.10.1d-Color MF4003/MF3303
[4]
[1] [2] [3]
[5]
[6]
[8]
[9]
[7]
[1] Document before read sensor (PS18) [2] Document registration sensor (PS17)
[3] After separate sensor (PS16) [4] Paper exit sensor (PS13)
[5] Fusing loop sensor (PS10) [6] ADU transport sensor (PS11)
[7] Registration sensor (PS9) [8] Tray 2 transport sensor (PS6/2) *
[9] Tray 3 transport sensor (PS6/3) * - -
• *: Only when PF-P20 or PF-P21 is installed
Y119930-3
