F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-14
[1]
[3]
[2]

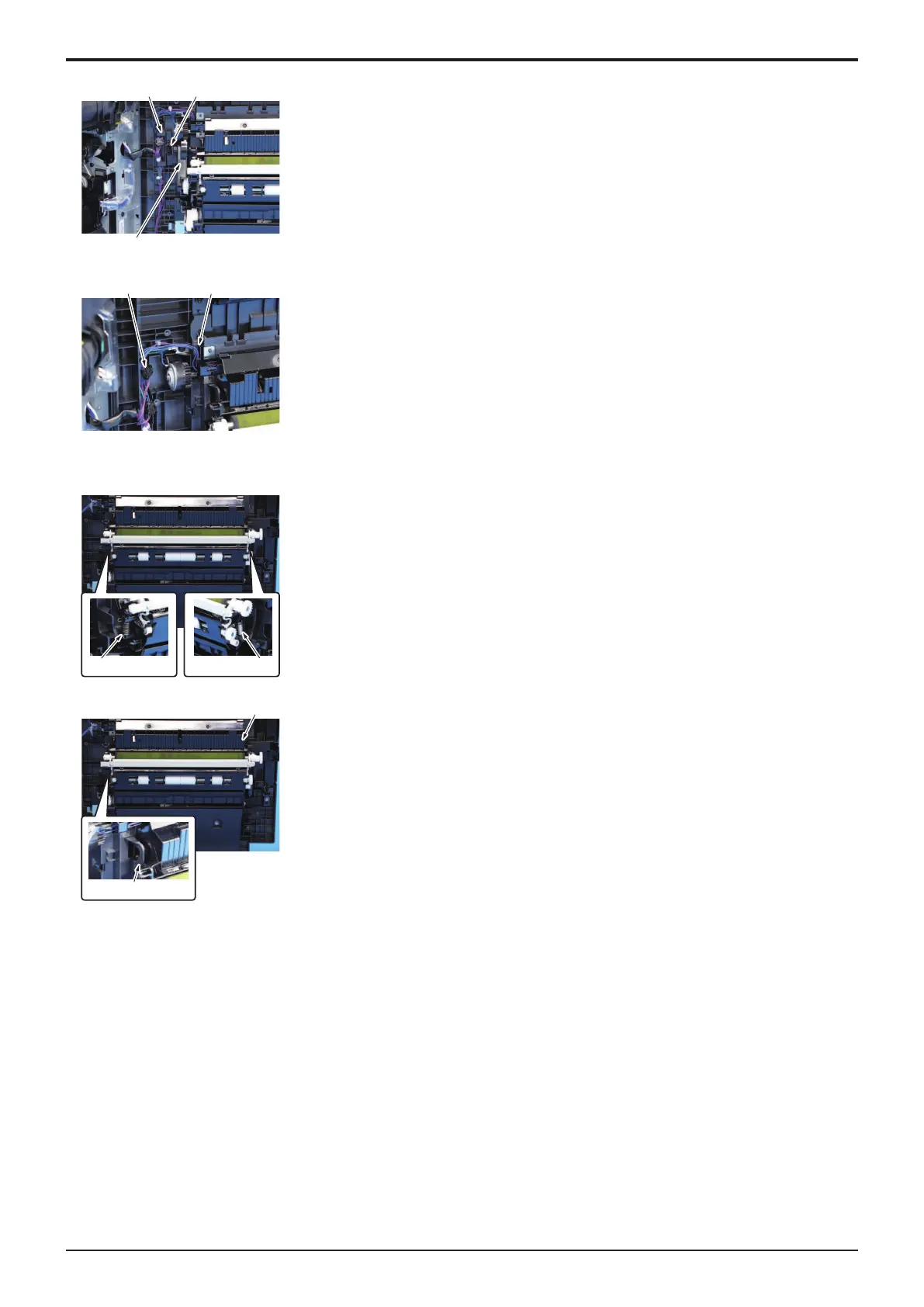

3. Remove the screw [1], and remove the harness guide [2] and the gear assy [3].
[2]
[1]
4. Disconnect the connector [1], and remove the harness from the harness guide
[2].
[1][1]
5. Remove two springs [1].
[1]
[2]
6. Unhook the hook [1], and remove the 2nd transfer pressure unit [2].
7. To reinstall, reverse the order of removal.
4.2.4Main drive unit
1. Remove the toner cartridge/Y,M,C,K.
E.3.1.6 Replacing the toner cartridge
2. Remove the waste toner bottle.
E.3.1.9 Replacing the waster toner bottle
3. Remove the imaging unit/Y,M,C,K.
E.3.1.7 Replacing the imaging unit
4. Remove the transfer belt unit.
E.3.1.10 Replacing the transfer belt unit
5. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
6. Remove the rear cover.
F.4.1.3 Rear cover
7. Remove the left cover.
F.4.1.2 Left cover
8. Remove the PWB box.
F.4.2.7 PWB box
9. Remove the DC power supply.
F.4.3.4 DC power supply (DCPS)
