d-Color MF4003/MF3303
P THEORY OF OPERATION > 1. d-Color MF4003/MF3303
P-2
[3] External telephone connector (TEL) [4] CS Remote Care connector for modem connection
(RS-232C) *1
[5] Network port (10 Base-T/100 Base-TX/1000 Base-T) - -
• *1: When local interface kit (EK-P11) is mounted.

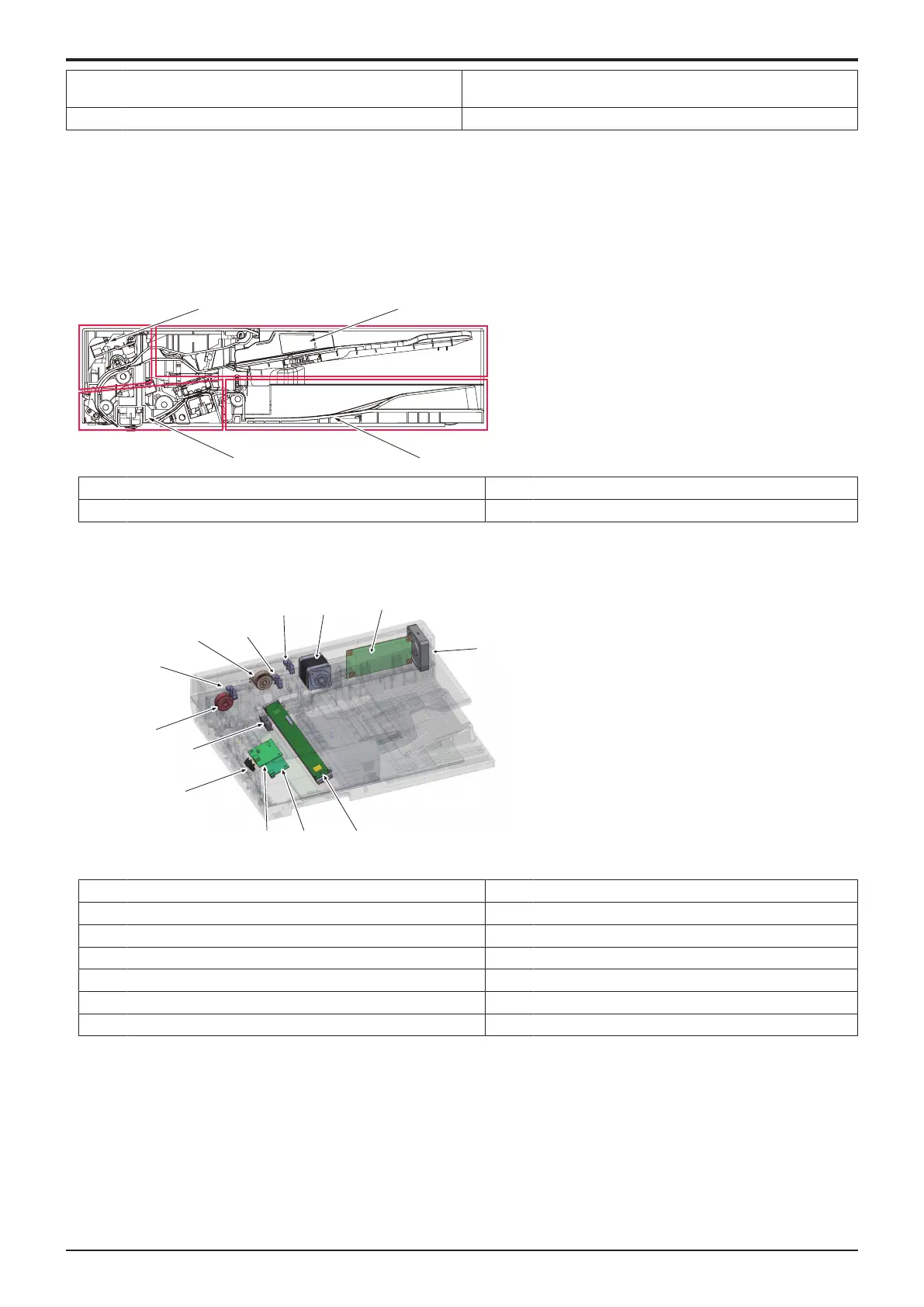

1.2AUTOMATIC DOCUMENT FEEDER SECTION
1.2.1Configuration
(1)Section Configuration
[1] Registration section [2] Paper feed section
[3] Scanner section [4] Paper exit section
(2)Main part configuration
[5]
[4]
[3]
[2]
[1]
[13]
[12]
[1
1]
[10]
[9]
[8]
[7]
[6]
[1] DF cooling fan motor (FM4) [2] DF CIS module (DFCIS)
[3] Multi feed detection board/1 (transmitter) [4] Multi feed detection board/2 (receiver)
[5] Document before read sensor (PS18) [6] After separate sensor (PS16)
[7] Document registration clutch (CL9) [8] Document registration sensor (PS17)
[9] Document paper feed clutch (CL8) [10] Document empty sensor (PS19)
[11] Upper door sensor (PS20) [12] Document main motor (M8)
[13] DF control board (DFCB) -
1.2.2Paper path
(1)Paper path
• When the start key is pressed, the document main motor drive and the pick-up roller feed the original in.
• The original that fed in is transferred to the paper exit tray via the registration roller, document reading roller and document exit roller.
To Next Page
