Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-15
10. Remove the main motor.
F.4.4.1 Main motor (M1)
11. Remove the color motor.
F.4.4.2 Color motor (M2)
[1]
[2]
[4]
[3]

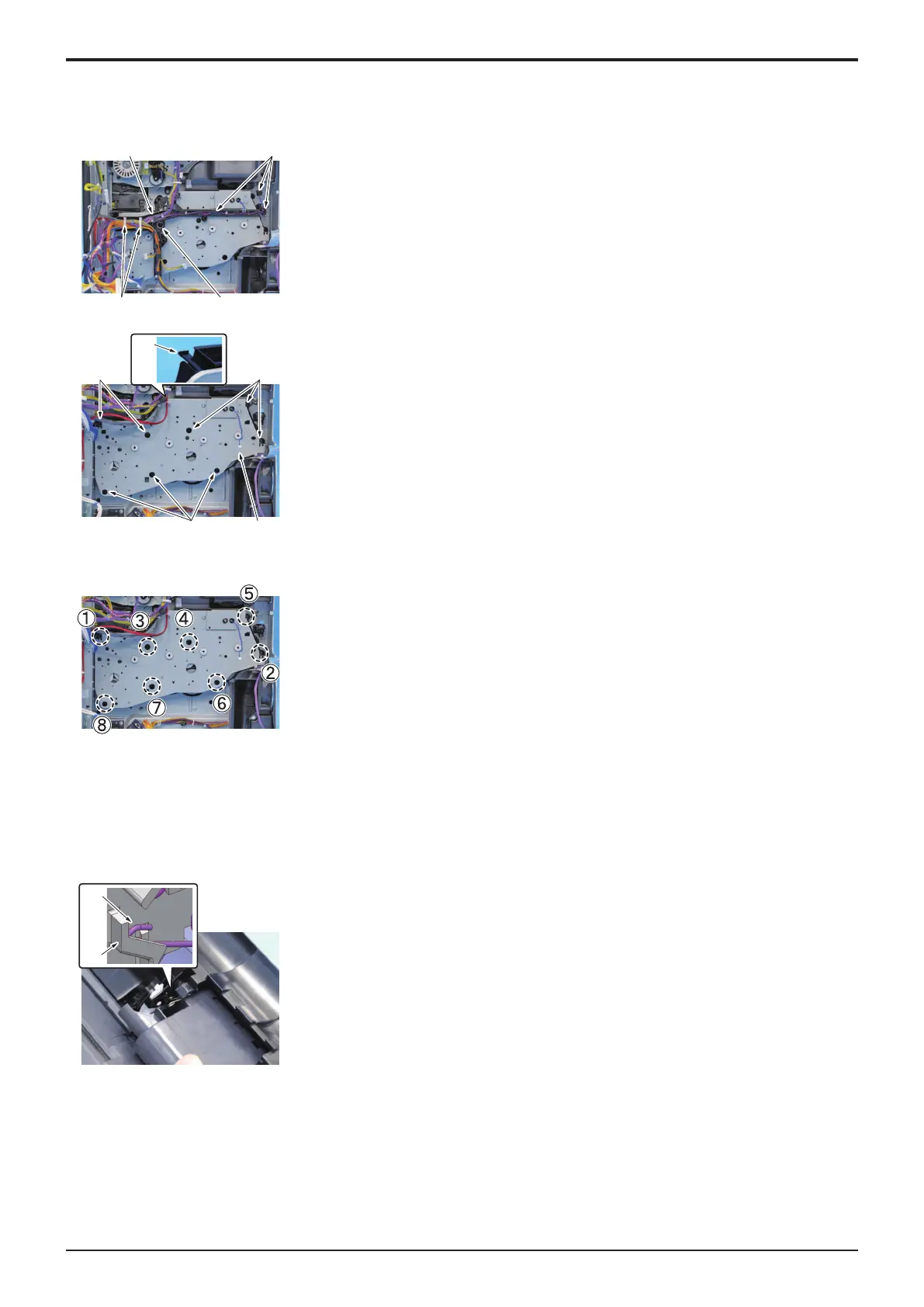

12. Disconnect three connectors [1].
13. Remove the harness from the two wire saddles [2] and the harness guide [3].
14. Remove the screw [4], and remove the harness guide [3].
[1]
[3]
[1]
[1]
[2]
15. Remove eight screws [1].
16. Remove the tab [2], and remove the main drive unit [3].
17. To reinstall, reverse the order of removal.
18. NOTE
▪ When installing the main drive unit, be sure to tighten the screws
from (1) to (8) in that order.
4.2.5Manual bypass tray roller unit
1. Open the right door.
2. Remove the manual bypass tray unit.
F.4.2.1 Manual bypass tray unit
3. Remove the bypass tray paper feed clutch.
F.4.5.1 Bypass tray paper feed clutch (CL2)
[1]
[2]
4. Remove the spring [1] from the spring holder [2].
Y119930-3
Service Manual
