d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-35
[1][2]

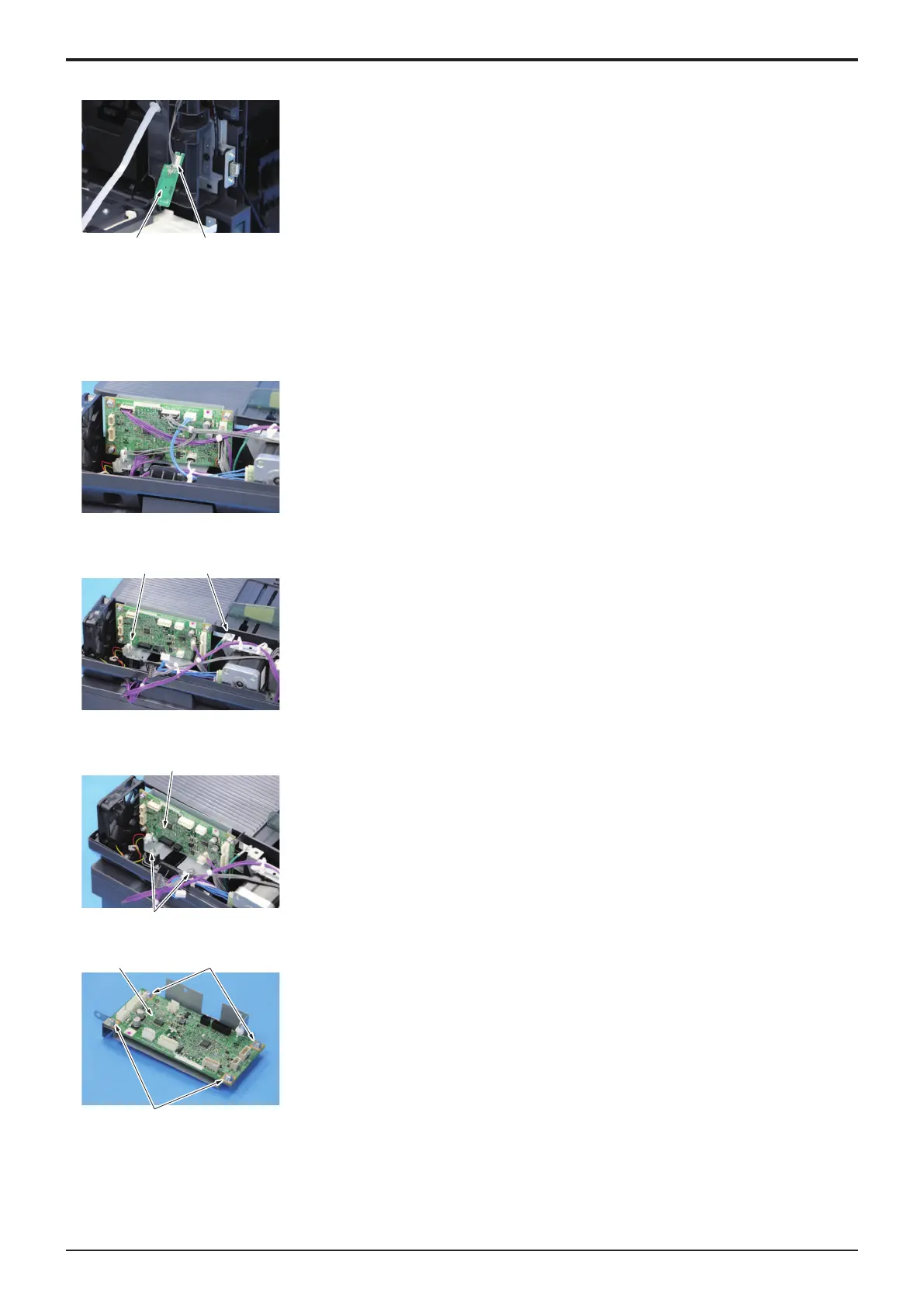

6. Disconnect the connector [1], and remove the NFC board [2].
7. To reinstall, reverse the order of removal.
4.3.11DF control board (DFCB)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
2. Disconnect all connectors from the DF control board.
[1][2]
3. Remove the screw [1], and disconnect the ground wire.
4. Remove the harness from the edge cover [2].
[2]
[1]
5. Remove two screws [1], and remove the DF control board assy [2].
[2]
[2]
[1]
6. Remove four screws [1], and remove the DF control board [2].
7. To reinstall, reverse the order of removal.
4.4Motors
4.4.1Main motor (M1)
1. Remove the rear cover.
Y119930-3
Service Manual
