F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-22
[3][1]
[2]

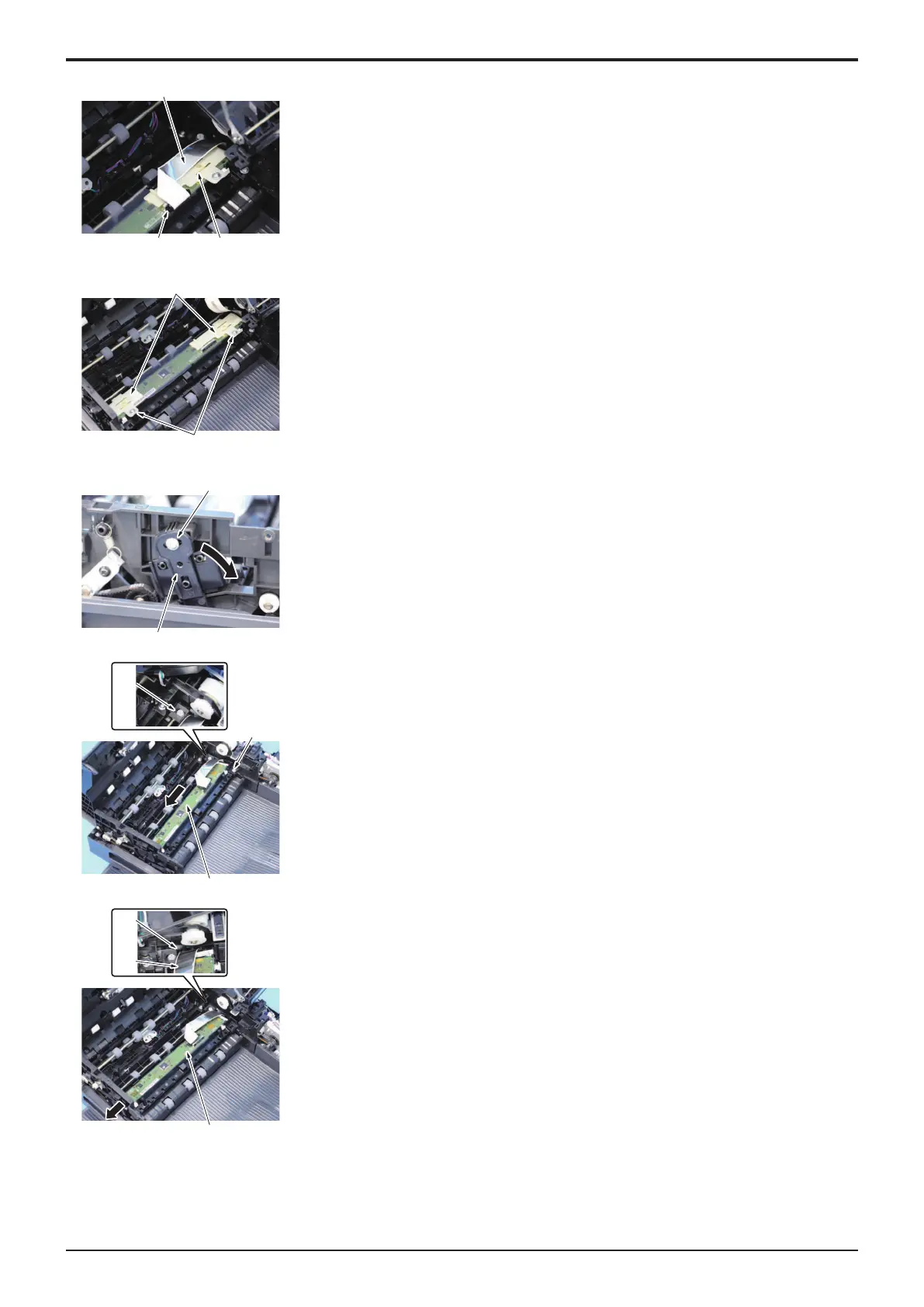

6. Disconnect the flat cable connector [1], and remove the flat cable [2] from the
stopper [3] of the DF CIS module.
[1]
[2]
7. Remove two screws [1], and remove two stoppers [2] of the DF CIS module.
[1]
[2]
8. Remove the screw [1], and evacuate the stopper [2] of the DF CIS module.
[3]
[1]
[2]
9. Remove the screw [1].
10. Rotate the adjustment screw [2], and slide the DF CIS module assy [3].
[1]
[3]
[2]
11. Raise the DF CIS module assy [1], and remove the flat cable [3] from the
harness guide [2].
12. Remove the DF CIS module assy [1].
13. To reinstall, reverse the order of removal.
4.2.12Scanner unit
1. Open the front door.
Service Manual
Y119930-3
