d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-42
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
4. Remove the PWB box.
F.4.2.7 PWB box
5. Remove the fusing motor.
F.4.4.3 Fusing motor (M3)
[1]
[1]
[2]
[2][3][4]
[5]

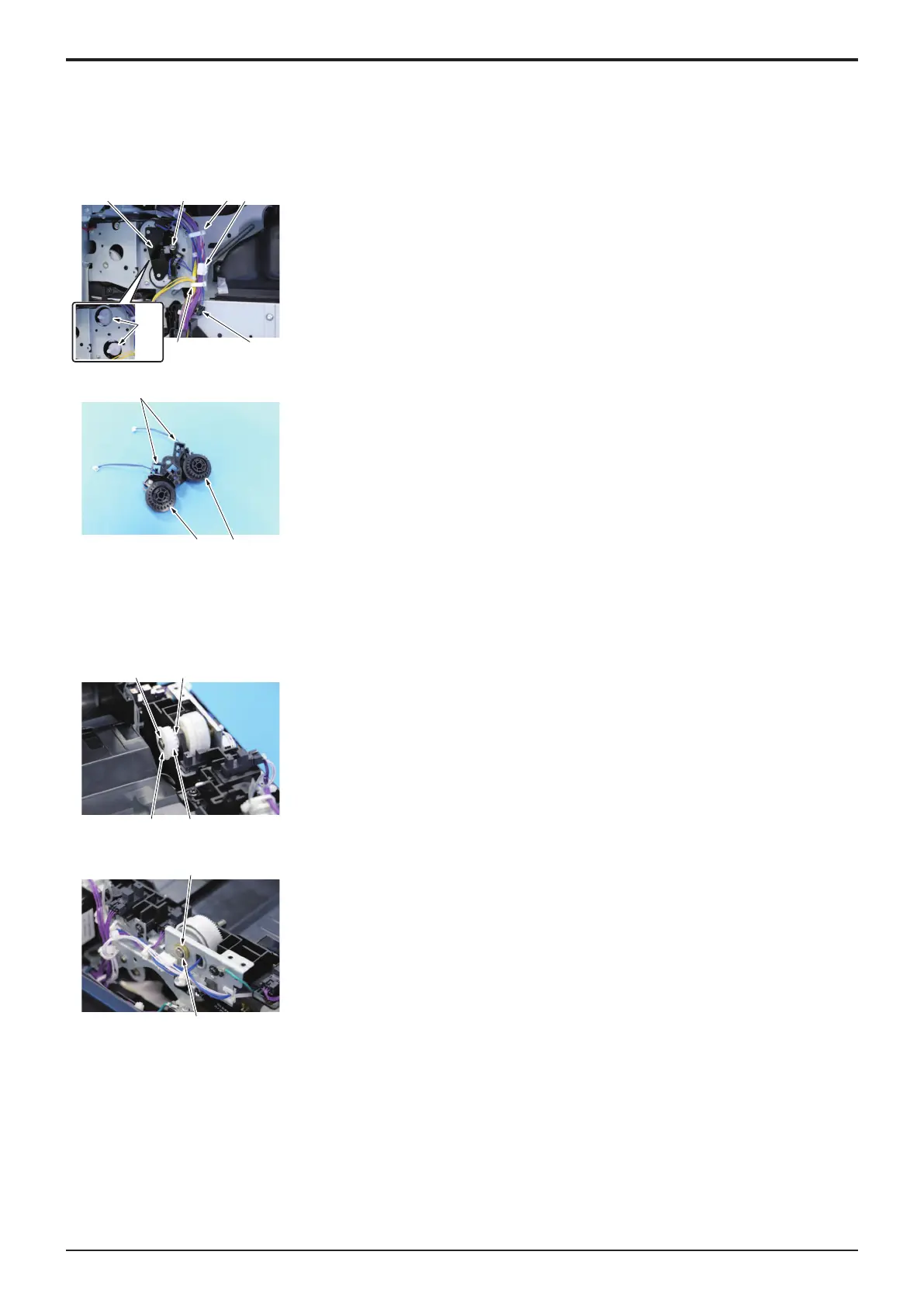

6. Remove the harness from two wire saddles [1], and disconnect two connectors
[2].
7. Remove the screw [3], and remove the ADU clutch assy [4].
NOTE
▪ Make sure not to drop the two gears [5].
[1]
[3]
[2]
8. Remove the harness from the harness guide [1], and remove the ADU forward
rotation clutch [2] or the ADU reverse rotation clutch [3].
9. To reinstall, reverse the order of removal.
4.5.6Document paper feed clutch (CL8)
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
[2] [3]
[1] [4]
2. Remove the E-ring [1], flange [2], gear [3], and remove the bushing [4].
[1]
[2]
3. Remove the E-ring [1] and bushing [2].
Service Manual
Y119930-3
