d-Color MF4003/MF3303

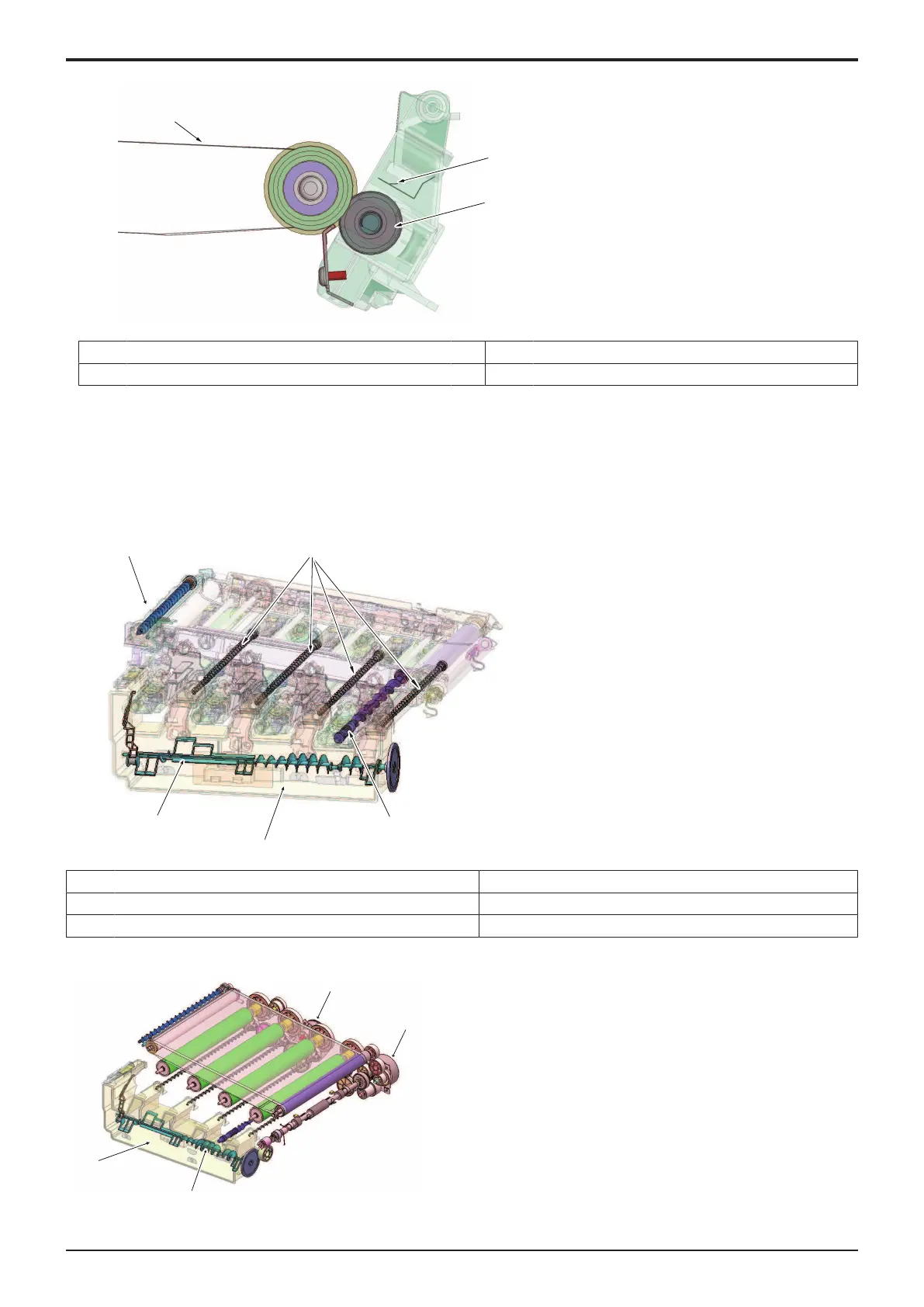

P THEORY OF OPERATION > 1. d-Color MF4003/MF3303
P-33
[1]
[2]
[3]
[1] Charge neutralizing needle [2] 2nd transfer roller
[3] Transfer belt - -
(5)2nd transfer roller new article detection
• The 2nd transfer roller (hereinafter referred to as the “transfer roller”) is not provided with any new article detection mechanism. If the
transfer roller is replaced with a new one, therefore, “New Release” must be performed of the “Transfer Roller Unit” in “Counter/ Life” of
the Service Mode.
1.9TONER COLLECTING SECTION
1.9.1Configuration
[1]
[2]
[3]
[4]
[5]
[1] Waste toner collecting screw (Imaging unit/ Y,M,C,K) [2] Waste toner supply screw (Imaging unit/ K)
[3] Waster toner bottle [4] Waste toner agitating blade
[5] Waste toner collecting screw (Transfer belt) -
1.9.2Drive
[4]
[1]
[2]
[3]
Y119930-3
