d-Color MF4003/MF3303
M PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR LAYOUT
DRAWING
M-9

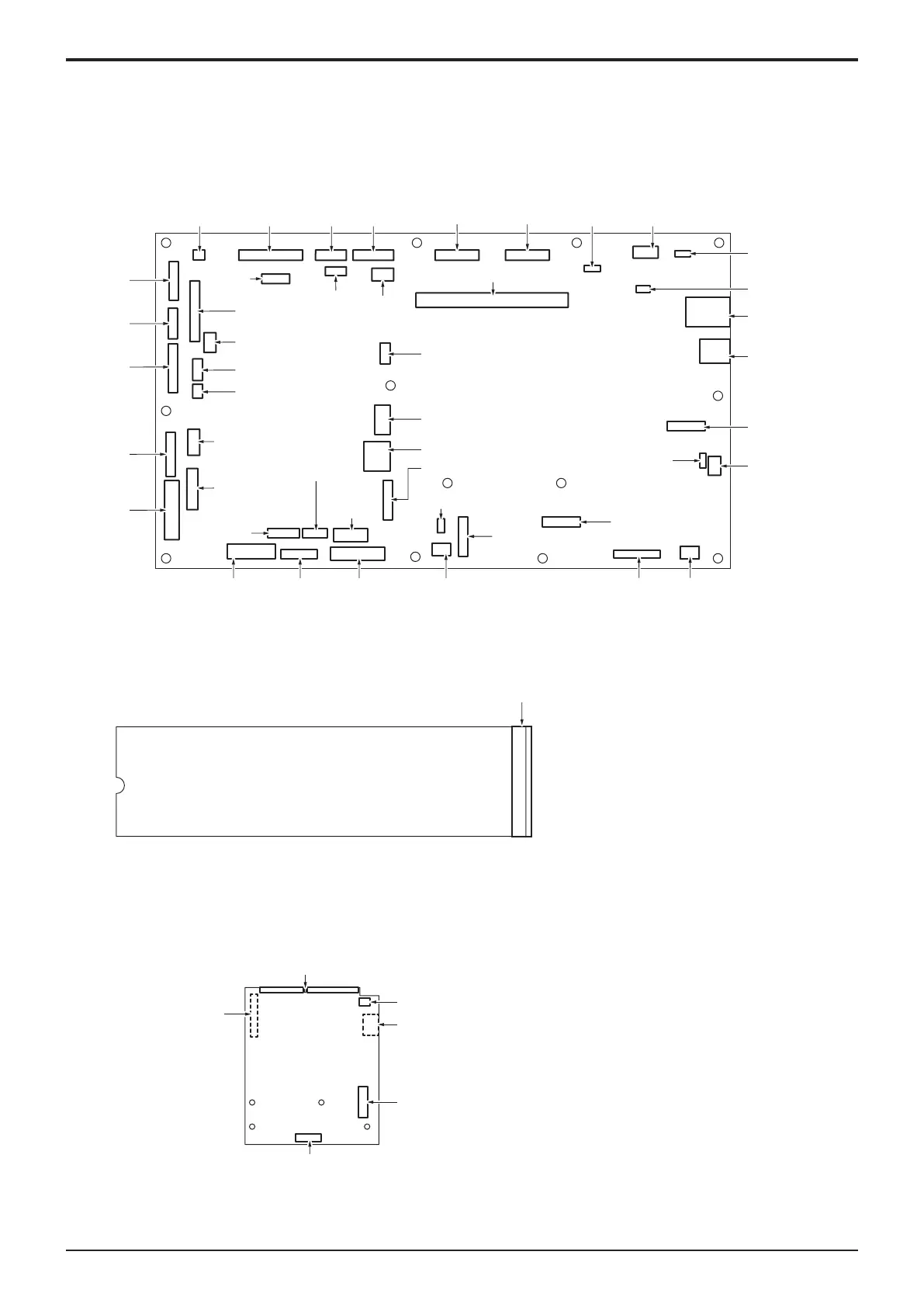

2. CONNECTOR LAYOUT DRAWING
2.1BOARD CONNECTOR LAYOUT DRAWING
2.1.1d-Color MF4003/MF3303
(1)Base board (BASEB)
CN20E
(11pin)
CN21E
(14pin)
CN17E
(15pin)
CN4E
(25pin)
CN8E
(7pin)
CN9E
(4pin)
CN7E
(5pin)
CN6E
(10pin)
CN5
(31pin)
CN6
(31pin)
CN5E
(7pin)
CN30E
(8pin)
CN19E
(9pin)
CN22E
(26pin)
CN17
(4pin)
CN10 (12pin)
CN14 (5pin)
CN1E (12pin)
CN3E (8pin)
CN20 (10pin)
CN2E (4pin)
CN13
(23pin)
CN16
(4pin)
CN8
(4pin)
CN15
(14pin)
CN1 (6pin)
CN18
(12pin)
CN26E (5pin)
CN22
(4pin)
CN21
(24pin)
CN19
(24pin)
CN7
(5pin)
CN100 (281pin)
CN18E
(14pin)
CN16E
(16pin)
CN10E
(9pin)
CN11E
(12pin)
CN31E
(2pin)
CN24E (3pin)
CN15E (6pin)
CN11 (4pin)
CN14E
(20pin)
CN25E
(6pin)
CN23E
(13pin)
CN13E
(8pin)
CN26
(4pin)
(2)Storage board (STRGB)
CN1 (75pin)
(3)CPU board (CPUB)
CN9 (30pin)
CN36 (9pin)
CN10 (3pin)
CN5 (281pin)
CN7 (50pin)
CN1 (75pin)
Y119930-3
Service Manual
