d-Color MF4003/MF3303
P THEORY OF OPERATION > 8. FK-517
P-103
3. When CNG is not detected for a given period (Default is 20 seconds. Changeable by address parameters), this function stops external
ringer transmission and becomes fax reception after the voice response message 2 is sent.
4. This function detects OFF-HOOK of the external telephone during external ringer transmission only.
5. When OFF-HOOK of the external telephone is detected during external ringer transmission, the line is connected to the external
telephone. Even if you use the telephone, you can manually switch to the fax reception after that.
6. When CNG is detected during the above-mentioned external ringer transmission, External ringer transmission is stopped and the fax
reception starts.

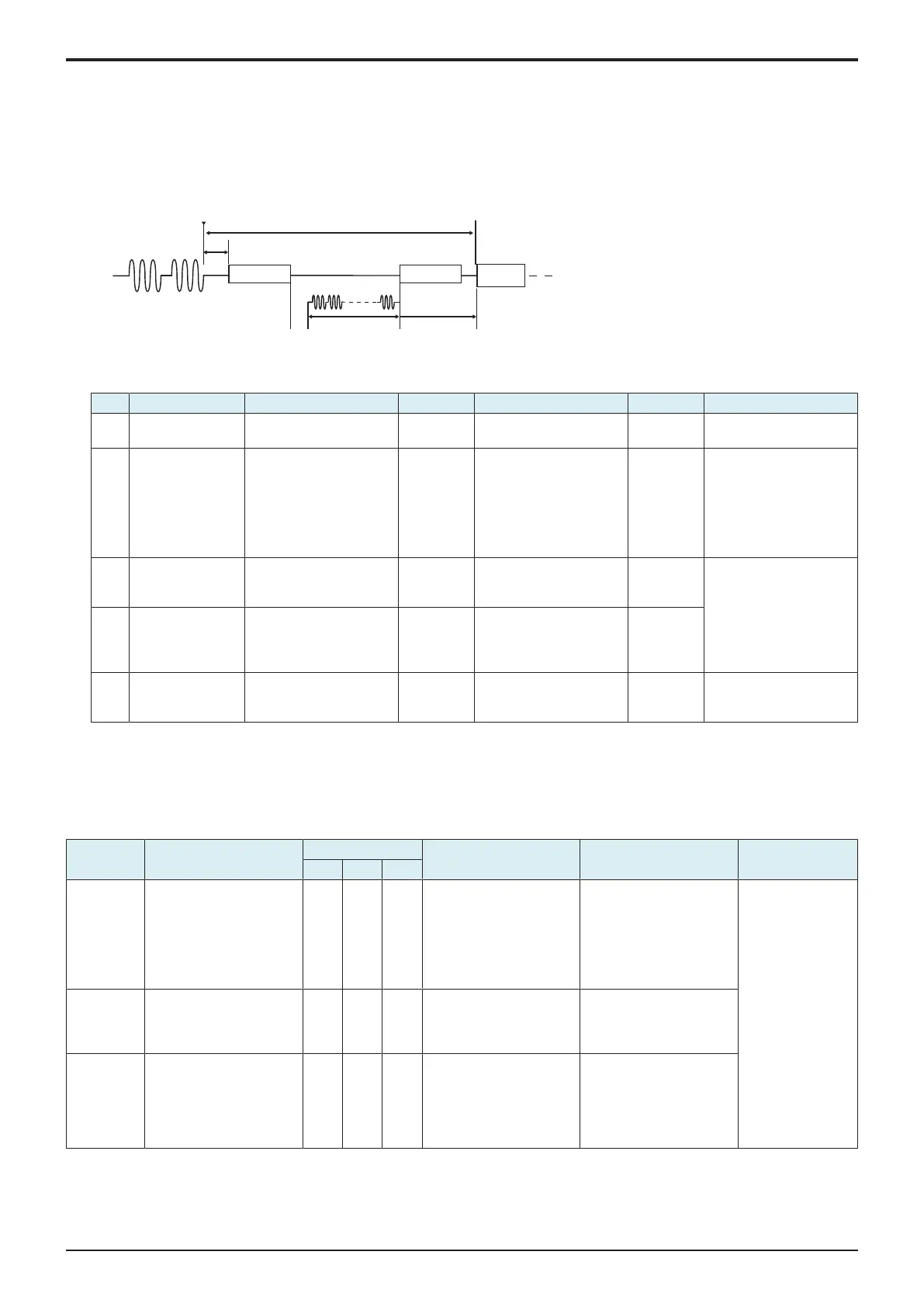

CNG detection term
Voice resp
onse
message 1
Voice response
message 2
2 seconds
Line seizure
4 seconds
(1)
(2) (3)
External phone off-hook
detection term
External ringer
Fax reception
starte
d,
ANsam sent
(c)Related FP
No. FP Meaning and purpose Address Value Default Note
1 Tel-Fax switching TEL/FAX switching mode 0x0e0095
bit5
0: Disabled
1: Enabled
0 Those with a Administrator
Settings
2 RBT transmission
time
RingBackTone signal
transmission time
0x0e00fc unit: 1000 ms, HEX 0x14 (20
sec.)
A serviceman setting
by address setting
Those with a
Administrator Settings
30 sec. or less: 5 seconds
30 sec. or more: 30
seconds
3 Tel-Fax switching
parameter
Time from vocal response
to RBT transmission (CNG
detection waiting time 2)
0x0e0095
bit7
0: 4 sec.
1: 2 sec.
0 A serviceman setting by
address setting
4 Tel-Fax switching
parameter
Time from reception to
voice response
transmission (CNG
detection waiting time 1)
0x0e0095
bit6
0: 2 sec.
1: 4 sec.
0
5 Tel-Fax switching
parameter
TEL/FAX switching ON
response details
0x0e0095
bit3
0: Voice response + RBT
transmission
1: RBT transmission only
0 Those with a Administrator
Settings
8.2.2F-code
F-code is a function to realize confidential transmission / bulletin board polling / relay transmission by using SUB, SEP and SID signals.
To be more specific, a machine which can open “a box” on the memory is called “a F code compliant center machine” and a machine which
can access to a center machine by using the F code function is called “a F-code compliant machine.” The center machine can have plural
“boxes” and they are used as the confidential box, bulletin board box and relay box respectively.
Function outline is as follows.
Function Outline Signals to be used Use (Meaning) Required function Remark
SUB SEP SID
Confidential
transmission
Sent to the center machine
which opens a confidential
box by appointing the
confidential box No. (The
center machine has
memory reception to the
confidential box.)
×
SUB = Appointment of
a confidential box
SID = Password
Registration = Message
adding
Each box No. =
Contents of a signal
(20 digits or less)
Bulletin
board polling
By appointing a box No. in
the center machine which
opens a bulletin board,
contents are polled.
× ×
SEP = Appointment of a
bulletin board box
Registration =
Message overwriting
With a mode which is
not deleted by polling.
Relay
transmission
Requesting relay to the
relay machine which opens
a relay box (No.) in which a
broadcasting transmission
remote station is
registered.
×
SUB = Appointment of
a relay box (No.)
SID = Password
= interact is required
= selectable
× = do not use
Y119930-3
