d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-44
[1]
[2] [1]

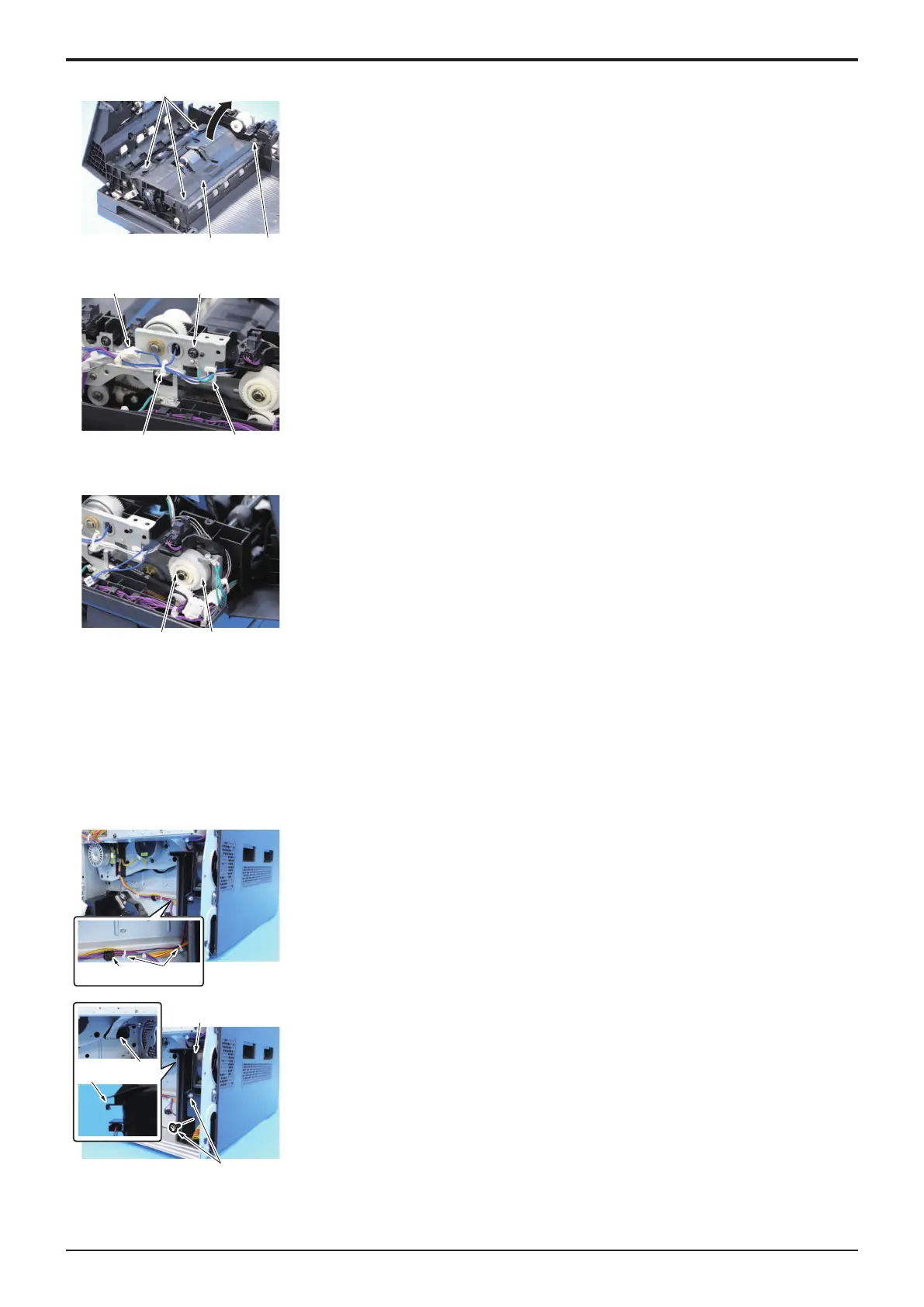

5. Remove four screws [1], and evacuate the DF lower guide assy [2].
[1][3]
[4] [2]
6. Remove the screw [1], and remove the ground wire from the edge cover [2].
7. Disconnect the connector [3], and remove the harness from the wire saddle [4]
and the edge cover [2].
[2][1]
8. Remove the E-ring [1], and remove the document registration clutch [2].
9. To reinstall, reverse the order of removal.
4.6Fan motor
4.6.1Machine cooling fan (FM1)
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the DC power supply.
F.4.3.4 DC power supply (DCPS)
[1][2]
3. Remove the harness from two wire saddles [1], and disconnect the connector
[2].
[3][2]
[1]
[4]
4. Remove two screws [1].
5. Remove the claw [2] from the hole [3] in the main body, and remove the
machine cooling fan assy [4].
Service Manual
Y119930-3
