d-Color MF4003/MF3303

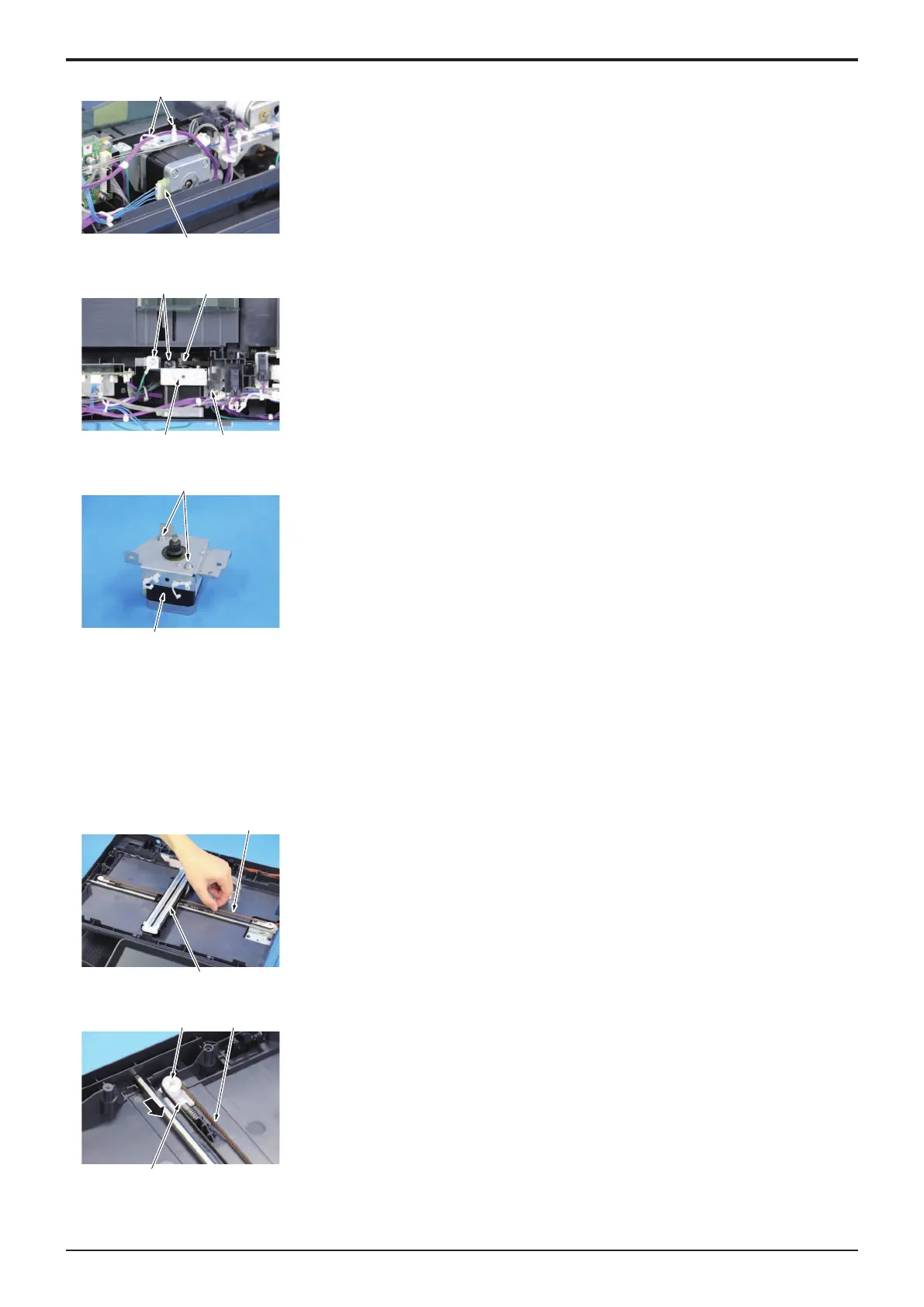

F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-38
[1]
[2]
2. Disconnect the connector [1].
3. Remove the harness from two wire saddles [2].
[3] [1]
[1] [2]
4. Remove three screws [1], and disconnect the ground wire.
5. Remove the belt [2], and remove the document main motor assy [3].
[2]
[1]
6. Remove two screws [1], and remove the document main motor [2].
7. To reinstall, reverse the order of removal.
4.4.7Scanner motor (M9)
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the ADF.
F.4.2.9 ADF
3. Remove the scanner upper cover.
F.4.1.8 Scanner upper cover
[2]
[1]
4. Slide the CIS module assy [2] to the position shown in the illustration while
holding the belt [1].
[1]
[3][2]
5. Remove the belt [3] from the pulley [2] while pressing on the position [1] shown
in the illustration.
Service Manual
Y119930-3
