Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-34
F.4.1.6 Control panel cover
[2]
[1]

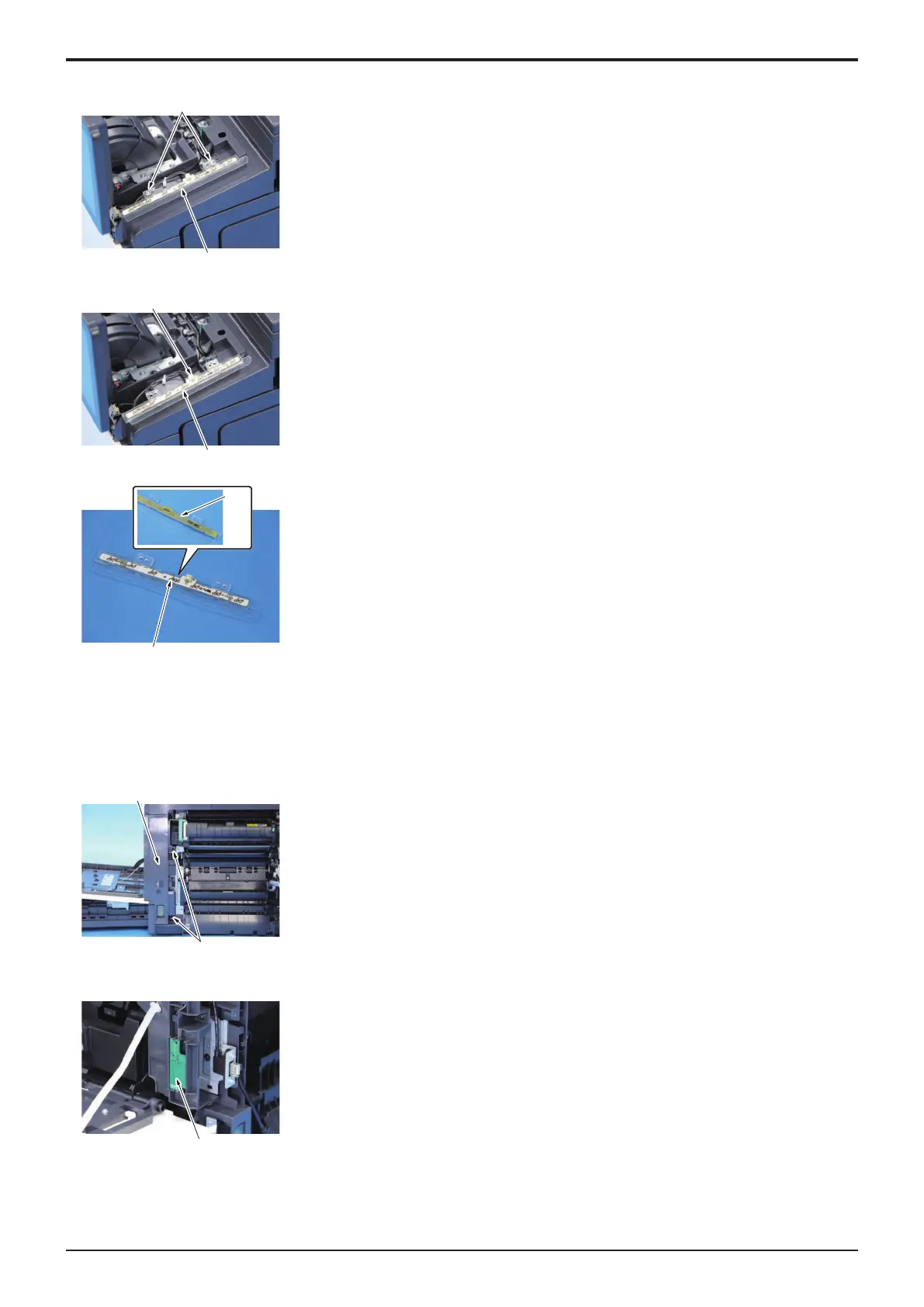

2. Remove two screws [1], and slide out the machine condition monitor board/Edg
assy [2].
[2]
[1]
3. Disconnect the connector [1], and remove the machine condition monitor
board/Edg assy [2].
[1]
[2]
4. Release the lock [1], and remove the machine condition monitor board/Edg [2].
5. To reinstall, reverse the order of removal.
4.3.10NFC board (NFCB)
1. Slide out the tray 1.
2. Open the front door.
3. Open the right door.
[1]
[2]
4. Remove two screws [1], and remove the front right cover/1 [2].
[1]
5. Slide out the NFC board [1].
Service Manual
Y119930-3
