Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-21
[2]
[1]

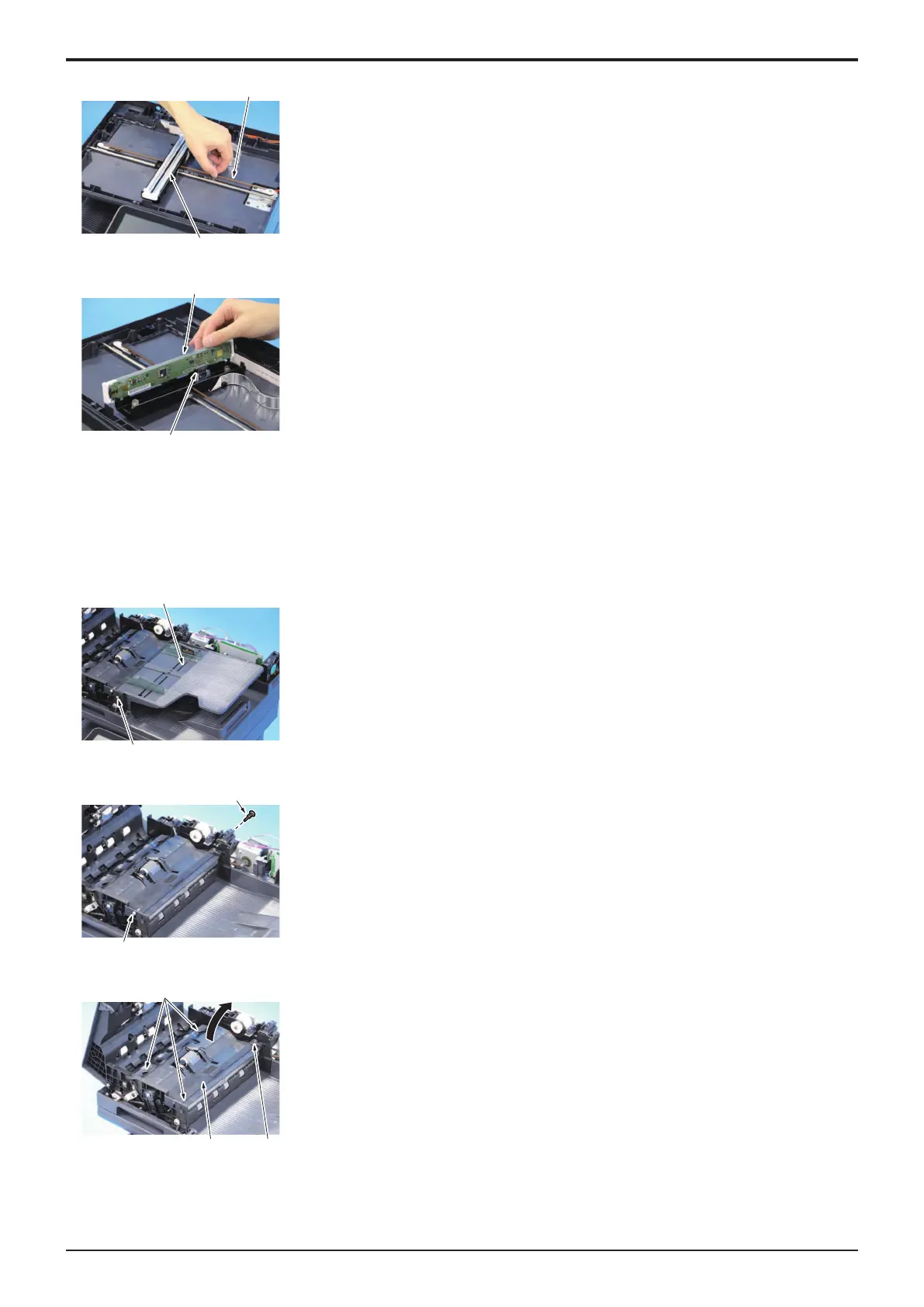

4. Slide the CIS module assy [2] to the position shown in the illustration while
holding the belt [1].
[2]
[1]
5. Raise the CIS module [1].
6. Disconnect the flat cable connector [2], and remove the CIS module [1].
7. To reinstall, reverse the order of removal.
4.2.11DF CIS module assy
1. Remove the rear cover (ADF).
F.4.1.10 Rear cover (ADF)
2. Remove the front cover (ADF).
F.4.1.9 Front cover (ADF)
[2]
[1]
3. Remove the screw [1], and remove the document feed tray [2].
[1]
[1]
4. Remove two screws [1].
[1]
[2] [1]
5. Remove four screws [1], and evacuate the DF lower guide assy [2].
Y119930-3
Service Manual
