E MAINTENANCE > 5. Cleaning/Lubrication procedure
E-17

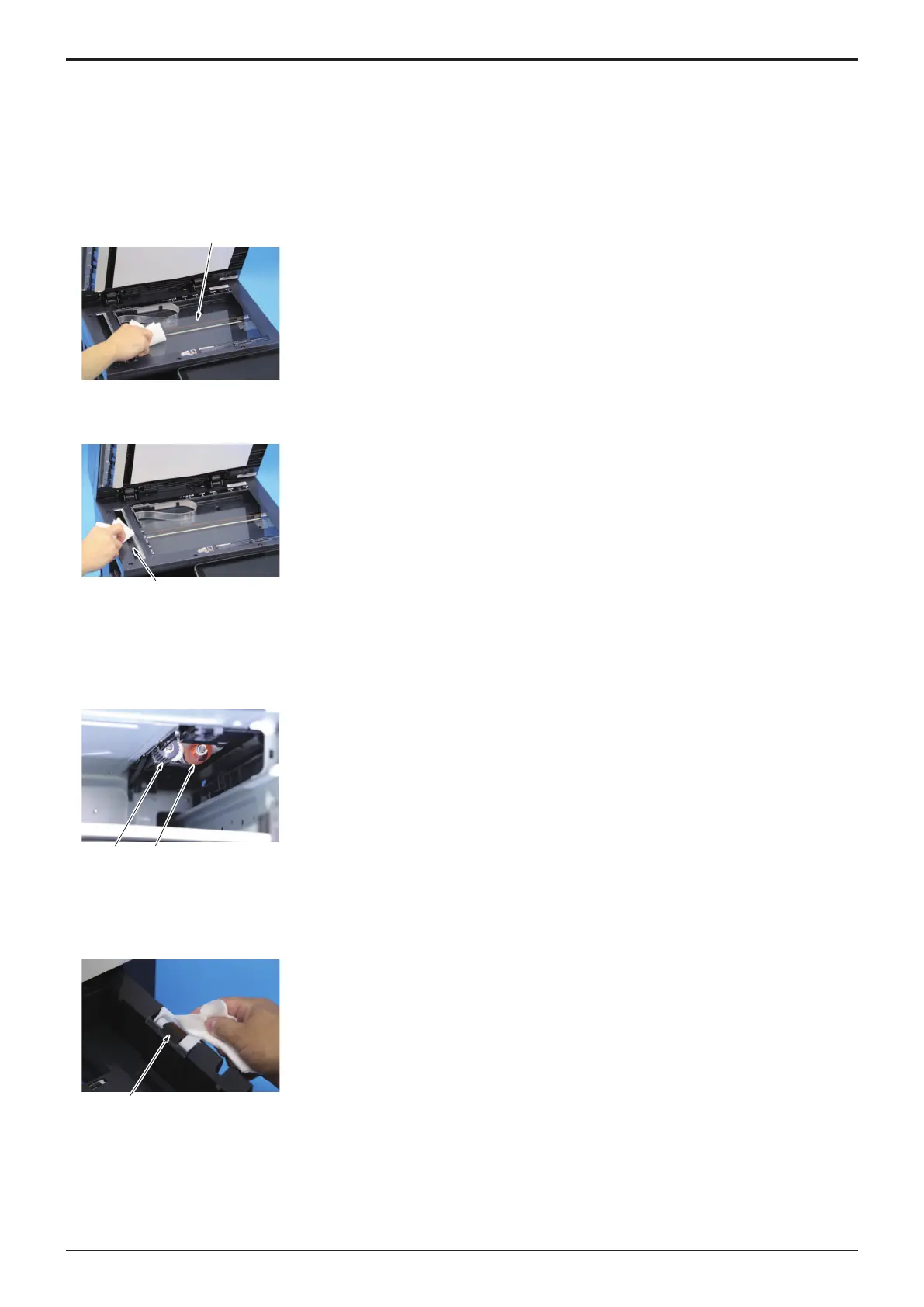

5. Cleaning/Lubrication procedure
NOTE
▪ The alcohol described in the cleaning procedure of maintenance represents the isopropyl alcohol.
5.1d-Color MF4003/MF3303
5.1.1Cleaning original glass
1. Open the ADF.
[1]
2. Using a cleaning pad dampened with alcohol, wipe the original glass [1] clean
of dirt.
[1]
3. Using a cleaning pad dampened with alcohol, wipe the document reading glass
[1] clean of dirt.
5.1.2Cleaning tray 1 pick-up roller, tray 1 feed roller
1. Remove the tray 1.
F.4.1.7 Tray1
[1][2]
2. Using a cleaning pad dampened with alcohol, wipe the tray 1 feed roller [1] and
tray 1 pick-up roller [2] clean of dirt.
5.1.3Cleaning tray 1 separation roller
1. Slide out the tray 1.
[1]
2. Using a cleaning pad dampened with alcohol, wipe the tray 1 separation roller
[1] clean of dirt.
Y119930-3
Service Manual
