E MAINTENANCE > 5. Cleaning/Lubrication procedure
E-18
d-Color MF4003/MF3303

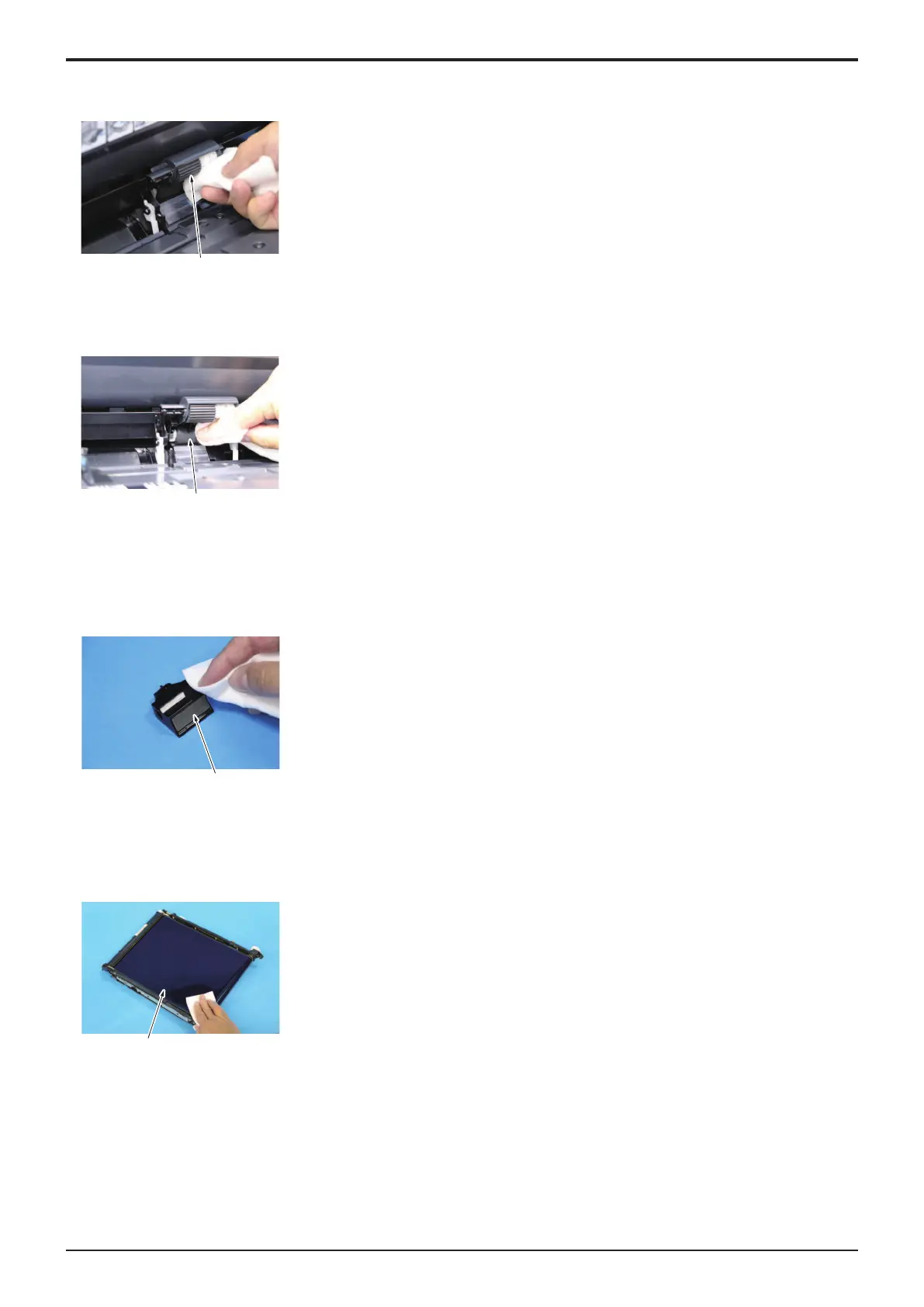

5.1.4Cleaning manual bypass tray pick-up roller
[1]
1. Using a cleaning pad dampened with alcohol, wipe the manual bypass tray
pick-up roller [1].
5.1.5Cleaning the manual bypass tray feed roller
[1]
1. Using a cleaning pad dampened with alcohol, wipe the manual bypass tray
feed roller [1] clean of dirt.
5.1.6Cleaning the manual bypass tray separation pad
1. Open the right door.
2. Remove the manual bypass tray separation pad.
E.3.1.5 Replacing the manual bypass tray separation pad
[1]
3. Using a cleaning pad dampened with alcohol, wipe the manual bypass tray
separation pad [1].
5.1.7Cleaning the transfer belt unit
1. Remove the transfer belt.
E.3.1.10 Replacing the transfer belt unit
[1]
2. Using a hydro-wipe (65AA-99#), wipe the transfer belt [1].
NOTE
▪ Do not wipe out with water.
▪ Do not wipe out with any solvents.
5.1.8Cleaning the PH window
1. Open the front door.
2. Remove the waste toner bottle.
E.3.1.9 Replacing the waster toner bottle
Service Manual
Y119930-3
