d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-9
[2]
[1]

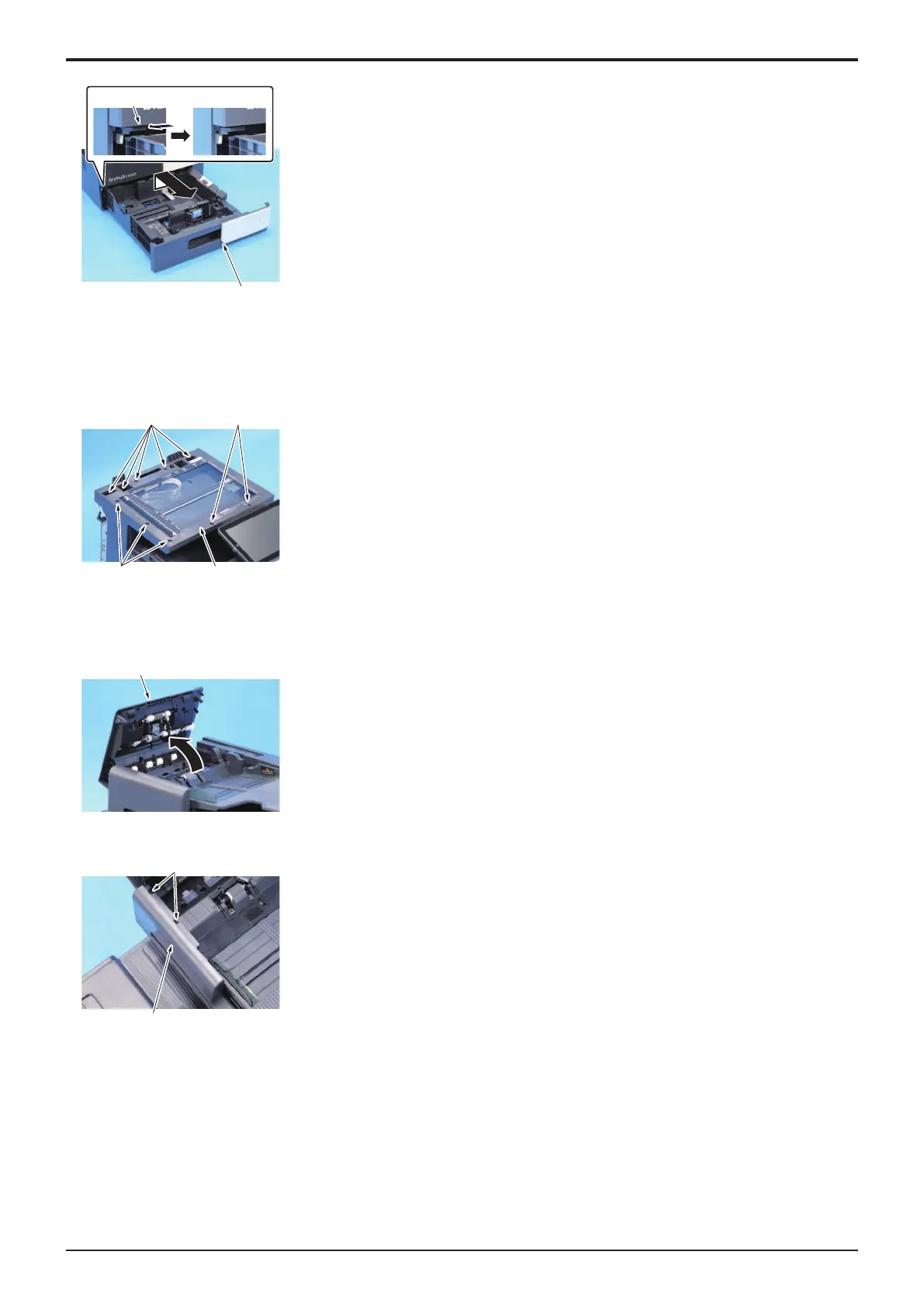

2. Slide the stopper [1].
3. Hold up the tray 1 [2] to remove it.
4. To reinstall, reverse the order of removal.
4.1.8Scanner upper cover
1. Remove the ADF.
F.4.2.9 ADF
[1] [2]
[1] [1]
2. Remove 10 screws [1], and remove the scanner upper cover [2].
3. To reinstall, reverse the order of removal.
4.1.9Front cover (ADF)
[1]
1. Open the ADF upper door [1].
[2]
[1]
2. Remove two screws [1], and remove the front cover [2].
3. To reinstall, reverse the order of removal.
Y119930-3
Service Manual
