d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-41
[1]
[2]
[1]

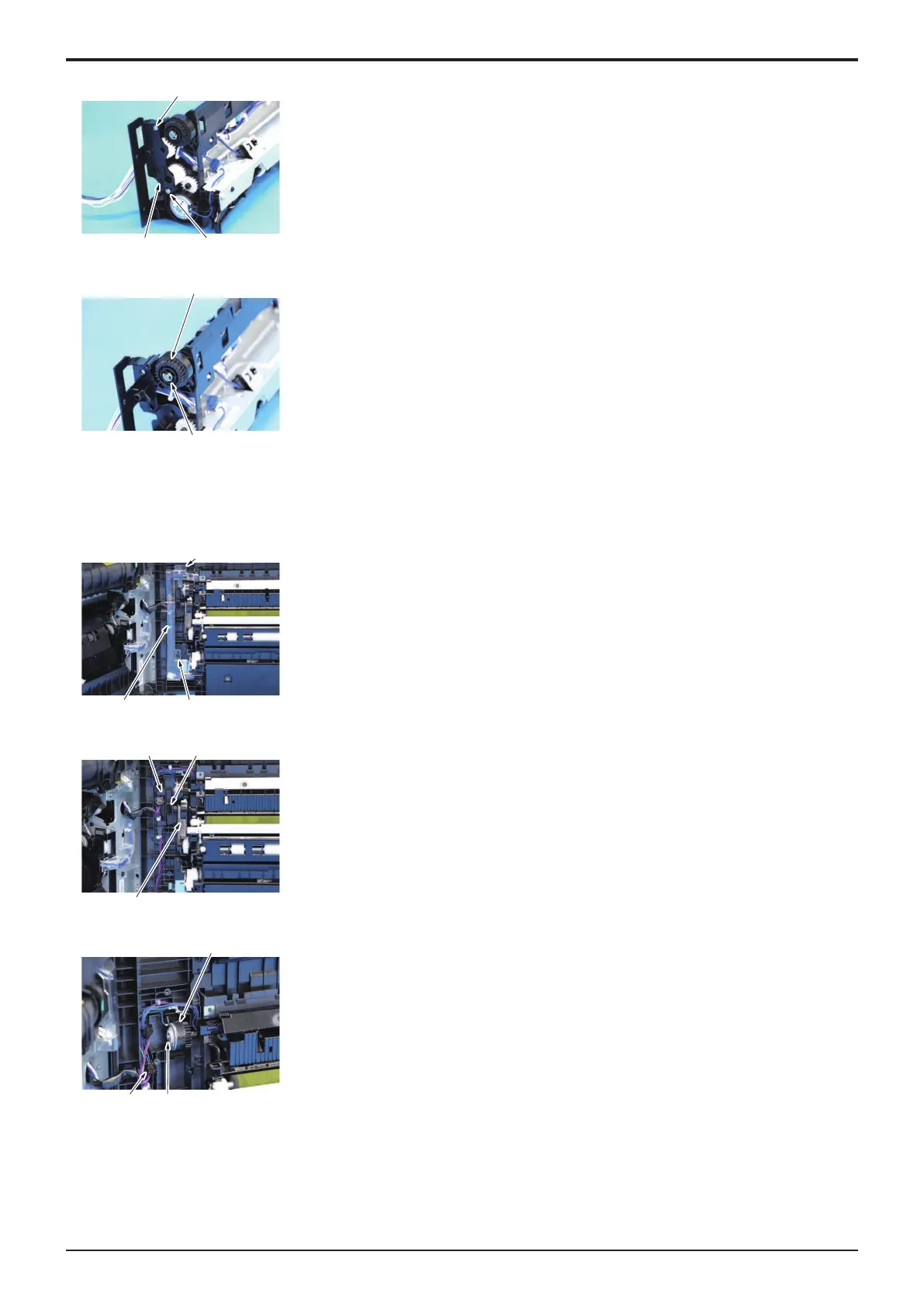

6. Remove two screws [1] and remove the gear assy [2].
[2]
[1]
7. Remove the E-ring [1], and remove the registration clutch [2].
8. To reinstall, reverse the order of removal.
4.5.4ADU transport clutch (CL5)
1. Open the right door.
[1]
[1]
[2]
2. Remove two screws [1], and remove the cover [2].
[1]
[3]
[2]
3. Remove the screw [1], and remove the harness guide [2] and the gear assy [3].
[3]
[1] [2]
4. Disconnect the connector [1].
5. Remove the E-ring [2] and remove the ADU transport clutch [3].
6. To reinstall, reverse the order of removal.
4.5.5ADU feed clutch (CL6)/ADU reversal clutch (CL7)
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
Y119930-3
