F DISASSEMBLY/REASSEMBLY > 8. EK-P08/EK-P09
F-59
8. EK-P08/EK-P09

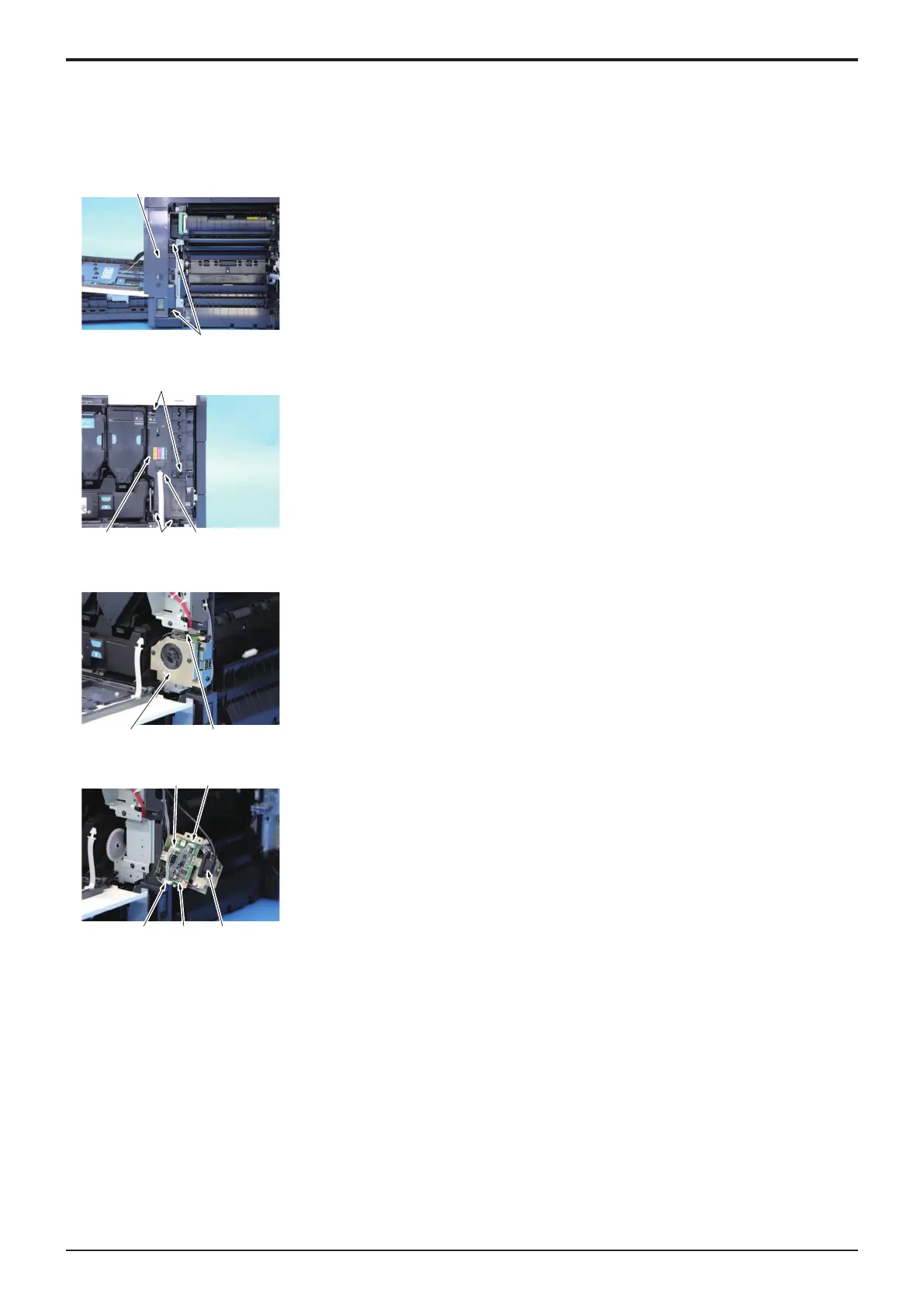

8.1USB hub board (EK-P08/EK-P09)
1. Slide out the tray 1.
2. Open the front door.
3. Open the right door.
[1]
[2]
4. Remove two screws [1], and remove the front right cover/1 [2].
[2][3] [1]
[2]
5. By twisting the ends of the stopper [1], remove it from the main body.
6. Remove four screws [2] and remove the right front cover/2 [3].
[1]
[2]
7. Remove the screw [1], and remove the USB hub board [2].
[3][4] [5]
[1][2]
8. Disconnect the connector [1], the connector [2] (EK-P09 only) and the USB
cable [3], and remove the harness from the edge cover [4].
9. Remove the USB hub board [5].
10. To reinstall, reverse the order of removal.
Y119930-3
