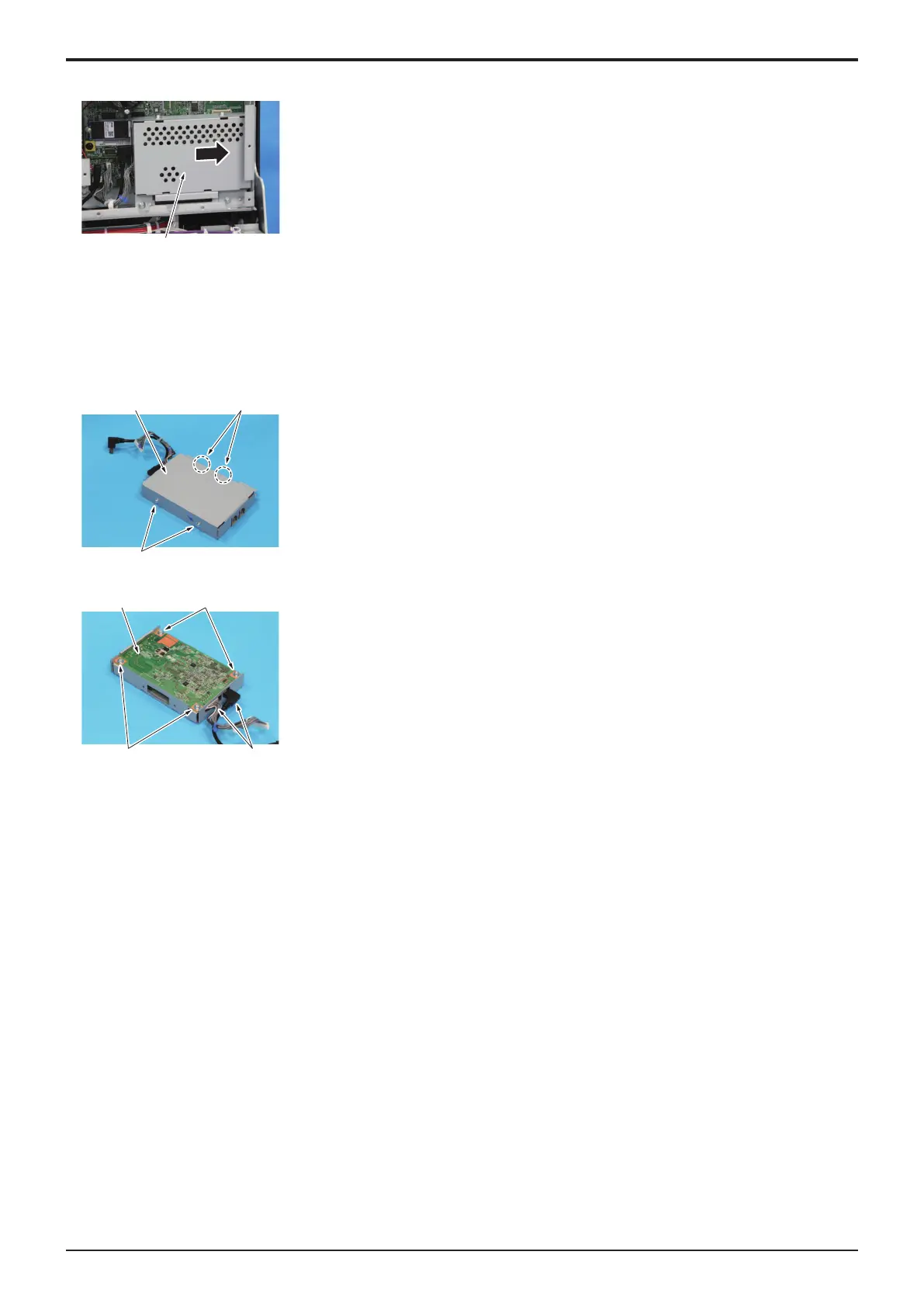

F DISASSEMBLY/REASSEMBLY > 5. Fax Kit
F-50
[1]
10. NOTE
▪ When installing the fax kit [1], arrange it to the plate side, then
tighten the screw.
11. To reinstall, reverse the order of removal.
5.2FAX board (FAXB)
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the fax kit.
F.5.1 Fax Kit
[1]
[2] [1]
3. Remove four screws [1], and remove the cover [2].
[1][2]
[3] [2]
4. Disconnect two connectors [1].
5. Remove four screws [2], and remove the FAX board [3].
6. To reinstall, reverse the order of removal.
