I SERVICE MODE > 14. Test Mode
I-75
d-Color MF4003/MF3303
Sample
• SINGLE
• HYPER
• Gradation

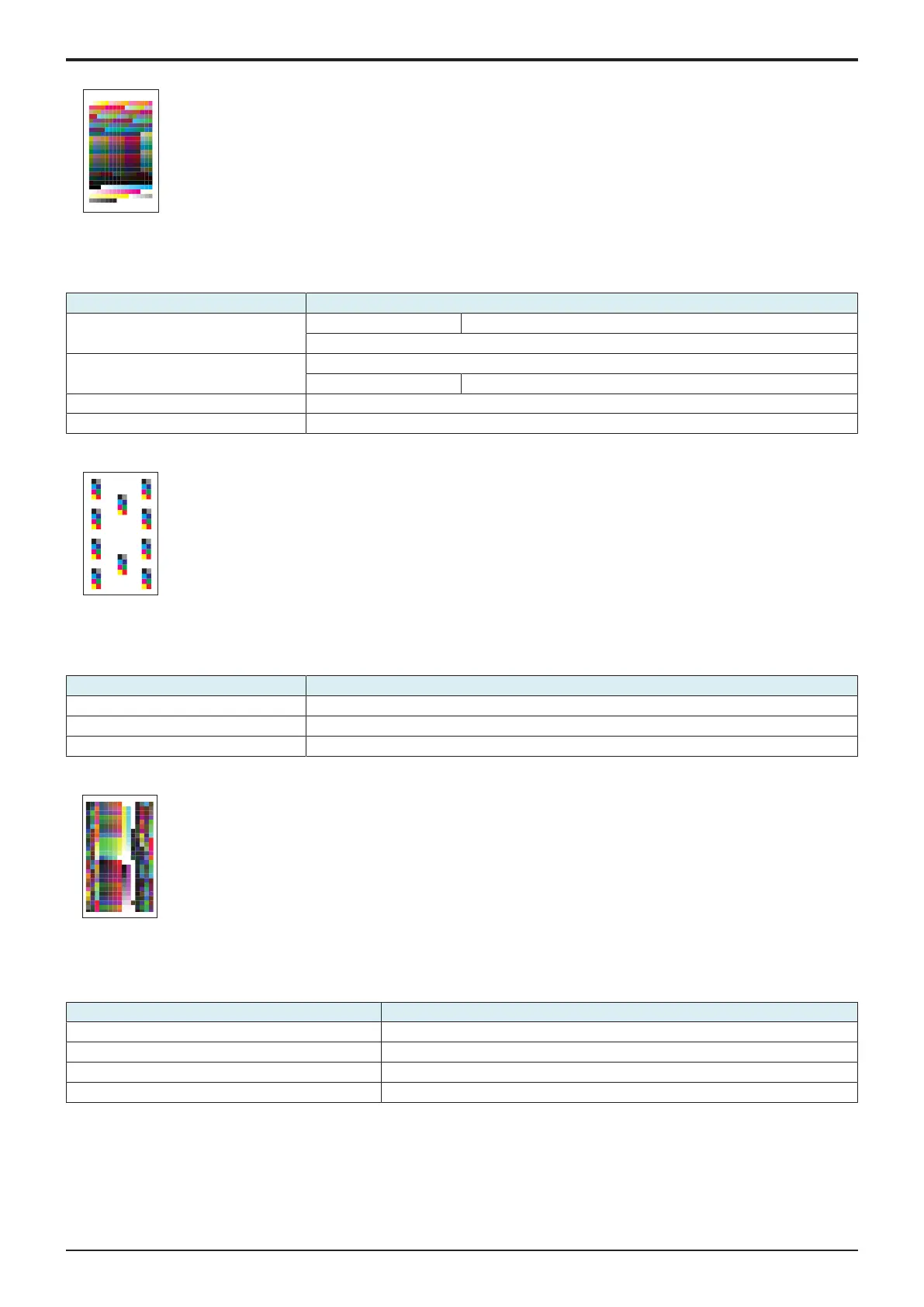

14.1.68 Color Solid Pattern
• To produce an 8-color solid pattern.
• Used for checking color reproducibility and uneven density of each color.
Setting item Setting value
Output operation mode SINGLE Copies (1 to 999)
MULTI
Screen pattern setting FEET
HYPER Gradation, Resolution, Error diffusion
1-Sided/2-sided print mode 1-sided
Density 0 to 255
Sample
• SINGLE
• HYPER
• Gradation
• Density: 255
14.1.7CMM pattern
• To produce a CMM (Color Management Module) pattern.
• Used to check color difference depending on the places where output is made.
Setting item Setting value
Copies 1 (always)
Screen pattern setting Error diffusion, Gradation, Resolution
Angle 0 degrees, 90 degrees, 180 degrees, 270 degrees
Sample
• Error diffusion
• Angle: 270 degrees
14.2Paper Passage Test
• To test the printing operation in paper passage test.
• Use to check the printing operation in paper passage test from each paper source.
Setting item Setting value
Pattern Printing Yes, No
Select Tray Tray 1, Tray 2, Tray 3, Tray 4, Manual
Paper Size A4, 8
1
/
2
x 11, Post, A6 card, 4 x 6
Paper Type Plain Paper, Plain Paper+, Thick1, Thick 1+, Thick 2, Enve.
NOTE
▪ [Paper Size] is selectable only when [Manual] is selected in Select Tray.
▪ The paper type is only [Plain paper] when [Tray 2] or [Tray 3] is selected.
<Procedure>
1. Select a setting item.
2. Press the Start key to start the paper passage test.
3. Pressing the Stop key will stop operation.
Y119930-3
