d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-16
[1]

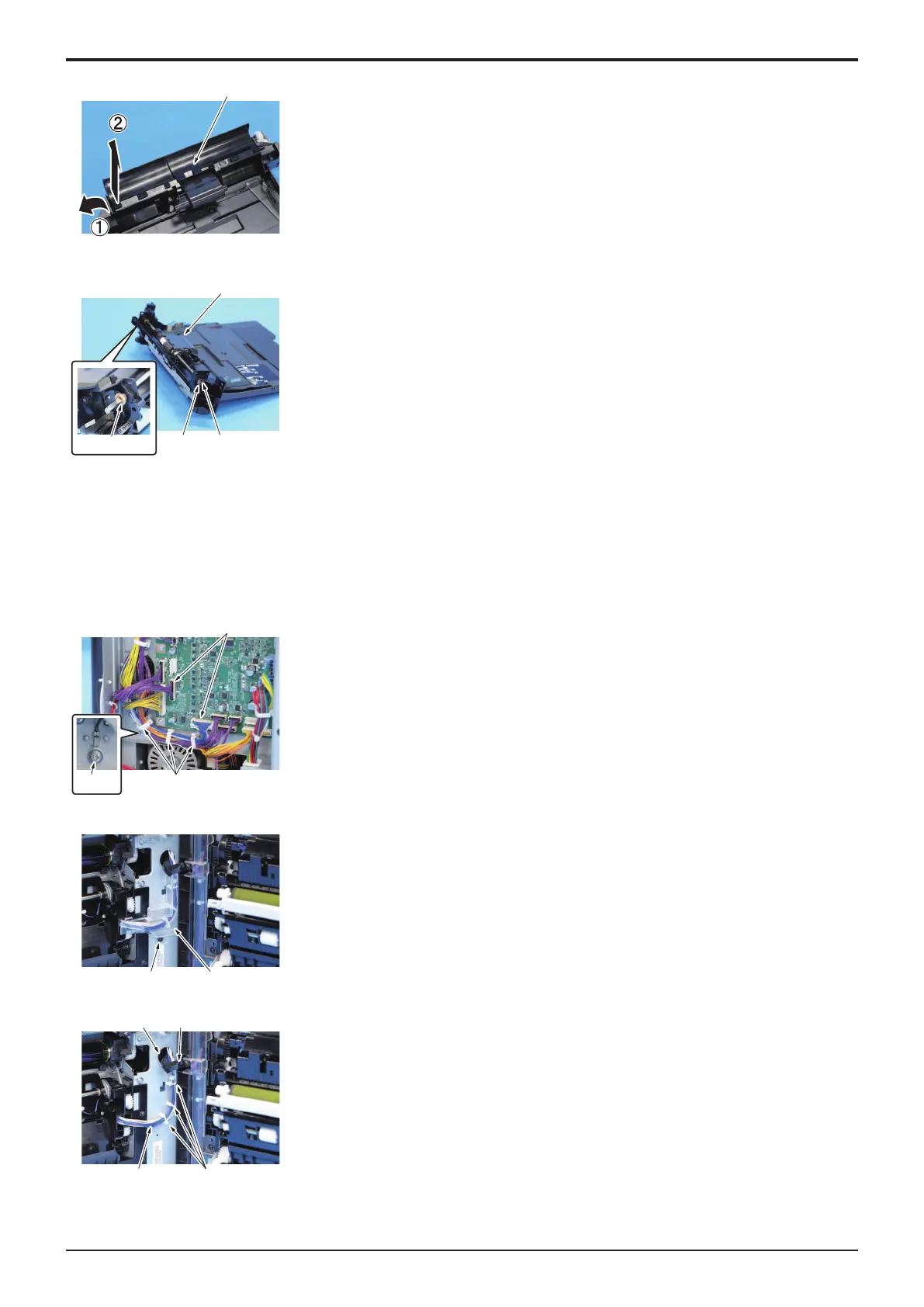

5. Remove the cover [1].
[2] [2] [1]
[3]
6. Remove the E-ring [1] and two bushings [2].
7. Remove the manual bypass tray roller unit [3].
8. To reinstall, reverse the order of removal.
4.2.6Paper feed unit
1. Slide out the tray 1.
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Open the right door.
4. Remove the IDC sensor assy.
F.4.7.1 IDC sensor (IDCS1)
[2]
[3]
[1]
5. Remove the harness from three wire saddles [1], and disconnect two
connectors [2].
6. Remove the screw [3].
[1]
[2]
7. Remove the screw [1], and remove the cover [2].
[4]
[3]
[1][2]
8. Pull the harness [1] out of the hole [2].
9. Remove the harness from three wire saddles [3].
10. Pull the harness [4] out of the hole [2].
Service Manual
Y119930-3
