5. AU-201S

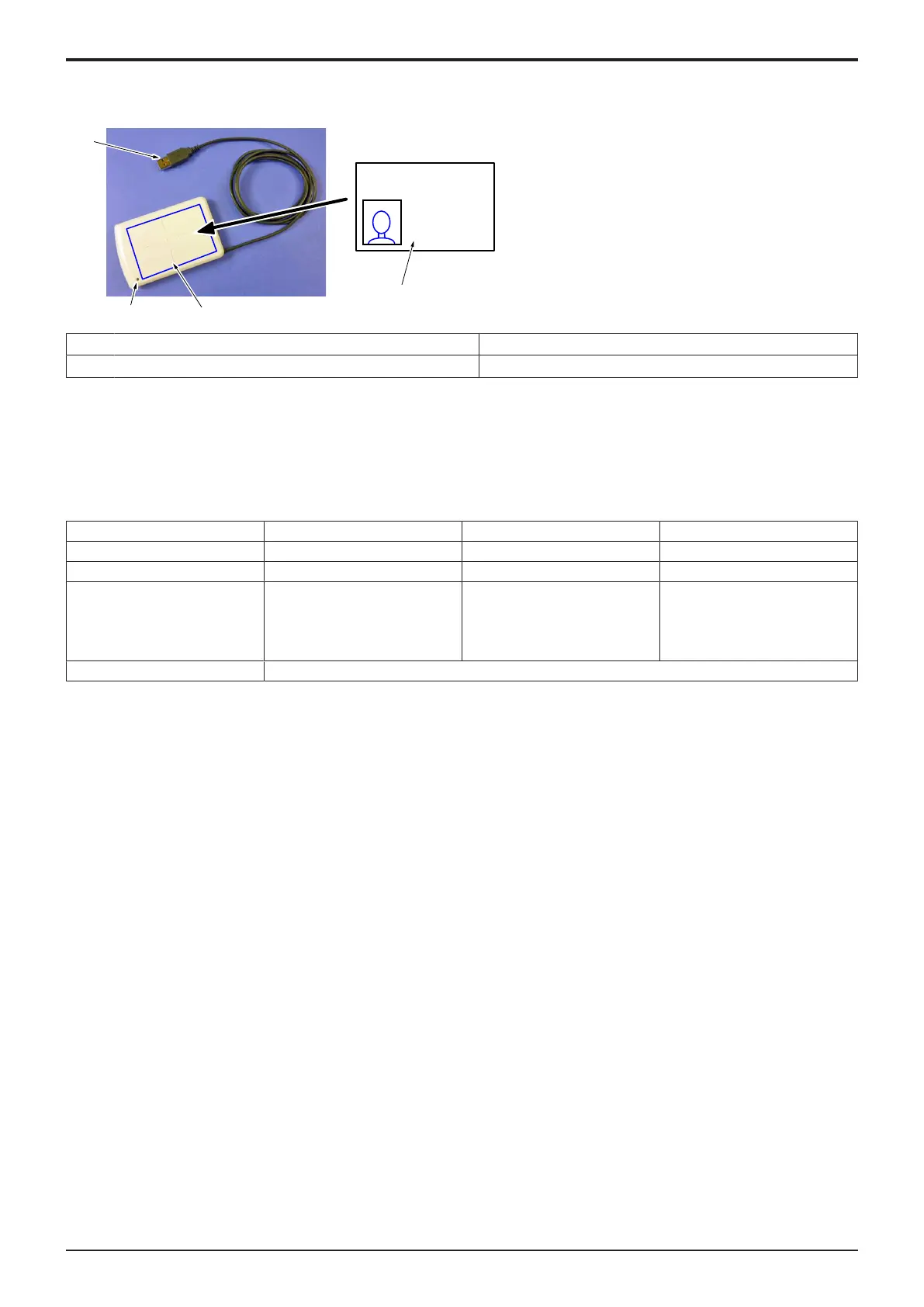

5.1Configuration
ABCDE_Co.
Abcde Fgdhi
[3]
[1]
[2]
[4]
[1] Non-contact IC card [2] Read-write area
[3] Status LED [4] USB connector (Type-A)
5.2Operation
• Place the non-contact IC card on the authentication device to read and write data.
• Displays the operational status via LEDs on the unit.
• Yellow-green light glows: Normal operation.
• Red light or orange light is on: Unit is experiencing an issue.
5.3Specifications
Communication Type TypeA/Mifare TypeB FeliCa
Communication Speed 106 Kbps 106 kbps, 212 kbps, 424 kbps 212 kbps, 424 kbps
Authentication Function Mifare Crypt - DES, AES
Compatible IC cards • Non-contact IC cards
compliant with ISO14443
Type A
• Non-contact IC cards
compliant with TN2 (SEE55R)
Non-contact IC cards compliant
with ISO14443 Type B
FeliCa card
Inter-terminal Communication Inter-terminal communication compliant with ISO18092 (communication speed: 106, 212, and 424 kbps)
