d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 6. PF-P20/PF-P21
F-56

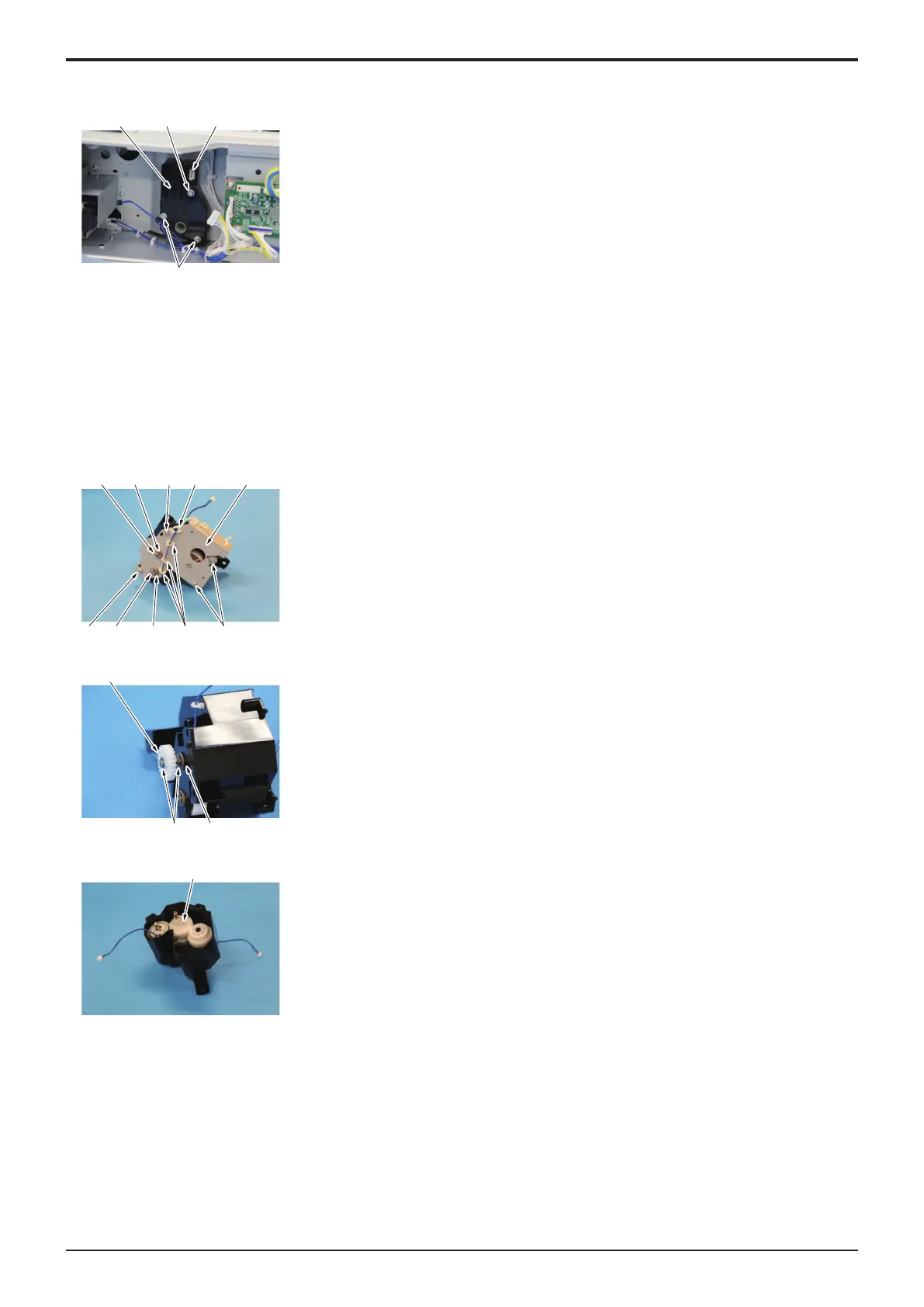

3. Remove the drive assy.
F.6.8 Drive assy (PF-P20/PF-P21)
[2]
[2][3] [1]
4. Disconnect the connector [1].
5. Remove three screws [2], and remove the lift-up motor [3].
6. To reinstall, reverse the order of removal.
6.10Paper feed clutch (CL1) (PF-P20/PF-P21)
1. Remove the rear cover.
F.6.1 Rear cover (PF-P20)
F.6.2 Rear cover (PF-P21)
2. Remove the drive motor.
F.6.7 Drive motor (M1) (PF-P20/PF-P21)
3. Remove the drive assy.
F.6.8 Drive assy (PF-P20/PF-P21)
[1] [5][4][3][5]
[4][3] [5] [2] [6]
4. Remove the harness from three wire saddles [1] and the edge cover [2].
5. Remove two E-rings [3], two bushings [4] and four screws [5], and remove the
drive plate [6].
[1] [3]
[2]
6. Remove two E-rings [1], the gear [2] and the bushing [3].
[1]
7. Remove the paper feed clutch assy [1].
Service Manual
Y119930-3
