d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-32
[1]
[3]
[3]
[2]
[4]
[3]

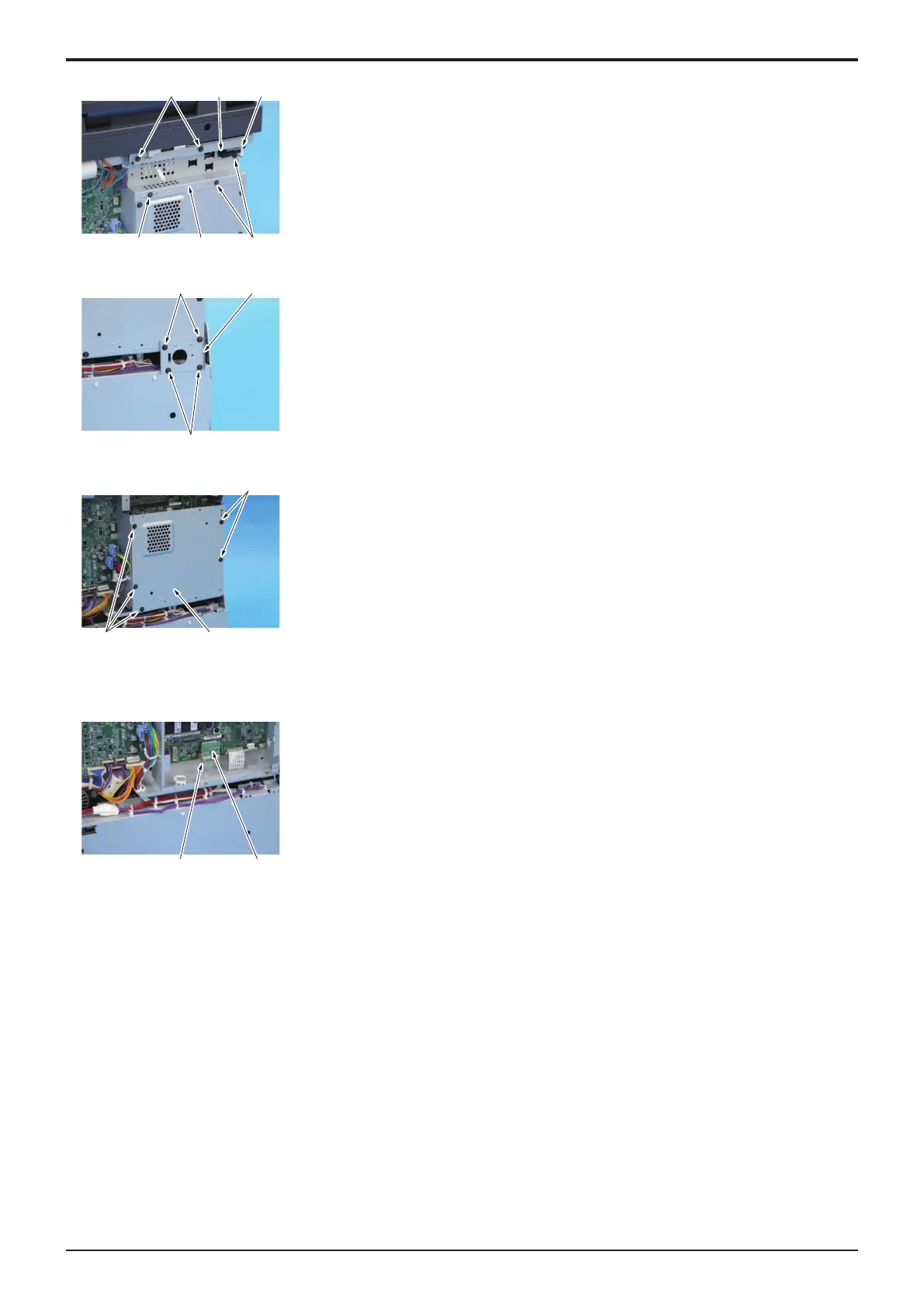

4. Remove the cable from the edge cover [1], and disconnect the connector [2].
5. Remove five screws [3], and remove the plate [4].
[2]
[1]
[1]
6. Remove four screws [1], and remove the plate [2].
[1]
[1]
[2]
7. Remove five screws [1], and remove the plate [2].
8. Remove the fax kit.
F.5.1 Fax Kit
[2][1]
9. Remove the screw [1], and remove the TPM board [2].
10. To reinstall, reverse the order of removal.
4.3.7High voltage unit (HVPS)
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
4. Remove the exit cover.
F.4.1.4 Exit cover
Service Manual
Y119930-3
