F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-10

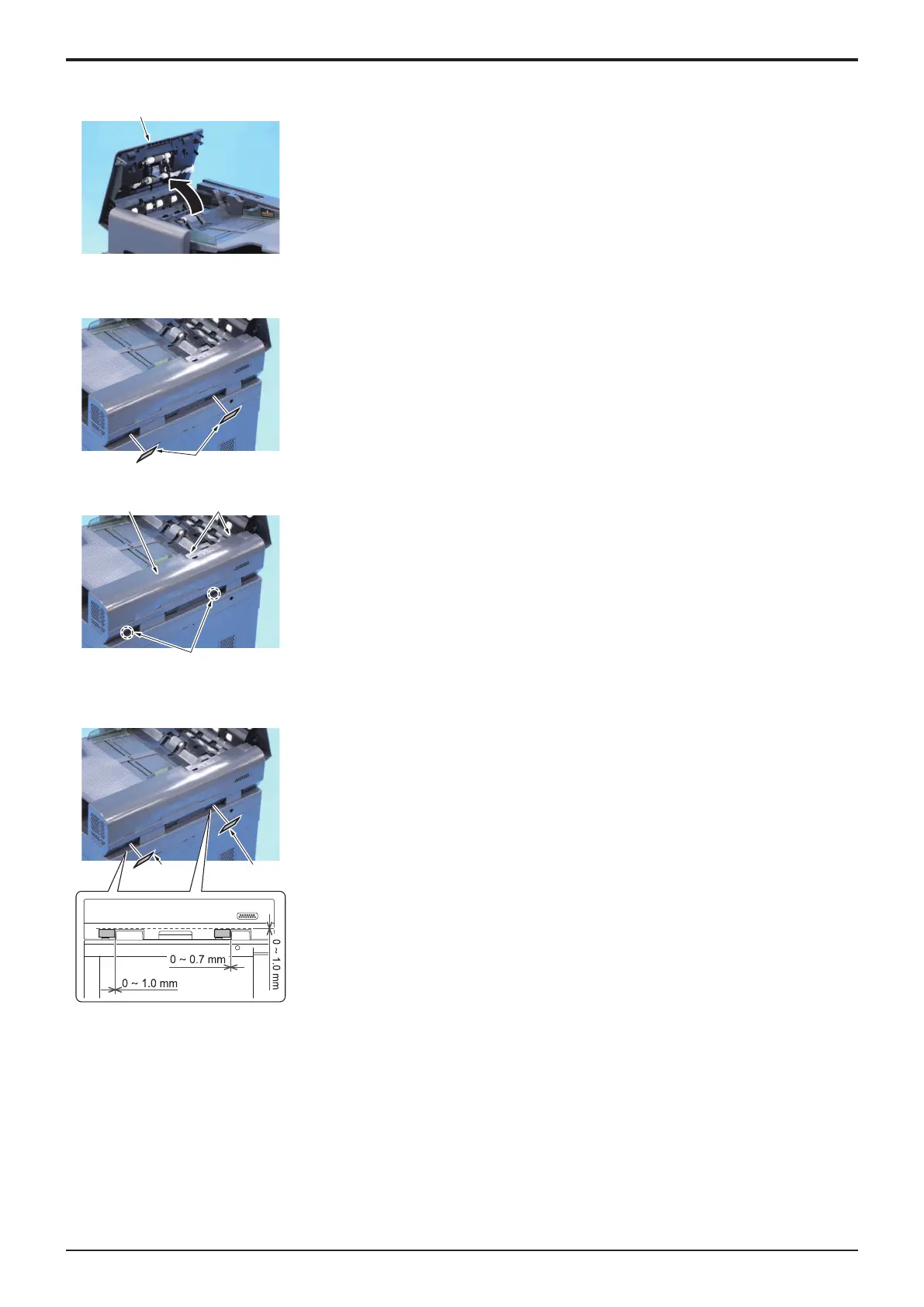

4.1.10Rear cover (ADF)
[1]
1. Open the ADF upper door [1].
[1]
2. Peel off the film [1].
[1][3]
[2]
3. Remove the two screws [1], release two tabs [2], and remove the rear cover
[3].
4. To reinstall, reverse the order of removal.
[1][1]
5. NOTE
▪ When mounting the rear cover, place an order including the film (part
No. AVGR30158 G).
▪ After mounting the rear cover, stick the film [1] on the position shown
in the illustration.
4.2Units
4.2.1Manual bypass tray unit
1. Open the right door.
Service Manual
Y119930-3
