Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303

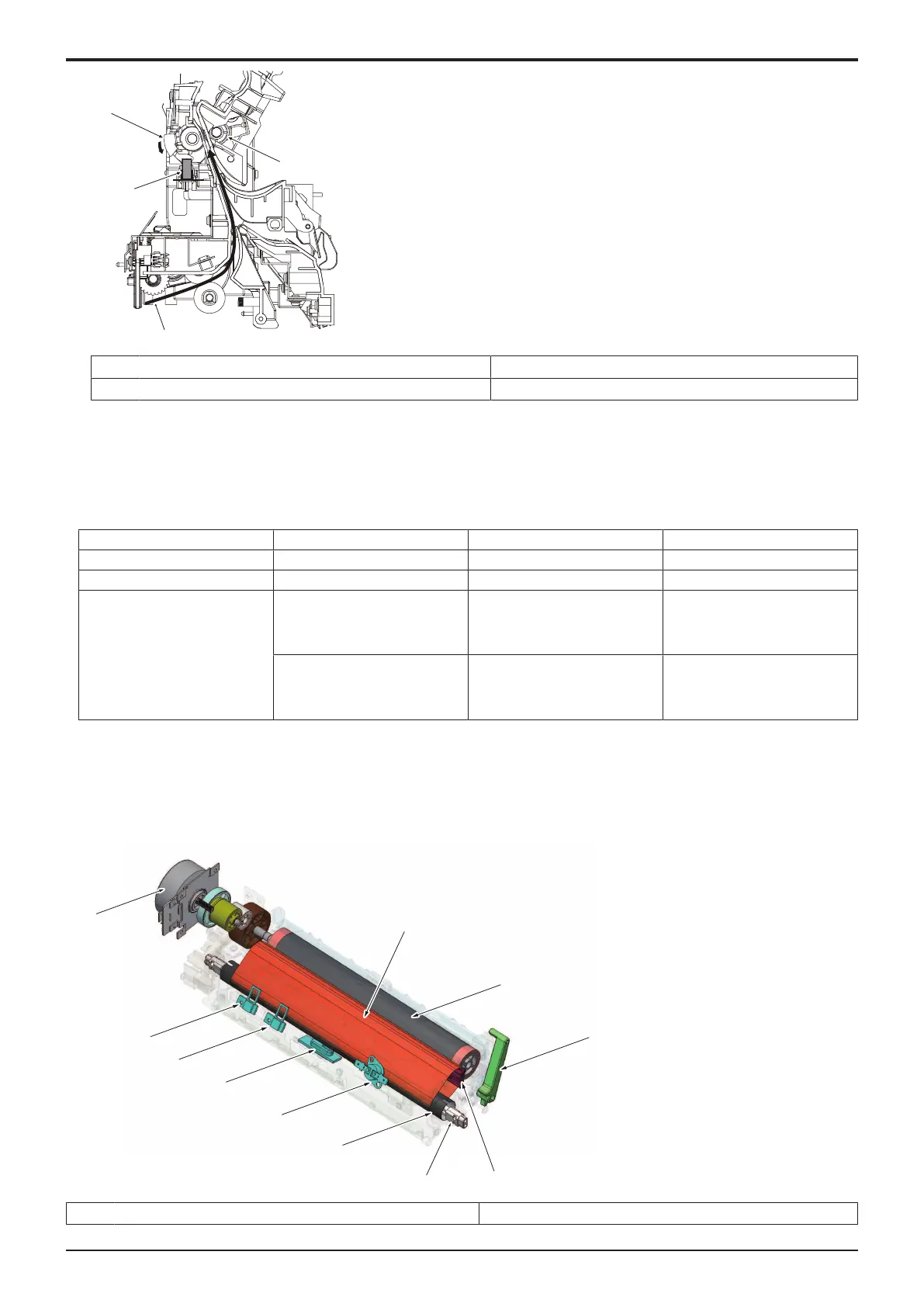

P THEORY OF OPERATION > 1. d-Color MF4003/MF3303
P-45
[3]
[4]
[1]
[2]
[1] Registration roller [2] Paper tray (tray 1)
[3] Registration sensor (PS9) [4] Actuator
(2)Paper size error detection control
• To prevent incorrect printed pages, the size of the paper being conveyed is detected using the registration sensor or the PC transport
sensor of the optional paper feed unit.
• The length of the paper is detected based on the value calculated using the period of time that begins when the sensor is activated and
ends when it is deactivated for each paper source.
• For the paper feed unit, even if the PC transport sensor does not detect a paper size error, the downstream registration sensor makes an
error check again.
Paper source Paper length detection sensor Starting point Ending point
Manual bypass tray Registration sensor (PS9) Registration clutch (CL4): ON Registration sensor (PS9): OFF
Tray 1 Registration sensor (PS9) Registration clutch (CL4): ON Registration sensor (PS9): OFF
Tray 2/3 (PF-P20/P21) Tray 2 transport sensor (PS6/2)
Tray 3 transport sensor (PS6/3)
Tray 2 transport sensor (PS6/2):
ON
Tray 3 transport sensor (PS6/3):
ON
Tray 2 transport sensor (PS6/2):
OFF
Tray 3 transport sensor (PS6/3):
OFF
Registration sensor (PS9) Registration clutch (CL4): ON Tray 2 transport sensor (PS6/2):
OFF
Tray 3 transport sensor (PS6/3):
OFF
(3)Temperature/humidity sensor
• The temperature/humidity sensor detects temperature and humidity inside the main body.
• The detected data are used for image stabilization control, ATVC control, and transfer output control.
1.13FUSING SECTION
1.13.1Configuration
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[1] Fusing belt [2] Pressure roller
Y119930-3
Service Manual
