Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-20

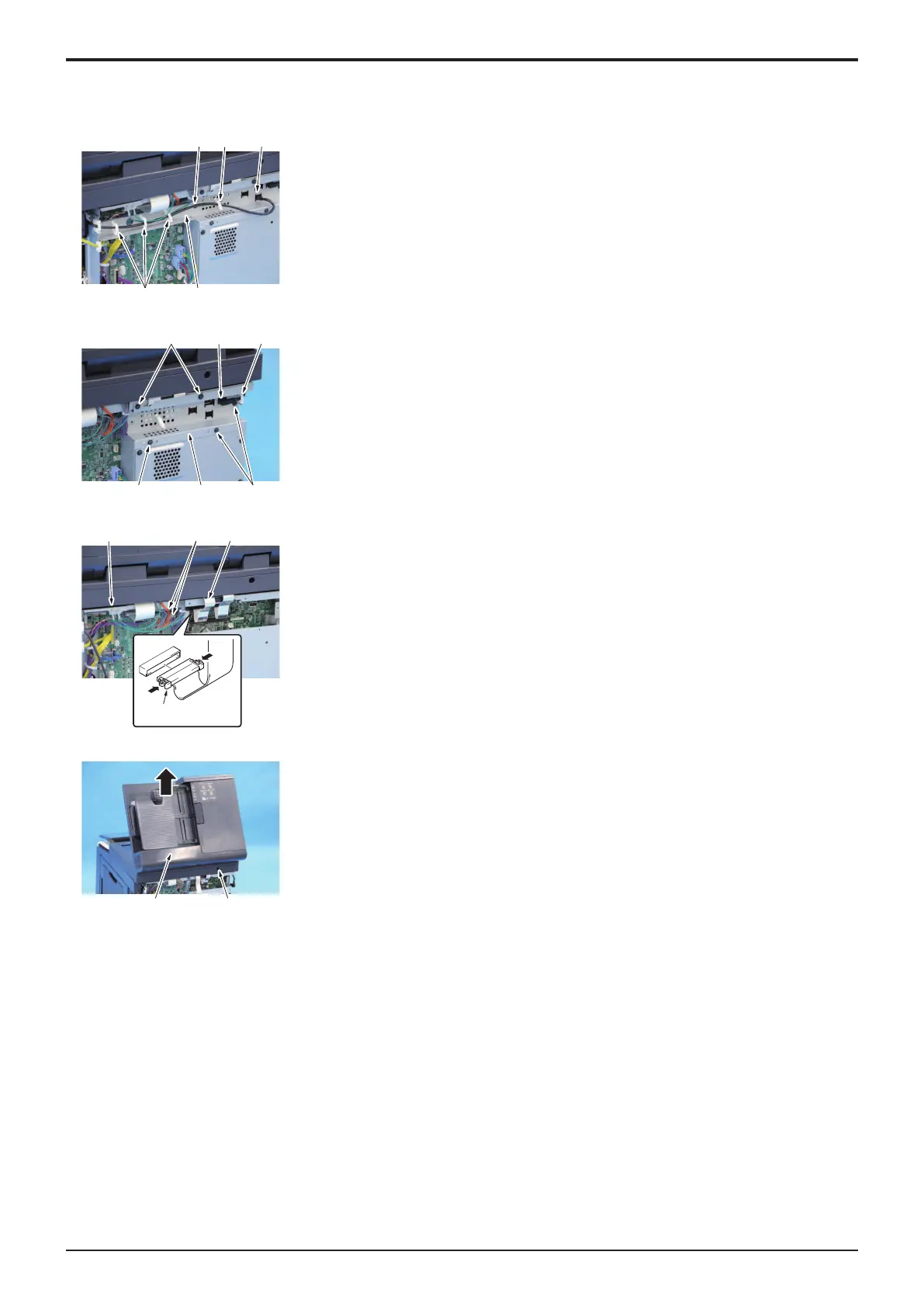

4.2.9ADF
1. Remove the rear cover.
F.4.1.3 Rear cover
[1] [4]
[1]
[2][3]
2. Remove the cable and ground wire from four wire saddles [1], and disconnect
the connector [2].
3. Remove the screw [3], and remove the plate [4].
[1]
[3]
[3]
[2]
[4]
[3]
4. Remove the cable from the edge cover [1], and disconnect the connector [2].
5. Remove five screws [3], and remove the plate [4].
[3]
[1]
[2]
[4]
6. Remove the screw [1], and disconnect two connectors [2] and the flat cable [3].
NOTE
▪ When removing the flat cable [3], unlock the connector [4], and
remove the cable together with the connector.
[2][1]
7. Remove the screw [2] while lifting up the ADF [1], and remove the ADF [1].
8. To reinstall, reverse the order of removal.
4.2.10CIS module
1. Remove the rear cover.
F.4.1.3 Rear cover
2. Remove the ADF.
F.4.2.9 ADF
3. Remove the scanner upper cover.
F.4.1.8 Scanner upper cover
Service Manual
Y119930-3
