d-Color MF4003/MF3303
I SERVICE MODE > 14. Test Mode
I-73

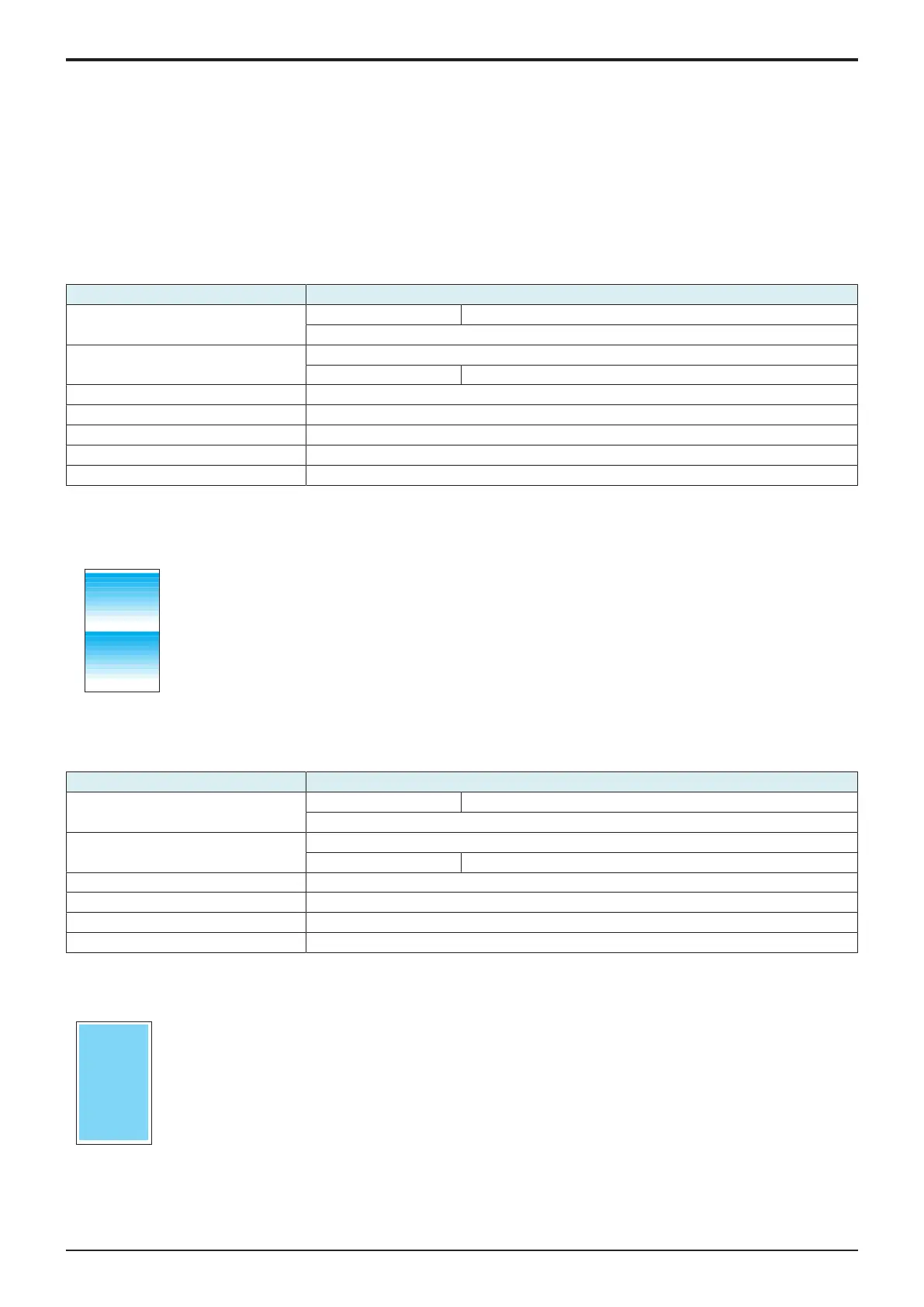

14. Test Mode
14.1Test Pattern
• Output the test pattern to check the image on the printer side.
• The machine searches through the paper sources in the order of tray 2, tray 3, and tray 1 for paper of the maximum size for printing.
<Input procedure>
1. Touch [Test Mode] to display the test mode menu.
2. Touch the desired test pattern key.
3. Set up the desired functions and press the Start key.
14.1.1Gradation Pattern
• To produce a gradation pattern.
• Used for checking gradation reproducibility.
Setting item Setting value
Output operation mode SINGLE Copies (1 to 999)
MULTI
Screen pattern setting FEET
HYPER Gradation, Resolution, Error diffusion
1-Sided/2-sided print mode 1-Sided, 2-sided1 (print on both front and back sides), 2-sided2 (print on back side only)
Resolution 600dpi, 1200dpi
Single color gradation setting 12 gradations, 24 gradations, 256 gradations
Printable area Full Bleed, Front Half
Color mode Black(1PC), Cyan, Magenta, Yellow, Black(4PC), CMYK, 8 Color, 4 Color
NOTE
▪ [Front Half] is selectable only for 8-color/one-side printing.
▪ When 24 Gradations or 256 Gradations is selected, [8 Color] or [4 Color] is not selectable in color mode.
Sample
• SINGLE
• HYPER
• Gradation
• Full Bleed
• Cyan
14.1.2Halftone Pattern
• To produce a solid halftone pattern.
• Used for checking uneven density and pitch noise.
Setting item Setting value
Output operation mode SINGLE Copies (1 to 999)
MULTI
Screen pattern setting FEET
HYPER Gradation, Resolution, Error diffusion
1-Sided/2-sided print mode 1-Sided, 2-sided1 (print on both front and back sides), 2-sided2 (print on back side only)
Printable area Full Bleed, Front Half
Color mode Black(1PC), Cyan, Magenta, Yellow, Black(4PC), Red, Green, Blue, CMYK, 3 Color, 4 Color, MIX
Density 0 to 255
NOTE
▪ [Front Half] is selectable only for one-side printing.
Sample
• SINGLE
• HYPER
• Gradation
• Full Bleed
• Cyan
• Density: 128
14.1.3Lattice Pattern
• To produce a lattice pattern.
• Used for checking fine line reproducibility and uneven density.
• A reverse pattern is also used to check for fine line reproducibility of white letters on a solid background.
Y119930-3
Service Manual
