I SERVICE MODE > 13. State Confirmation
I-70
Check item
Various USB Check USB Device
Keyboard (*)
USB Memory (*)
CIS Board Check (Front Side) I/P Image Bus Check (Front Side)
Line RAM Comparison (Front Side)
CIS Board Check (Back Side) I/P Image Bus Check (Back Side)
Line RAM Comparison (Back Side)
ADF Board Check MINET communication check
FAX Board Check (*) Line 1
CPU Board Check S800 Compress/Decompression
S800 Output image path
LAN-IF Ping Test (*)
PCIe Check PCIe device check
• *: The item can be diagnosed with Self-diag. (Individual) only.
13.12.2Self-diag. (Full)
• To diagnose all items together, those are diagnosed individually with “Self-diag. (Individual)”, and identify the area where trouble occurred
and the parts need to be replaced.
• When a trouble code is displayed, by performing “Self-diag. (Full)”, troubles on the hardware device can be diagnosed.
• The diagnosis result is displayed as [OK] or [NG], and if [NG] is detected, the [Error Code] key will be displayed on the [Full Self Diagnostic]
screen. Touch the [Error Code] key to display the [Error Code List] screen.

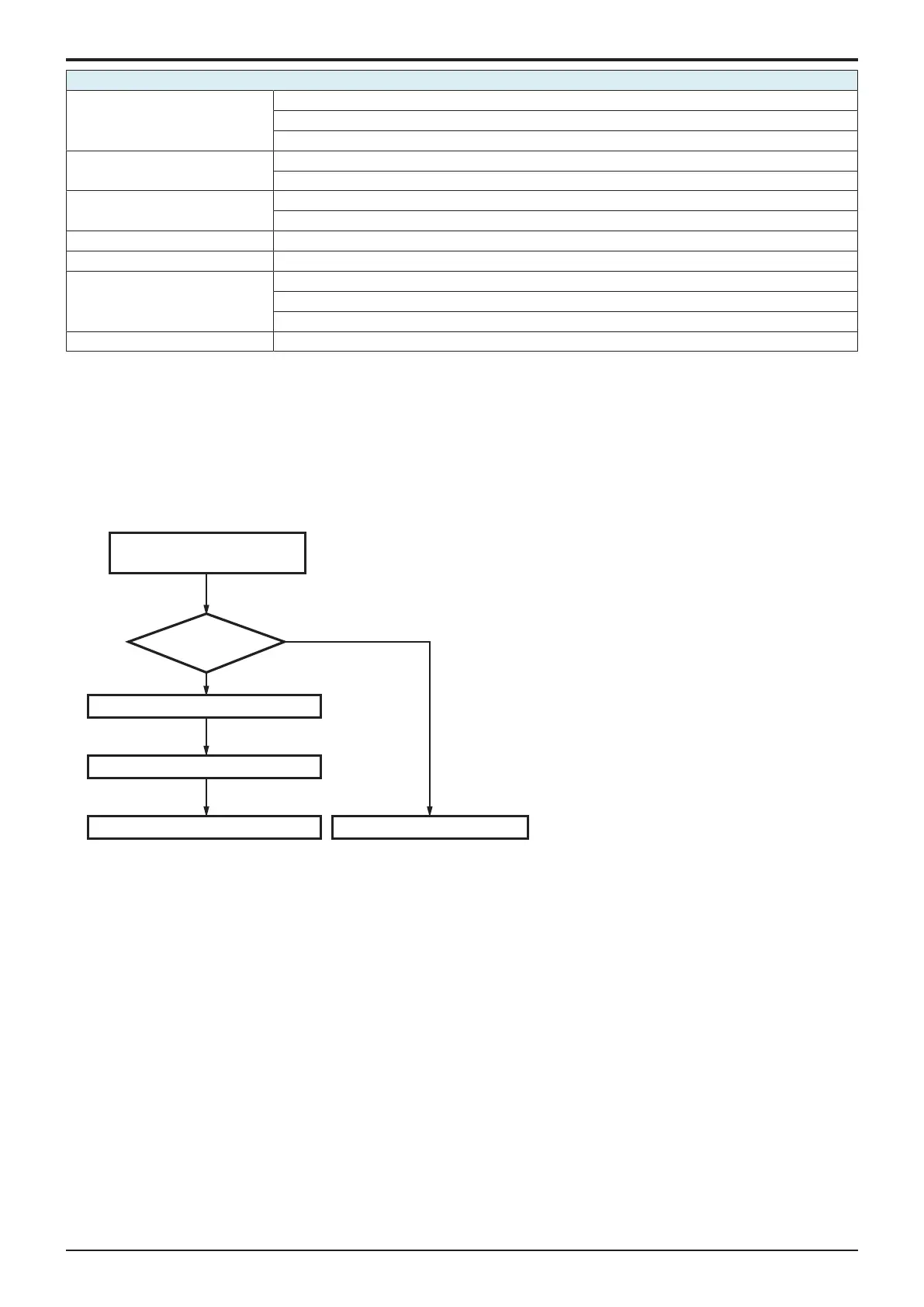

Self-diag. (Full) Flow
Start Self-diag. (Full)
Finish self diagnosisTroubleshooting against each error code
Display Error Code key
Display error codes
Diagnosis result
OK
NG
NOTE
▪ Only displays the detected error codes.
Diagnosis procedure
1. Display the [Self-diag. (Full)] screen.
• Display by selecting [Service Mode] -> [State Confirmation] -> [Self-diag. (Full)].
• Turn the main power switch on while pressing the power key. After a short beep sound is made once, release the power key and wait
to display the Self-diag. (Full) screen.
2. Press the Start key to start the check procedure.
3. The result of the diagnosis is displayed for every item. (OK/NG)
NOTE
▪ If a trouble code is detected during executing the Self-diag. (Full), the trouble screen will be displayed, and the Self-diag.
(Full) will be interrupted. When the trouble screen is displayed, turn OFF the main power switch to finish the Self-diag. (Full).
Then, turn ON the main power switch while pressing the power key to restart the Self-diag. (Full).
4. After completing the Self-diag. (Full), load A4/A4S paper in the manual bypass tray, the [Printing] key will appear in the top area of the
screen. If the self-diagnosis result report is required, touch the [Printing] key to print out the “Self-diagnosis result report.”
NOTE
▪ If there is no paper loaded on the manual bypass tray, the [Printing] key will not appear. Also, if any paper with a size other
than A4/A4S is loaded, the [Printing] key will not appear.
▪ The “Self-diagnosis result report.” can be printed out after completing the Self-diag. (Full). (Printable even if NG is displayed)
5. If [OK] is displayed for all diagnosis items, finish the Self-diag. (Full).
• If starts from the Service Mode, touch [END].
