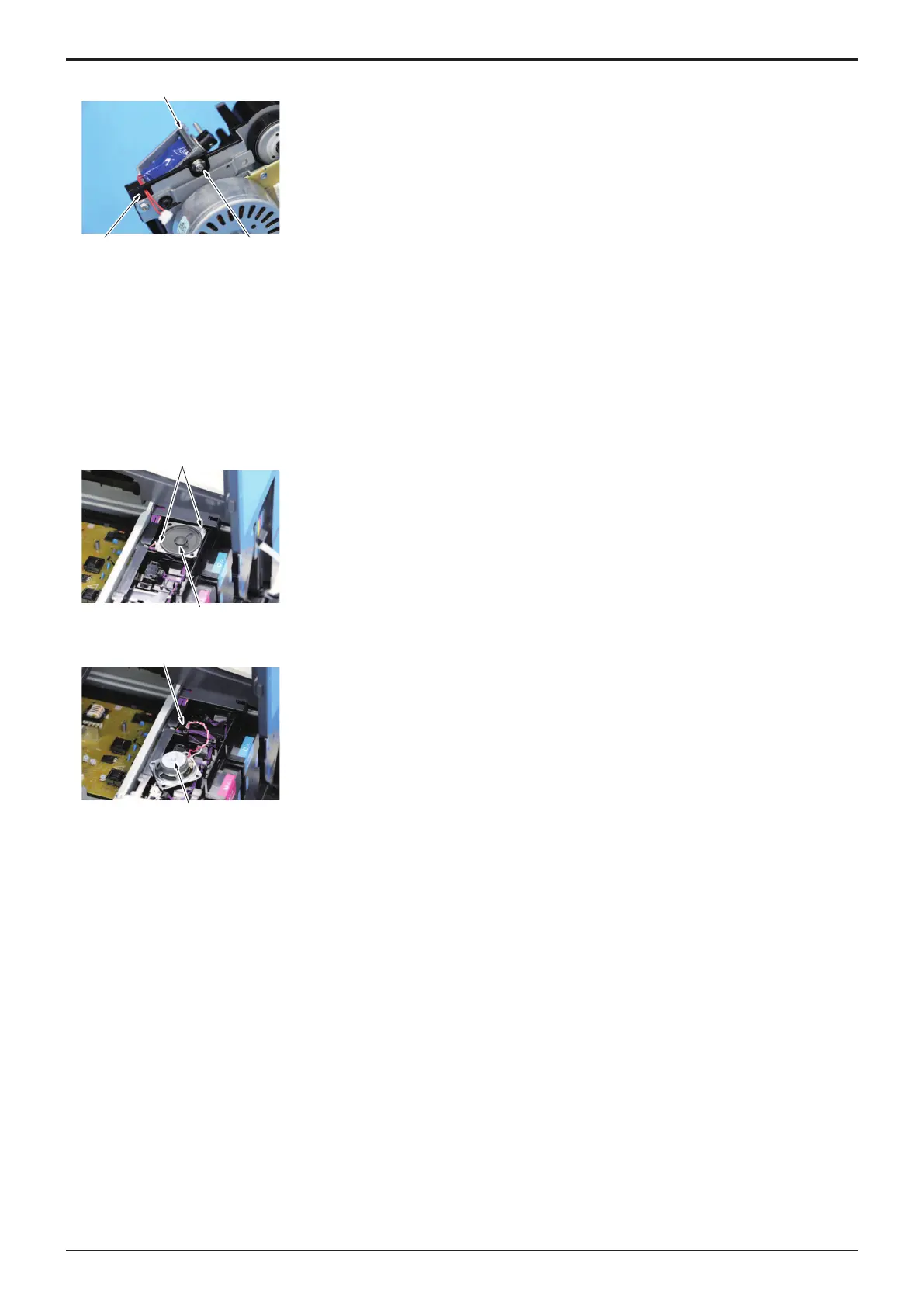

Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-48
[3]
[1] [2]
8. Remove the harness from the harness guide [1].
9. Remove the screw [2] and remove the exit path switch solenoid [3].
10. To reinstall, reverse the order of removal.
4.7.4Fax speaker (SP1)
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
4. Remove the exit cover.
F.4.1.4 Exit cover
[1]
[2]
5. Remove two screws [1], and slide out the fax speaker [2].
[1]
[2]
6. Disconnect the connector [1], and remove the fax speaker [2].
7. To reinstall, reverse the order of removal.
Service Manual
Y119930-3
