d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-6
[1]
[2]

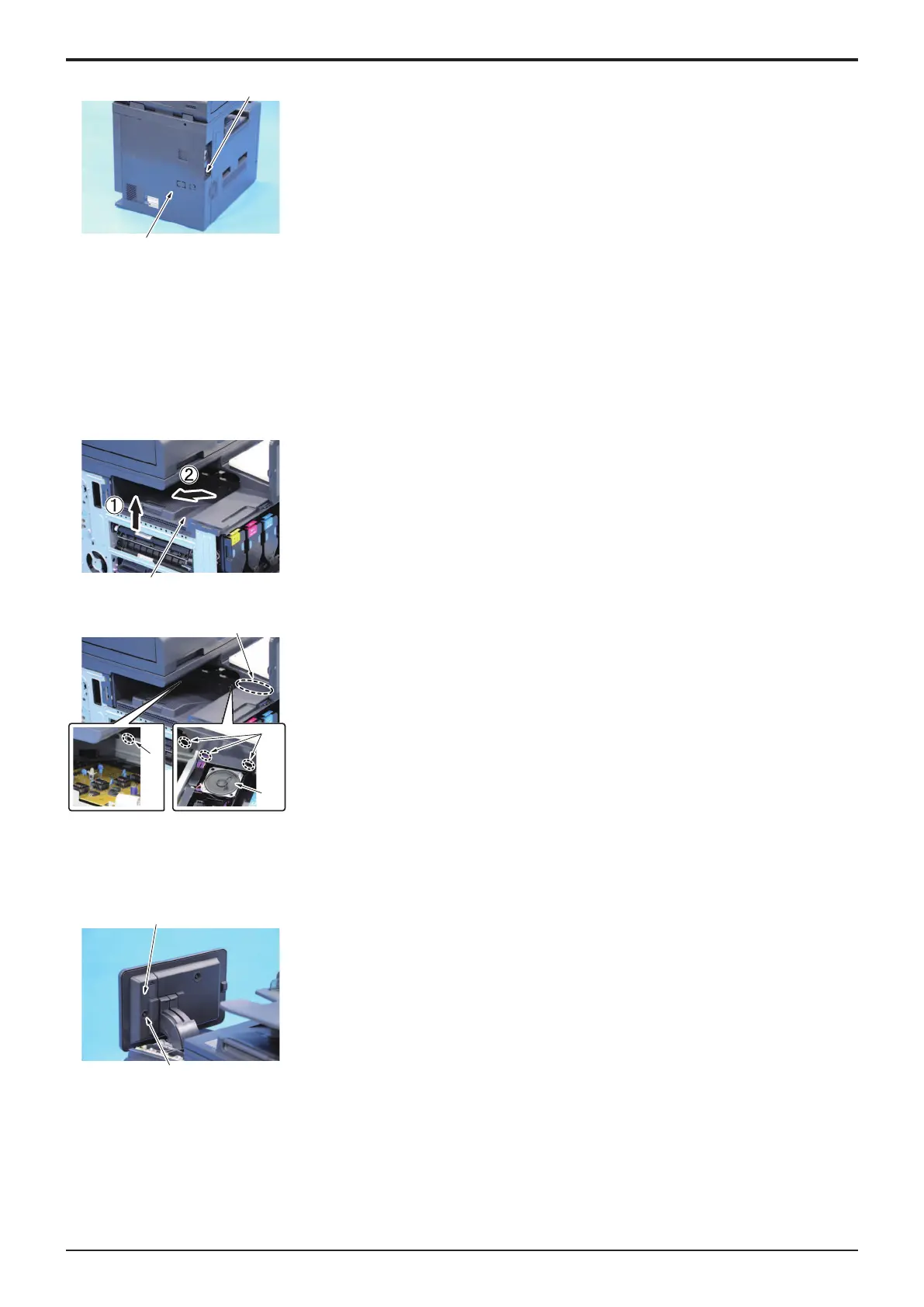

2. Remove the screw [1], and remove the rear cover [2].
3. To reinstall, reverse the order of removal.
4.1.4Exit cover
1. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the left cover.
F.4.1.2 Left cover
[1]
4. Remove the exit cover [1].
[2]
[1]
[1]
[3]
5. NOTE
▪ When mounting the exit cover, make sure that tabs of the exit cover
are hooked firmly into the four holes [1].
▪ When mounting the exit cover, pay attention not to damage the
speaker [2] by the tabs.
▪ If the clearance [3] is wide, the tabs may not be hooked. Check the
state of the tabs.
6. To reinstall, reverse the order of removal.
4.1.5Control panel unit
1. Remove the control panel cover.
F.4.1.6 Control panel cover
[1]
[2]
2. Remove the screw [1], and remove the cover [2].
Service Manual
Y119930-3
