d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-7
[2]
[1]

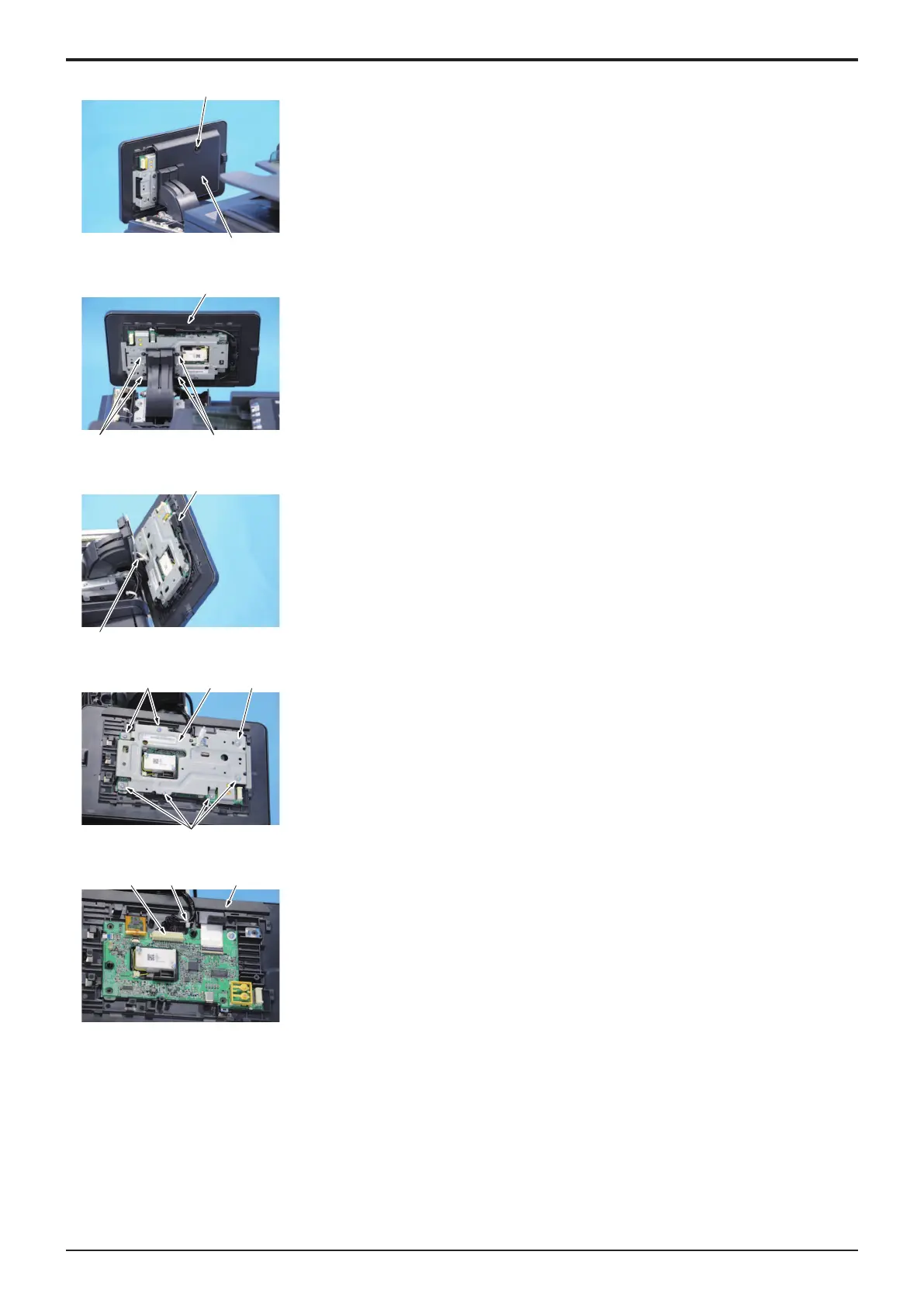

3. Remove the screw [1], and remove the cover [2].
[2]
[1] [1]
4. Remove four screws [1] and remove the control panel unit [2].
[2]
[1]
5. Remove the cable from the wire saddle [1].
6. Disconnect the cable [2], then remove the cable from the cable guide.
[2]
[1]
[1] [1]
7. Remove seven screws [1], and remove the plate [2].
[2][1] [3]
8. Disconnect the connector [1], cut the cable tie [2], and remove the control
panel unit [3].
NOTE
▪ When reinstalling the control panel unit, use the new cable tie.
9. To reinstall, reverse the order of removal.
Y119930-3
Service Manual
