F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-8
d-Color MF4003/MF3303

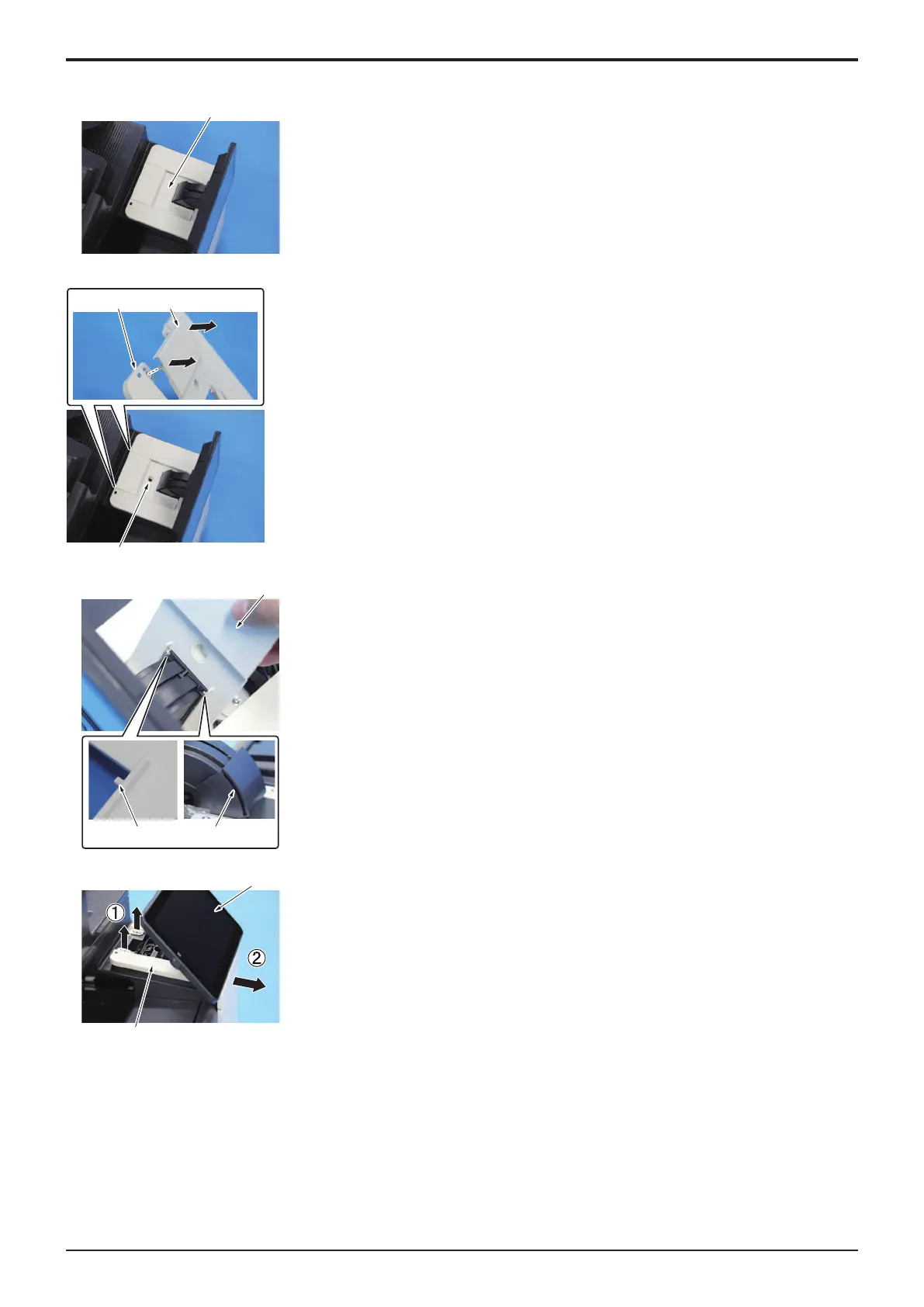

4.1.6Control panel cover
[1]
1. Remove the cap [1].
[3][2]
[1]
2. Remove the screw [1].
3. Remove the cover [3] from the control panel cover [2].
[1]
[3][2]
4. Raise the protrusion [2] of the cover [1] along the groove [3], and remove the
cover [1].
[2]
[1]
5. Incline the control panel [1] to about 45 degrees.
6. Remove the control panel cover [2].
7. To reinstall, reverse the order of removal.
4.1.7Tray1
1. Slide out the tray 1 and unload paper from it.
