d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 11. CU-202 (Only for Europe)
F-67
[5]
[4]
[1]
[2]
[3]

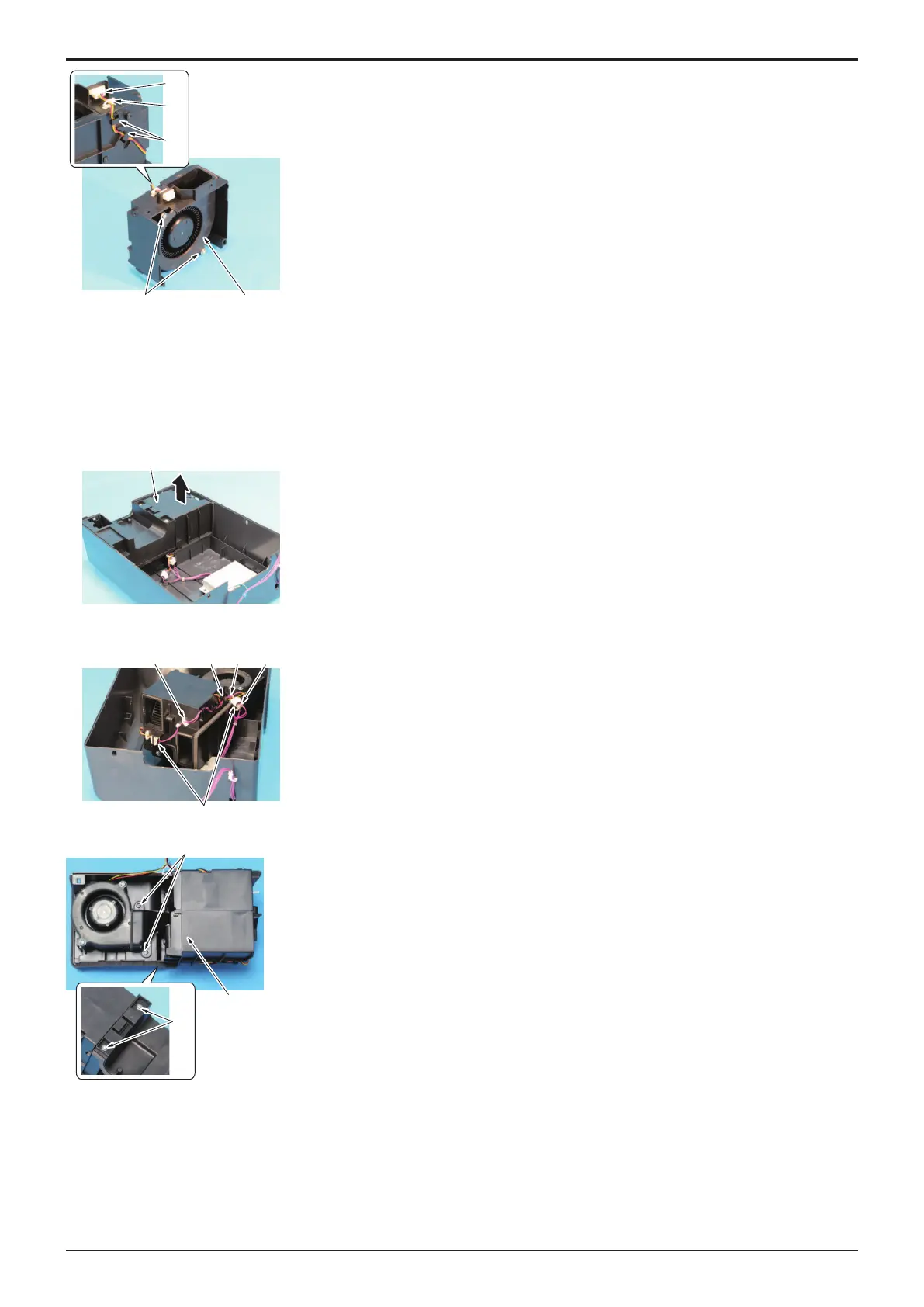

9. Disconnect the connector [1], and remove the harness from the wire saddle [2]
and two harness guides [3].
10. Remove two screws [4], and remove the exhaust fan/1 [5].
11. To reinstall, reverse the order of removal.
11.5Exhaust fan/2 (FM2)
1. Remove the clean unit.
F.11.1 Clean unit (CU-202)
2. Remove the UFP filter.
F.11.2 UFP filter
[1]
3. Remove the exhaust fan assy [1].
[1][2] [3]
[1]
[3]
4. Disconnect three connectors [1], and remove the harness from the harness
guide [2] and two wire saddles [3].
[1]
[2]
[1]
5. Remove four screws [1], and remove the exhaust fan/1/2 assy [2]
Y119930-3
