Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 11. CU-202 (Only for Europe)
F-66
[1]

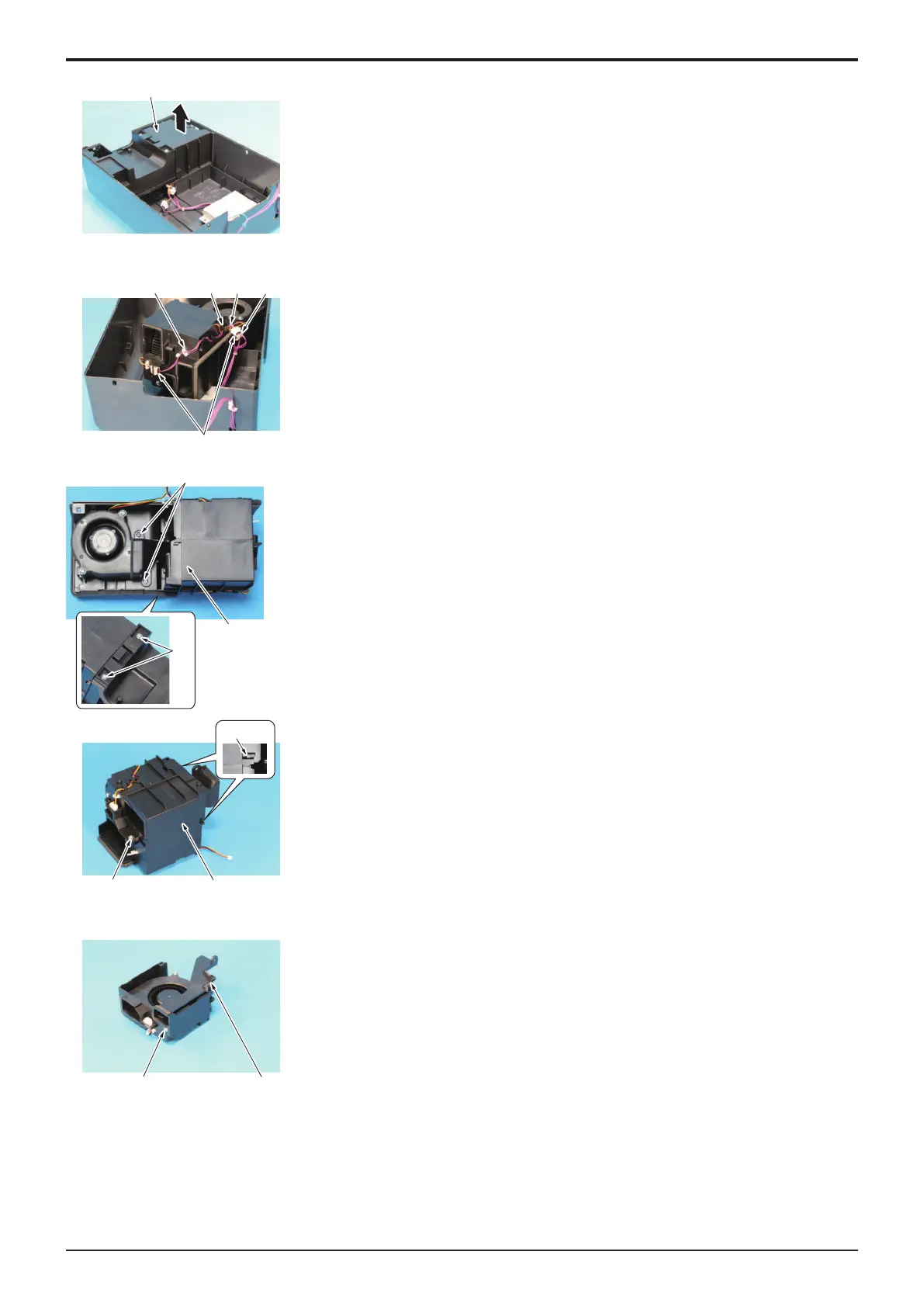

3. Remove the exhaust fan assy [1].
[1][2] [3]
[1]
[3]
4. Disconnect three connectors [1], and remove the harness from the harness
guide [2] and two wire saddles [3].
[1]
[2]
[1]
5. Remove four screws [1], and remove the exhaust fan/1/2 assy [2]
[1]
[3]
[2]
6. Remove the screw [1], and unlock two tabs [2].
7. Remove the exhaust fan/1 assy [3].
[1]
[2]
8. Remove the screw [1], remove the duct [2].
Service Manual
Y119930-3
