Olivetti d-Color MF4003 User Manual

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 4. d-Color MF4003/MF3303
F-23

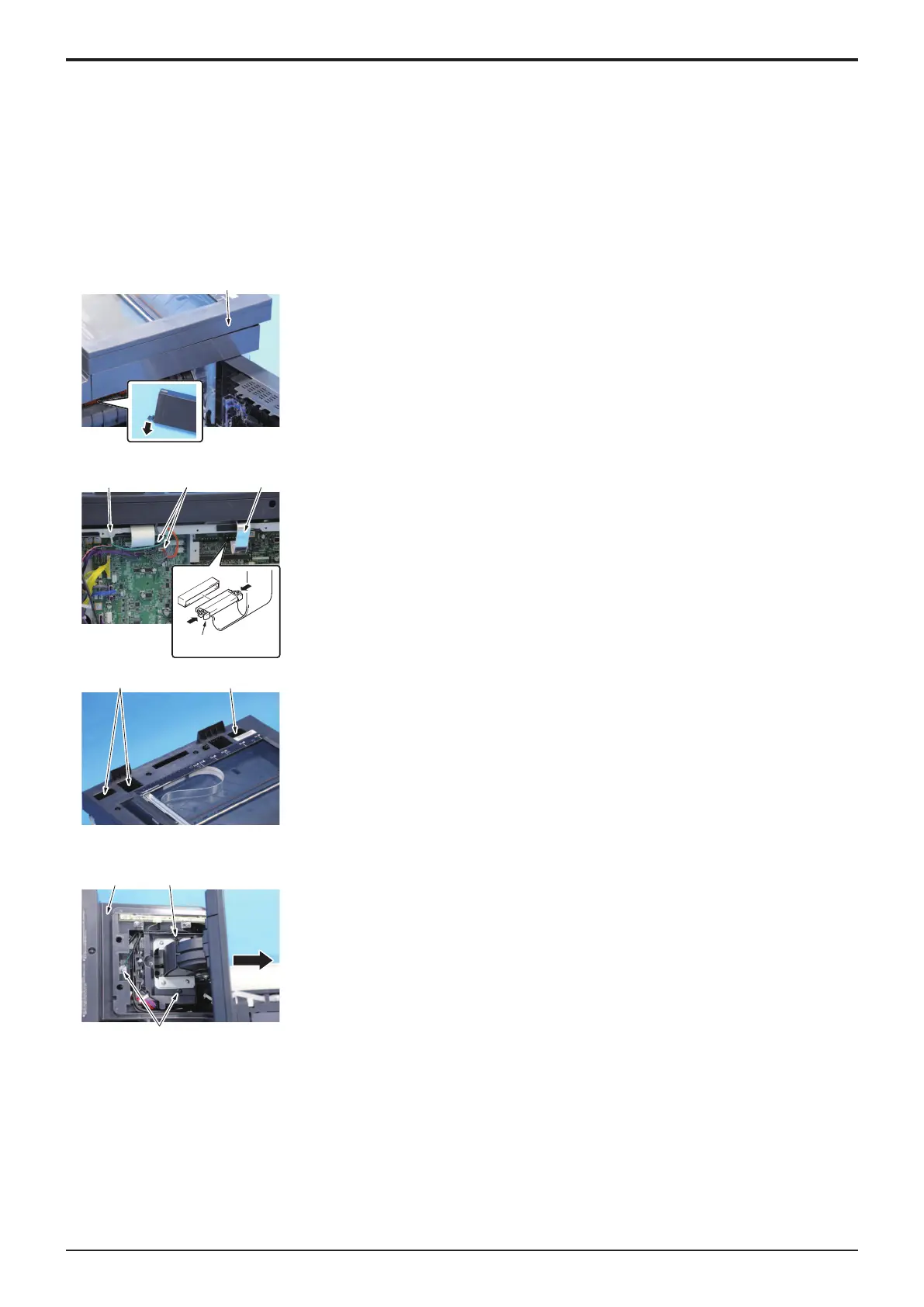

2. Remove the rear cover.
F.4.1.3 Rear cover
3. Remove the ADF.
F.4.2.9 ADF
4. Remove the toner filter assy.
E.3.1.8 Replacing the toner filter
5. Remove the left cover.
F.4.1.2 Left cover
6. Remove the exit cover.
F.4.1.4 Exit cover
7. Remove the control panel cover.
F.4.1.6 Control panel cover
8. Open the right door.
[1]
9. Remove the cover [1].
[3]
[1]
[2]
[4]
10. Remove the screw [1], and disconnect two connectors [2] and the flat cable [3].
NOTE
▪ When removing the flat cable [3], unlock the connector [4], and
remove the cable together with the connector.
[1] [1]
11. Remove three screws [1].
[2] [1]
[1]
12. Remove three screws [1], and slide the cover [2].
Y119930-3
Service Manual
