d-Color MF4003/MF3303

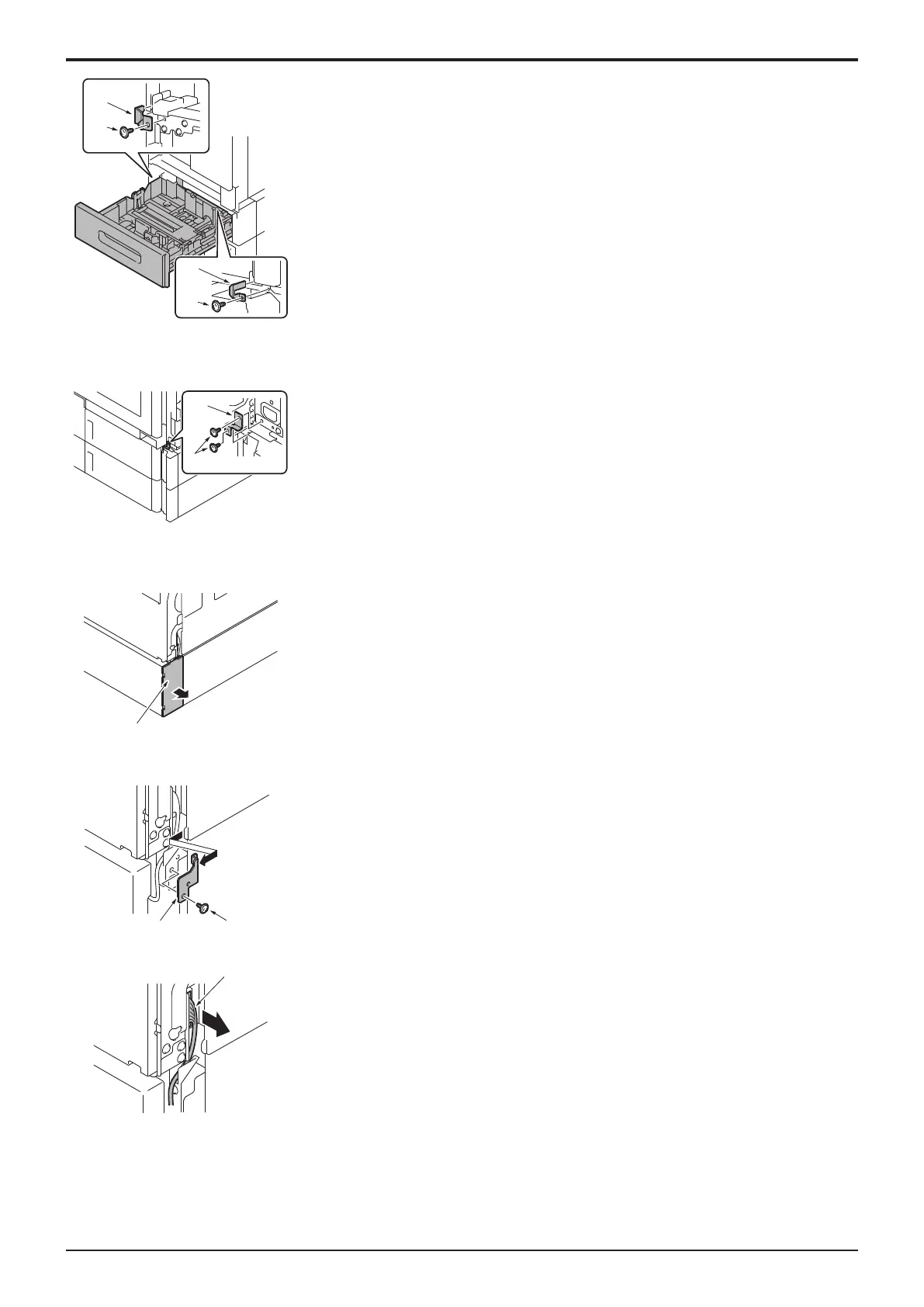

F DISASSEMBLY/REASSEMBLY > 6. PF-P20/PF-P21
F-52
[1]
[2]
[1]
[2]
4.
Remove two screws [1], and remove the two plates [2].
5.
Slide the tray 2 back in.
6.
Install the tray 1.
[2]
[1]
7.
Remove two screws [1], and remove the plate [2].
[1]
8.
Remove the cover [1].
[2]
[1]
9.
Remove the screw [1], and remove the plate [2].
[1]
10.
Disconnect the connector [1].
Service Manual
Y119930-3
149
151
Table of Contents
d-Color MF4003/MF3303 - Version 2.0
1
Table of Contents
3
A SAFETY AND IMPORTANT WARNING ITEMS
23
1. IMPORTANT NOTICE
24
2. DESCRIPTION ITEMS FOR DANGER, WARNING AND CAUTION
25
2.1 Description items in this Service Manual
25
2.2 Description items for safety and important warning items
25
3. SAFETY WARNINGS
26
3.1 MODIFICATIONS NOT AUTHORIZED BY OLIVETTI
26
3.1.1 Actions requiring special attention
26
3.2 POWER PLUG SELECTION
27
3.2.1 Power Cord Set or Power Plug
27
3.3 CHECKPOINTS WHEN PERFORMING ON-SITE SERVICE
29
3.3.1 Power Supply
29
3.3.2 Installation Requirements
33
3.3.3 After Service
35
3.4 Used Batteries Precautions
41
3.4.1 ALL Areas
41
3.4.2 Germany
41
3.4.3 France
41
3.4.4 Denmark
41
3.4.5 Finland, Sweden
41
3.4.6 Norway
41
3.5 Laser Safety
42
3.5.1 Laser Safety
42
3.5.2 Internal Laser Radiation
42
3.5.3 Laser Safety Label
43
3.5.4 Laser Warning Label
43
3.5.5 PRECAUTIONS FOR HANDLING THE LASER EQUIPMENT
44
4. WARNING INDICATIONS ON THE MACHINE
45
4.1 Warning indications inside the machine
45
4.2 Warning indications on the boards
46
5. MEASURES TO TAKE IN CASE OF AN ACCIDENT
47
B NOTATION OF THE CONTENTS
49
1. PRECAUTION ON HANDLING THIS MANUAL
49
2. PRODUCT NAME
50
3. BRAND NAME
51
4. FEEDING DIRECTION
52
5. Note for the Specifications
53
C PRODUCT OUTLINE
55
1. PRODUCT SPECIFICATIONS
55
1.1 d-Color MF4003
55
1.1.1 Basic specifications
55
1.1.2 Paper
56
1.1.3 Print volume
57
1.1.4 Machine specification
57
1.1.5 Print function
57
1.1.6 Scan function
58
1.1.7 Basic specifications
59
1.2 FK-517
60
1.2.1 Basic specifications
60
1.3 PF-P20/PF-P21
62
1.4 FS-P04
63
1.5 CU-202
63
1.6 i-Option
64
1.6.1 Available function for i-Option
64
2. OVERALL COMPOSITION
66
2.1 SYSTEM CONFIGURATION
66
2.1.1 System configuration
66
2.1.2 Optional configuration
66
2.2 Section configuration
67
2.3 Paper path
67
2.4 CONTROL BLOCK DIAGRAM
68
2.5 IMAGE CREATION PROCESS
68
2.6 IMAGE FORMING CONTROL
69
2.7 Process speed
69
D SERVICE TOOL
71
1. d-Color MF4003/MF3303
71
2. Utility tool
72
2.1 IC card information setting tool of card reader
72
2.1.1 Outline
72
2.1.2 IC card information setting procedures
72
E MAINTENANCE
77
1. Concept of maintenance
77
2. Periodical replacement parts list
79
2.1 d-Color MF4003/MF3303
79
2.2 PF-P20/PF-P21
80
3. Periodical replacement procedure
81
3.1 d-Color MF4003/MF3303
81
3.1.1 Replacing the tray 1 pick-up roller, tray 1 feed roller
81
3.1.2 Replacing the tray 1 separation roller
81
3.1.3 Replacing the manual bypass tray feed roller
82
3.1.4 Replacing the manual bypass tray pick-up roller
82
3.1.5 Replacing the manual bypass tray separation pad
83
3.1.6 Replacing the toner cartridge
84
3.1.7 Replacing the imaging unit
84
3.1.8 Replacing the toner filter
85
3.1.9 Replacing the waster toner bottle
85
3.1.10 Replacing the transfer belt unit
86
3.1.11 Replacing the transfer roller unit
87
3.1.12 Replacing the fusing unit
88
3.2 PF-P20/PF-P21
90
3.2.1 Replacing the tray 2/3 pick-up roller, feed roller
90
3.2.2 Replacing the tray 2/3 separation roller
90
4. Cleaning parts list
92
4.1 d-Color MF4003/MF3303
92
4.2 PF-P20/ PF-P21
92
5. Cleaning/Lubrication procedure
93
5.1 d-Color MF4003/MF3303
93
5.1.1 Cleaning original glass
93
5.1.2 Cleaning tray 1 pick-up roller, tray 1 feed roller
93
5.1.3 Cleaning tray 1 separation roller
93
5.1.4 Cleaning manual bypass tray pick-up roller
94
5.1.5 Cleaning the manual bypass tray feed roller
94
5.1.6 Cleaning the manual bypass tray separation pad
94
5.1.7 Cleaning the transfer belt unit
94
5.1.8 Cleaning the PH window
94
5.1.9 Cleaning of the registration roller
95
5.1.10 Cleaning of the area around the waste toner collecting port
95
5.1.11 Cleaning of the 2nd image transfer entrance guide
95
5.1.12 Cleaning of the IDC sensor window
95
5.1.13 Cleaning of the duplex transport rollers
96
5.1.14 Cleaning ADF paper guide
96
5.1.15 ADF pick-up roller, ADF feed roller, ADF separation pad
96
5.2 PF-P20/PF-P21
97
5.2.1 Cleaning the tray 2/3 pick-up roller, feed roller
97
5.2.2 Cleaning the tray 2/3 separation roller
97
F DISASSEMBLY/REASSEMBLY
99
1. Disassembly/adjustment prohibited items
99
1.1 Paint-locked screws
99
1.2 Red-painted screws
99
1.3 Variable resistors on board
99
1.4 Warnings for disassembly
99
1.5 Warnings / Precautions during setup or transportation
100
2. Units from which removing is prohibited
101
2.1 PH unit
101
2.1.1 Reason for prohibition
101
2.2 Fusing unit
101
2.2.1 Reason for prohibition
101
3. Disassembly/assembly warning/caution items
102
3.1 Removal/installing of PWBs
102
4. d-Color MF4003/MF3303
103
4.1 Exterior parts
103
4.1.1 Front door
103
4.1.2 Left cover
103
4.1.3 Rear cover
103
4.1.4 Exit cover
104
4.1.5 Control panel unit
104
4.1.6 Control panel cover
106
4.1.7 Tray1
106
4.1.8 Scanner upper cover
107
4.1.9 Front cover (ADF)
107
4.1.10 Rear cover (ADF)
108
4.2 Units
108
4.2.1 Manual bypass tray unit
108
4.2.2 PH unit
110
4.2.3 2nd transfer pressure unit
111
4.2.4 Main drive unit
112
4.2.5 Manual bypass tray roller unit
113
4.2.6 Paper feed unit
114
4.2.7 PWB box
115
4.2.8 Fusing drive unit
116
4.2.9 ADF
118
4.2.10 CIS module
118
4.2.11 DF CIS module assy
119
4.2.12 Scanner unit
120
4.3 Boards
122
4.3.1 Base board (BASEB)
122
4.3.2 Storage board (STRGB)
123
4.3.3 CPU board (CPUB)
124
4.3.4 DC power supply (DCPS)
126
4.3.5 Backup board (ERB)
128
4.3.6 TPM board (TPMB)
129
4.3.7 High voltage unit (HVPS)
130
4.3.8 Machine condition monitor board/Fr (MCMB/Fr)
131
4.3.9 Machine condition monitor board/Edg (MCMB/Edg)
131
4.3.10 NFC board (NFCB)
132
4.3.11 DF control board (DFCB)
133
4.4 Motors
133
4.4.1 Main motor (M1)
133
4.4.2 Color motor (M2)
134
4.4.3 Fusing motor (M3)
134
4.4.4 Toner supply motor/YM (M4), Toner supply motor/CK (M5)
134
4.4.5 Tray 1 lift-up motor (M6)
135
4.4.6 Document main motor (M8)
135
4.4.7 Scanner motor (M9)
136
4.5 Clutches
137
4.5.1 Bypass tray paper feed clutch (CL2)
137
4.5.2 Tray 1 paper feed clutch (CL3)
138
4.5.3 Registration clutch (CL4)
138
4.5.4 ADU transport clutch (CL5)
139
4.5.5 ADU feed clutch (CL6)/ADU reversal clutch (CL7)
139
4.5.6 Document paper feed clutch (CL8)
140
4.5.7 Document registration clutch (CL9)
141
4.6 Fan motor
142
4.6.1 Machine cooling fan (FM1)
142
4.6.2 Toner suction fan (FM2)
143
4.6.3 DF cooling fan motor (FM4)
143
4.7 Others
144
4.7.1 IDC sensor (IDCS1)
144
4.7.2 Temperature/humidity sensor (TEM/HUMS1)
145
4.7.3 Exit path switch solenoid (SD1)
145
4.7.4 Fax speaker (SP1)
146
5. Fax Kit
147
5.1 Fax Kit
147
5.2 FAX board (FAXB)
148
6. PF-P20/PF-P21
149
6.1 Rear cover (PF-P20)
149
6.2 Rear cover (PF-P21)
149
6.3 Tray 2, tray 3 (PF-P20/PF-P21)
149
6.4 Paper Feed Unit (PF-P20)
149
6.5 Paper Feed Unit (PF-P21)
151
6.6 PC control board (PCCB) (PF-P20/PF-P21)
152
6.7 Drive motor (M1) (PF-P20/PF-P21)
153
6.8 Drive assy (PF-P20/PF-P21)
153
6.9 Lift-up motor (M2) (PF-P20/PF-P21)
153
6.10 Paper feed clutch (CL1) (PF-P20/PF-P21)
154
6.11 Transport clutch (CL2) (PF-P20/PF-P21)
155
7. UK-221
156
7.1 Wireless LAN board (UK-221)
156
8. EK-P08/EK-P09
157
8.1 USB hub board (EK-P08/EK-P09)
157
9. KP-102
158
9.1 Keypad (KP-102)
158
10. UK-P19
159
10.1 Multi feed detection board/TX (MFDB/TX)
159
10.2 Multi feed detection board/RX (MFDB/RX)
160
11. CU-202 (Only for Europe)
162
11.1 Clean unit (CU-202)
162
11.2 UFP filter
162
11.3 Clean unit drive board (CUDB)
163
11.4 Exhaust fan/1 (FM1)
163
11.5 Exhaust fan/2 (FM2)
165
11.6 Exhaust fan/3 (FM3)
166
G MECHANICAL ADJUSTMENT
167
1. d-Color MF4003/MF3303
167
1.1 Adjusting CIS reading start position
167
1.2 Skew Adj.
168
1.3 Adjusting original reading start position
168
H UTILITY MODE
169
1. Outline
169
2. Accessibility
170
3. Counter
171
4. Utility
172
4.1 Information
172
4.2 System Settings
172
4.3 Box
173
4.4 Copier Settings
173
4.5 Printer Settings
174
4.6 Store Address
175
4.7 Scan/Fax Settings
176
4.8 Fax Settings
176
4.9 Customize
176
5. Language Selection
178
6. Administrator
179
6.1 Outline
179
6.2 Maintenance
179
6.3 System Settings
180
6.3.1 Machine Setting
180
6.3.2 Register Support Information
180
6.3.3 Reset Settings
180
6.3.4 User Box Settings
180
6.3.5 URL Document Management Setting
181
6.3.6 Standard Size Setting
181
6.3.7 Stamp Settings
181
6.3.8 Blank Page Print Settings
181
6.3.9 Job Priority Operation Settings
181
6.3.10 System Connection Setting
181
6.3.11 Compact PDF Settings
181
6.3.12 Outline PDF Setting
181
6.3.13 Scan File Name Settings
182
6.3.14 Set Paper Name by User
182
6.3.15 Enlarge Display Settings
182
6.3.16 Registered Key Settings
182
6.3.17 Main Menu Display Settings
182
6.3.18 Preview Settings
182
6.3.19 List/Counter
182
6.3.20 Custom Function Pattern Selection
182
6.3.21 Function Display Key Permission Setting
183
6.3.22 Temporary Change Language
183
6.3.23 Main Menu Default (Classic Style)
183
6.3.24 Main Menu Default (Basic Style)
183
6.3.25 Display 10 Keypad when entering Number of Sets
183
6.3.26 Widget Function Settings
183
6.3.27 Bypass Tray Overwrite Settings for Print PC
183
6.3.28 Network Selection Settings
183
6.3.29 Job History Display Setting
183
6.3.30 Default Bypass Paper Type Setting
183
6.3.31 Page Number Print Position
183
6.3.32 ADF original skew adj.setting
184
6.3.33 Def. operation mode set.
184
6.3.34 Paper Size/Type Settings Screen Display
184
6.4 Security
184
6.5 User Auth/Account Track
186
6.6 Network
188
6.7 Box
190
6.8 Printer Settings
190
6.9 Store Address
191
6.10 Fax Settings
191
6.10.1 Header/Footer Position
191
6.10.2 Line Parameter Setting
191
6.10.3 TX/RX Settings
192
6.10.4 Function Setting
192
6.10.5 Report Settings
193
6.10.6 Multi Line Settings
194
6.10.7 Network Fax Setting
194
6.10.8 Header Information
194
6.10.9 Fax Print Quality Settings
194
6.10.10 Fax Setting List
194
6.11 Copier Settings
194
7. Expert Adjustment
196
8. Storage Management
197
9. Device Information
198
10. Remote Panel
199
11. Card Authentication
200
12. Supplementary explanation of utility mode
201
12.1 MAINTENANCE
201
12.1.1 License Settings
201
12.1.2 External Memory Backup
201
12.1.3 Remote Access Setting
202
12.2 System Settings
202
12.2.1 Voice Guidance Settings
202
12.3 Security
202
12.3.1 ProhibitFunctions
202
12.3.2 Enhanced Security Mode
203
12.3.3 Image Log Transfer Settings
205
12.3.4 Driver Password Encryption Setting
205
12.3.5 Quick Security Setting
206
12.4 User Authentication/Account Track
207
12.4.1 Authentication Device Settings
207
12.5 Network
208
12.5.1 Network Fax Setting
208
12.5.2 IWS Settings
209
12.5.3 Remote Panel Settings
209
12.5.4 Network I/F Configuration
210
12.5.5 Wireless Network Setting
211
12.6 Machine Update Settings
212
12.6.1 Internet ISW Settings
212
12.6.2 Machine Auto Update Settings
212
12.6.3 HTTP Proxy Settings
215
12.7 Storage Management
215
12.7.1 Encrypt Settings
215
12.7.2 Debug Log Encryption Settings
215
I SERVICE MODE
217
1. Outline
217
2. SETUP WIZARD
218
3. Time Zone/Date & Time Input mode
219
4. Search
220
5. Machine
221
5.1 Fusing Temperature
221
5.2 Fusing Transport Speed
221
5.3 Printer Area
221
5.3.1 Leading Edge Adjustment
221
5.3.2 Printer Image Centering Side 1
222
5.3.3 Leading Edge Adj. Side 2 (Duplex)
222
5.3.4 Prt. Image Center. Side 2 (Dup)
223
5.3.5 Paper Feed Direction Adj.
223
5.3.6 Tray Printing Position: Tip
224
5.4 Scan Area
224
5.4.1 Test chart
224
5.4.2 Image Position: Leading Edge
224
5.4.3 Scanner Image Side Edge
225
5.4.4 Main Scan Zoom Adj.
225
5.4.5 Sub Scan Zoom Adj.
226
5.5 Color Registration Adjustment
226
5.6 Main Scanning Direction Zoom
227
5.7 LD adjustment
228
5.7.1 LD Light Width Adjustment
228
5.8 Lead Edge Erase Adjustment
228
5.9 Non-Image Area Erase Check
228
6. Firmware Version
230
7. Imaging Process Adjustment
231
7.1 Gradation Adjust
231
7.2 Stabilizer
232
7.3 Max Image Density Adj
232
7.4 Image Background Adj
232
7.5 Paper Separation Adjustment
232
7.6 TCR Level Setting
232
7.7 Transfer Voltage Fine Adj
233
7.7.1 Primary transfer adj.
233
7.7.2 2nd Transfer Adj.
233
7.8 Charging voltage adjustment
234
7.9 Thick Paper Density Adjustment
234
7.10 Grad/Dev AC Bias V Selection
234
7.11 Manual Toner Add
234
8. CS Remote
235
8.1 Remote Care
235
8.1.1 Outline
235
8.1.2 Setting up
235
8.1.3 Setup confirmation
236
8.1.4 Calling the maintenance
236
8.1.5 Calling the center from the administrator
236
8.1.6 Checking the transmission log
237
8.1.7 Maintenance/Default Settings
237
8.1.8 Server Setting
240
8.1.9 Product Auth. Settings
242
8.1.10 Import/Export Settings
242
8.1.11 Auto Initial Dial Setting
242
8.2 Software SW setting for Remote Care
243
8.2.1 List of software SW for CS Remote Care
243
8.2.2 SW No. 01
243
8.2.3 SW No. 02
244
8.2.4 SW No. 03
244
8.2.5 SW No. 04
245
8.2.6 SW No. 05
245
8.2.7 SW No. 06
245
8.2.8 SW No. 07
246
8.2.9 SW No. 08
246
8.2.10 SW No. 09
246
8.2.11 SW No. 10
247
8.2.12 SW No. 11
247
8.2.13 SW No. 12
247
8.2.14 SW No. 14
248
8.2.15 SW No. 15
248
8.2.16 SW No. 18
248
8.2.17 SW No. 21
249
8.2.18 SW No. 22
249
8.2.19 SW No. 23
250
8.3 Remote Analysis
250
8.3.1 Outline
250
8.3.2 Function Setting
250
8.3.3 Send
251
8.3.4 History Output
252
8.3.5 CS Remote Analysis Error Code List
252
9. System 1
254
9.1 Marketing Area
254
9.1.1 List of functions affected by marketing area setting
254
9.2 Tel/Fax Number
255
9.3 Serial Number
255
9.4 Sleep ON/OFF Choice Setting
255
9.5 Foolscap Size Setting
255
9.6 Install Date
255
9.7 Initialization
255
9.7.1 List of Clear Item
256
9.8 Problem Unit Isolation Set.
257
9.9 Warm-up
257
9.9.1 Change Warm Up Time
257
9.10 Machine State LED Setting
258
9.11 TP Level
258
9.12 Burn Prevention Settings
258
10. System 2
259
10.1 Storage type setting
259
10.2 Option Board Status
259
10.3 Consumable Life Reminder
259
10.4 Unit Change
259
10.4.1 Unit Change
259
10.4.2 Warning display
259
10.5 Software Switch Setting
260
10.5.1 SW No.012
261
10.5.2 SW No.025
261
10.5.3 SW No.033
261
10.5.4 SW No.049
261
10.5.5 SW No.051
262
10.5.6 SW No.069
262
10.5.7 SW No.070
262
10.5.8 SW No.072
262
10.5.9 SW No.121
262
10.5.10 SW No.124
262
10.5.11 SW No.135
263
10.5.12 SW No.143
263
10.5.13 SW No.145
263
10.5.14 SW No.146
263
10.5.15 SW No.147
264
10.5.16 SW No.151
264
10.5.17 SW No.152
264
10.5.18 SW No.155
264
10.5.19 SW No.157
264
10.5.20 SW No.163
264
10.5.21 SW No.172
264
10.5.22 SW No.188
265
10.5.23 SW No.203
265
10.5.24 SW No.206
265
10.5.25 SW No.226
265
10.5.26 SW No.227
265
10.5.27 SW No.230
265
10.6 CCD Calibration
265
10.7 Data Capture
266
10.8 Network Fax Settings
267
10.9 RX File Change Page Name
267
10.10 ADF Settings
268
10.11 Image Stabilization Setting
268
10.12 Multifeed Sensor Status
268
10.13 User Paper Settings
268
10.14 Coverage Rate Screen
269
10.15 JAM Code Display Setting
269
10.16 Import Config. Data
269
10.16.1 BootUp Screen
269
10.16.2 Machine Image
269
10.16.3 Custom Auth. Setting
270
10.17 Install Data
270
10.18 Local Interface Kit Setting
270
10.19 Display Eco Index
271
10.20 Internal Error. Auto Cancel
271
10.21 Acquiring Settings
271
10.22 Driver Install
271
10.23 Application Change Setting
272
10.24 Custom Pattern
272
10.25 Maintenance Mode
272
10.26 Smart Fusing Control
273
10.27 Cleaning Unit Setting
273
10.28 Fuser roll deform
273
10.29 Auth. Function Enable
273
11. Counter
275
11.1 Outline
275
11.2 Life
275
11.3 Service Call
276
11.4 Section Service Call
276
11.5 Warning
276
11.6 Maintenance
276
11.7 Service Total
276
11.8 Service Call History (Data)
277
11.9 ADF Paper Pages
277
11.10 Paper Jam History
277
11.11 Fax Connection Error
277
11.12 Jam
277
11.13 Section JAM
277
11.14 Instantaneous Power Failure
277
11.15 Detail code history
277
12. List Output
278
12.1 Individual list print output
278
12.2 Batch list CSV output
278
13. State Confirmation
280
13.1 Sensor Check
280
13.1.1 d-Color MF4003/MF3303
280
13.2 Table Number
280
13.3 Level History 1
281
13.4 Level History 2
281
13.5 Temp. & Humidity
281
13.6 CCD Check
281
13.7 Memory/Storage Adjustment
282
13.7.1 Memory Check
282
13.7.2 Compress / Decompression Check
283
13.7.3 JPEG check
283
13.7.4 Memory Bus Check
283
13.7.5 DSC Bus Check
283
13.7.6 Storage R/W Check
283
13.7.7 Format
283
13.8 Memory/Storage Status
283
13.9 Color Regist
283
13.10 Load Check
284
13.10.1 Load check list
284
13.11 Adjustment Data List
285
13.12 Self-diag. (Full/Individual)
285
13.12.1 Overview of self-diagnostic function
285
13.12.2 Self-diag. (Full)
286
13.12.3 Self-diag. (Individual)
287
14. Test Mode
289
14.1 Test Pattern
289
14.1.1 Gradation Pattern
289
14.1.2 Halftone Pattern
289
14.1.3 Lattice Pattern
289
14.1.4 Solid Pattern
290
14.1.5 Color Sample
290
14.1.6 8 Color Solid Pattern
291
14.1.7 CMM pattern
291
14.2 Paper Passage Test
291
14.3 Fax Test
292
15. ADF
294
15.1 Original Stop Position
294
15.2 Registration Loop Adj.
295
15.3 Paper Passage
295
15.4 Sensor Check
296
15.5 Read Pos Adj
296
15.6 Feed Zoom
296
15.7 Scanning Light Adjustment
297
15.8 FD-Mag. Adj. (B)
297
15.9 Main Scanning Direction Zoom
298
15.10 Shading Repair Setting
298
16. FAX
299
16.1 Outline
299
16.1.1 PBX operating environment
300
16.2 Modem/NCU
300
16.3 Network
302
16.4 System
303
16.5 Fax File Format
304
16.6 Communication
305
16.7 List Output
306
16.8 Function Parameter
306
16.9 Initialization
307
16.10 Fax Line Std. Setting
307
16.11 Function parameter list (for all fax lines)
307
16.11.1 Job setting
307
16.11.2 Function setting
311
16.11.3 Report setting
315
16.11.4 Panel settings
317
16.12 Function parameter list (for separate line)
320
16.12.1 Function setting 1
320
16.12.2 Function setting 2
323
16.12.3 Function setting 3
325
16.12.4 Function setting 4
327
16.12.5 Function setting 5
330
16.12.6 Fax capacity setting
333
16.12.7 HP setting
335
17. Network Settings
338
17.1 2nd Network Setting
338
17.2 Remote Service Setting
338
17.2.1 Function Setting
338
17.2.2 Proxy Server Setting
338
17.2.3 Maintenance Setting
339
17.2.4 XMPP Settings
339
17.2.5 Always Connection Setting
339
17.3 Port Settings
340
17.4 MTU Param. set.
340
18. Machine Update Setting
341
18.1 Internet ISW
341
18.1.1 Internet ISW Set
341
18.1.2 HTTP Setting
341
18.1.3 FTP Setting
341
18.1.4 Forwarding Access Setting
341
18.1.5 Download
341
18.1.6 Update Start Time Settings
342
18.2 Machine Auto Update setting
342
18.2.1 Auto Update setting
342
18.2.2 Relay server setting
347
18.2.3 Transmission log Update
348
18.2.4 Transmission Server Log
349
18.2.5 Update Log Display
349
18.2.6 Relay Server Log Confirmation
349
18.2.7 Manually Update
350
18.2.8 Machine Import setting
350
18.2.9 Machine Export setting
350
18.2.10 Machine Update Password
351
18.3 Firmware Update
351
18.4 Copy Network Settings
351
18.4.1 Outline
351
18.4.2 Environmental preparations
352
18.4.3 Deliver/setting procedure
353
18.5 OSS Update
353
J BILLING SETTING/ENHANCED SECURITY/DEBUG SETTINGS
355
1. BILLING SETTING
355
1.1 Outline
355
1.2 Counter Setting
355
1.2.1 Total Counter Mode
355
1.2.2 Large Size Counter Mode
355
1.2.3 Count by the combination of each setting
356
1.3 Management Function Choice
356
1.3.1 Management Device 2
356
1.3.2 Vendor 2
356
1.4 Authentication Device 2
356
1.4.1 Installation procedures of authentication unit
357
1.5 Coverage Rate Clear
359
1.6 License Management
359
1.6.1 Activation
359
1.6.2 Deactivation
362
1.6.3 Repair
366
1.6.4 Initialize
370
1.6.5 Request Code
370
1.6.6 List
370
1.6.7 Function List
370
1.7 Manage OpenAPI Authentication
370
1.8 WebDAV Server Setting
370
2. ENHANCED SECURITY
372
2.1 Outline
372
2.2 CE Password
372
2.3 Administrator Password
372
2.4 Administrator Feature Level
372
2.5 CE Authentication
372
2.6 Life Stop Setting
373
2.7 Memory Data Backup
373
2.8 operation Ban release time
373
2.9 Administrator unlocking
373
2.10 Engine FW DipSW
374
2.10.1 Details of Each Function
375
2.11 Storage Data Backup
379
2.12 Data Backup
380
2.12.1 Client Function
380
2.12.2 Server Function
382
2.13 Customer Type
383
2.14 TPM Setting
383
2.15 FWCert. Settings
383
3. DEBUG SETTINGS
384
3.1 Outline
384
3.2 Debug Log Output
384
3.3 Acquiring Mode
384
3.4 Remote Log Retrieval
385
3.5 Remote Log Server Settings
385
3.6 Enable Core Dump
386
3.7 USB Password
386
3.8 Other
386
3.8.1 Screen Capture
386
3.8.2 Panel Operation Playback
387
K FIRMWARE
389
1. Overview
389
2. USB memory
390
2.1 Preparation
390
2.2 Rewriting of Firmware
390
2.3 Action when data transfer fails
392
3. Internet ISW
393
3.1 Service environment
393
3.2 Preparation
393
3.2.1 Making the firmware data
393
3.2.2 Internet ISW Set
393
3.3 Rewriting of Firmware
393
4. Auto Update setting
395
4.1 Service environment
395
4.2 Preparation
395
4.3 Rewriting of Firmware
395
5. How to install the i-Option data
396
5.1 Available function for i-Option
396
5.2 LK-107/LK-108 font data installation procedure
396
6. Creating back up files when updating firmware
397
L TROUBLESHOOTING
399
1. JAM CODE
399
1.1 JAM display
399
1.2 Initial check items
400
1.3 List of the JAM code
401
1.4 JAM that do not display the JAM code
401
1.5 1#-##
402
1.5.1 10-01, 10-02, 10-40
402
1.5.2 11-01, 11-02, 11-40
403
1.5.3 12-01, 12-40
403
1.5.4 13-01, 13-40
404
1.6 2#-##
405
1.6.1 20-02, 20-10, 20-11, 20-12, 20-21, 20-26
405
1.7 3#-##
406
1.7.1 30-01, 30-03
406
1.7.2 32-05, 32-06, 32-31
406
1.8 6#-##
407
1.8.1 66-02
407
1.8.2 66-13, 66-33
407
1.8.3 66-05
408
1.8.4 66-07
408
1.8.5 66-08
409
1.9 9#-##
409
1.9.1 92-01, 92-02, 92-03, 92-04
409
1.9.2 93-03
410
1.9.3 99-01
410
1.9.4 99-02
411
1.9.5 99-03
411
1.9.6 99-04
411
1.9.7 99-05
411
1.9.8 99-06
412
1.9.9 99-07
412
1.10 Sensor layout
413
1.10.1 d-Color MF4003/MF3303
413
2. MALFUNCTION CODE
414
2.1 Display procedure
414
2.2 List of the malfunction code
414
2.3 S-1
414
2.4 P-5
415
2.5 P-6, P-7, P-8, P-9
415
2.6 P-21
415
2.7 P-22
416
2.8 P-33
416
3. TROUBLE CODE
417
3.1 Overview of trouble code
417
3.2 Overview of troubleshooting procedure
417
3.2.1 Troubleshooting procedure
418
3.3 Trouble resetting procedure
418
3.3.1 Trouble resetting procedure by Trouble Reset key
418
3.3.2 Trouble resetting procedure by the auto cancel function
419
3.3.3 Trouble resetting procedure by remote operation
419
3.4 Nonvolatile memory clear function
419
3.4.1 Data to be cleared by the nonvolatile memory clear function
420
3.4.2 Start and execution procedure
420
3.5 Trouble isolation function
421
3.6 List of the trouble code
422
3.7 C0###
427
3.7.1 C0103
427
3.7.2 C0104
428
3.7.3 C0202
428
3.7.4 C0204
429
3.7.5 C0206
429
3.8 C2###
430
3.8.1 C2153, C2154, C2155, C2156
430
3.8.2 C2253, C2254
430
3.8.3 C2350
431
3.8.4 C2411, C2412, C2413, C2414
431
3.8.5 C2551, C2553, C2555, C2557
431
3.8.6 C2552, C2554, C2556, C2558
432
3.8.7 C2559, C255A, C255B, C255C
432
3.8.8 C2561, C2562, C2563, C2564
432
3.8.9 C2650
433
3.8.10 C2A21, C2A22, C2A23, C2A24
433
3.9 C3###
434
3.9.1 C3201, C3202
434
3.9.2 C3425
434
3.9.3 C3722, C3725, C3726
434
3.9.4 C3731
435
3.9.5 C3825, C3826
435
3.9.6 C3922, C3925, C3926
436
3.9.7 C392B
436
3.10 C4###
436
3.10.1 C4091
436
3.10.2 C40A2, C40A3, C40A4, C40A5, C40A6, C40C3, C40C5
437
3.10.3 C4101
437
3.10.4 C4501
437
3.11 C5###
438
3.11.1 C5102, C5103
438
3.11.2 C5357
438
3.11.3 C5360
438
3.11.4 C5372
439
3.11.5 C5501
439
3.11.6 C5601
439
3.11.7 C5605, C5606
440
3.11.8 C5610
440
3.11.9 C5620
440
3.11.10 C5701
440
3.12 C6###
441
3.12.1 C6001
441
3.12.2 C6002
441
3.12.3 C6102
441
3.12.4 C6704
442
3.12.5 C6751
442
3.12.6 C6752
442
3.12.7 C6753
443
3.12.8 C6754, C6755
443
3.12.9 C6756
443
3.12.10 C6902, C6903, C6912, C6913
444
3.12.11 C6F01, C6F02, C6F03, C6F04, C6F05, C6F06, C6F07, C6F08, C6F09, C6F0A, C6FDC, C6FDD
444
3.13 C7###
444
3.13.1 C7111
444
3.13.2 C7131
445
3.13.3 C7133
445
3.13.4 C7201
445
3.13.5 C7206
445
3.13.6 C720A
446
3.13.7 C720B
446
3.13.8 C720D
446
3.13.9 C720E
446
3.13.10 C720F
447
3.13.11 C7243
447
3.13.12 C7311
447
3.13.13 C7312
448
3.13.14 C7502
448
3.13.15 C7601
448
3.13.16 C7602
448
3.13.17 C7604
449
3.13.18 C7605
449
3.13.19 C7607
449
3.13.20 C760A
450
3.13.21 C760F
450
3.13.22 C7613
450
3.13.23 C7615
451
3.13.24 C7616
451
3.13.25 C7631
451
3.13.26 C7632
451
3.13.27 C7633
452
3.14 C8###
452
3.14.1 C8302
452
3.14.2 C8401
452
3.14.3 C8402
452
3.14.4 C8403
453
3.15 C9###
453
3.15.1 C9401, C9402
453
3.15.2 C9403, C9404
453
3.15.3 C9701
454
3.15.4 C9702
454
3.16 CA###
454
3.16.1 CA051, CA052, CA053
454
3.17 CC###
455
3.17.1 CC002
455
3.17.2 CC151
455
3.17.3 CC152
455
3.17.4 CC156
456
3.17.5 CC163
456
3.17.6 CC164
456
3.17.7 CC170, CC171, CC172, CC173, CC174, CC180, CC181, CC182, CC183, CC184, CC185, CC186
456
3.17.8 CC190
457
3.17.9 CC191
457
3.17.10 CC211
457
3.17.11 CC212
458
3.17.12 CC213
458
3.17.13 CC214
458
3.17.14 CC216
459
3.17.15 CC301
459
3.17.16 CC302
459
3.17.17 CCC00
459
3.18 CD###
460
3.18.1 CD002
460
3.18.2 CD004, CD00F
460
3.18.3 CD010
460
3.18.4 CD011
460
3.18.5 CD012
461
3.18.6 CD030
461
3.18.7 CD041, CD042, CD043, CD044, CD045, CD046
461
3.18.8 CD047, CD048, CD049, CD04A, CD04B
461
3.18.9 CD050
461
3.18.10 CD073
462
3.18.11 CD110
462
3.18.12 CD201, CD202, CD203
462
3.18.13 CD211, CD212
462
3.18.14 CD241, CD242
463
3.18.15 CD261
463
3.18.16 CD262
463
3.18.17 CD2D1
463
3.18.18 CD3##
464
3.18.19 CD313
464
3.18.20 CD38E
465
3.18.21 CD390
465
3.18.22 CD391
465
3.18.23 CD392
465
3.18.24 CD3B1, CD3B3, CD3B4, CD3B5
465
3.18.25 CD3C0
466
3.18.26 CD401, CD402, CD403, CD404, CD405, CD406, CD407, CD411, CD412, CD413
466
3.18.27 CD601, CD602, CD603
466
3.18.28 CD701, CD702, CD703
467
3.18.29 CDC##
467
3.18.30 CDF50, CDF70, CDFA0
467
3.18.31 CDF51, CDF71, CDFA1
467
3.19 CE###
468
3.19.1 CE001, CE003, CE004, CE005, CE006, CE007, CE009, CE011
468
3.19.2 CE002
468
3.19.3 CE013
468
3.19.4 CE014
468
3.19.5 CE101
469
3.19.6 CE201
469
3.19.7 CE202
469
3.19.8 CE203
469
3.19.9 CE301, CE302, CE303, CE304, CE305
470
3.19.10 CED01
470
3.19.11 CEEE1, CEEE3
470
3.19.12 CEEE2
470
3.20 CF### (Abort code)
471
3.20.1 CFA1#
471
3.20.2 CFB0# - CFB3#
471
3.20.3 CFBC# - CFC2#
471
3.20.4 CFD7# - CFDA#
472
3.20.5 CFE3# - CFE6#
472
3.20.6 CFEF# - CFF2#
472
4. TROUBLESHOOTING USING SELF-DIAG. (FULL)
473
4.1 Overview of Self-diag. (Full) function
473
4.2 Self-diag. (Full) Procedure
473
4.2.1 Auto Execution of Self-diag. (Full)
473
4.2.2 Error code resetting procedures
473
4.3 Error Code List
474
4.4 E1-1
475
4.5 E1-2
475
4.6 E1-3
475
4.7 E1-4
475
4.8 E1-5
475
4.9 E3-1
476
4.10 E3-2
476
4.11 E3-3
476
4.12 E4-1, E4-2
477
4.13 E5-1
477
4.14 E5-2
477
4.15 E5-3
477
4.16 E5-4
478
4.17 E5-5
478
4.18 E5-7
478
4.19 E5-11
478
4.20 E5-12
479
4.21 E6-1, E6-2
479
4.22 E7-1, E7-2
479
4.23 E8-1
480
4.24 E11-1, E11-2
480
4.25 E12-1, E12-2
480
4.26 E12-3
481
5. TROUBLESHOOTING WHEN NG IS DISPLAYED ON THE SELF-DIAG. (INDIVIDUAL)
482
5.1 I2S check
482
5.1.1 Troubleshooting when NG is displayed for AUDIO (voice)
482
5.2 Various USB Check
482
5.2.1 Troubleshooting when NG is displayed for Keyboard
482
5.2.2 Troubleshooting when NG is displayed for USB Memory
482
5.3 CPU board check
482
5.3.1 Troubleshooting when NG is displayed for Ping Test
482
6. ERROR CODE FOR THE INTERNET ISW
483
6.1 Error code list for the Internet ISW
483
6.2 0x0#
483
6.3 0x1#
484
6.4 0x2#
484
7. CS Remote Care ERROR CODE
485
7.1 Troubleshooting for CS Remote Care
485
7.2 CS Remote Care Operation under Enhanced Security Mode
485
7.3 List of the CS Remote Care error code
485
7.3.1 When connecting by modem
485
7.3.2 When connecting by e-mails
486
7.3.3 When connecting by http
488
7.3.4 When connecting by Fax modem
490
8. CS Remote Analysis ERROR CODE
491
8.1 When connecting by SOAP
491
8.1.1 1###
491
8.1.2 2###
491
8.1.3 3###
492
8.1.4 4###
492
8.2 When connecting by http
492
8.2.1 0###
492
8.2.2 1###
492
8.2.3 2###
492
8.2.4 3###
493
8.2.5 4###
493
8.2.6 5###
493
8.2.7 6###
493
8.2.8 7###
493
9. FAX TROUBLE CODE
494
9.1 The error in the transmission/reception system
494
9.2 B0##
494
9.3 B11#
494
9.4 B12#
494
9.5 B13#
495
9.6 B14#
495
9.7 B15#
495
9.8 B16#
495
9.9 B17#
496
9.10 B18#
496
9.11 B19#
496
9.12 T0#
496
9.13 T1#
497
9.14 T2#
498
9.15 T3#
498
9.16 T4#
499
9.17 T5#
500
9.18 T6#
500
9.19 T7#
501
9.20 T8#
501
9.21 T9#
503
9.22 R0#
503
9.23 R1#
505
9.24 R2#
505
9.25 R3#
507
9.26 R4#
507
9.27 R5#
507
9.28 R6#
508
9.29 R7#
508
9.30 R8#
509
9.31 R9#
509
9.32 Other
510
10. DIAGNOSTIC CODES
511
10.1 Outline
511
10.2 Explanation
511
10.2.1 The diagnostic code
511
10.2.2 Information of communication results and conditions
511
11. NETWORK FAX ERROR CODE
513
11.1 Error code list of the transmission system
513
11.2 Error code list of the reception system
513
12. PANEL BLACKOUT TROUBLE (BOOT DIAGNOSIS FUNCTION)
515
12.1 Boot diagnosis function
515
12.1.1 Boot diagnosis sequence
515
12.1.2 Manual boot diagnosis procedure
516
12.1.3 Boot diagnosis result list
516
12.1.4 How to reset the boot diagnosis result
516
13. TROUBLES THAT DO NOT DISPLAY THE TROUBLE CODE
517
13.1 Machine is not energized at all (DCPS operation check)
517
13.2 Fusing heaters do not operate
517
13.3 Power is not supplied to DF
517
13.4 Power is not supplied to option
518
13.4.1 PF-P20/PF-P21
518
14. OTHER TROUBLE
519
14.1 Firmware error warning
519
14.2 Storage lock password error warning
519
15. TROUBLESHOOTING OF i-Option
520
15.1 Structure of license management
520
15.2 License management information
520
15.3 Error message
520
15.3.1 License management error
520
16. IMAGE QUALITY PROBLEM
521
16.1 How to read element data
521
16.1.1 Table Number
521
16.1.2 Level History 1
523
16.1.3 Level History 2
523
16.2 Troubleshooting procedure overview
524
16.2.1 Test pattern printing
524
16.3 Corrective action procedure
525
16.3.1 Skewed image/Image deviation
525
16.3.2 White line 1, White band 1, Color line 1, Color band 1
527
16.3.3 White line 2, White band 2, Color line 2, Color band 2
529
16.3.4 Uneven density 1
531
16.3.5 Uneven density 2
532
16.3.6 Faint image, low image density (ID lowering)
533
16.3.7 Gradation reproduction failure
535
16.3.8 Color reproducibility error
536
16.3.9 Incorrect color image registration
537
16.3.10 Foggy background
538
16.3.11 Void areas, White spots
540
16.3.12 Color spot
541
16.3.13 Blurred image
543
16.3.14 Back marking
543
16.3.15 Blank copy, Black copy
544
16.3.16 Uneven pitch
545
16.3.17 Uneven gloss, Rough gloss
546
16.3.18 Poor fusing performance, Offset
547
16.3.19 Brush effect, Image bleeding
547
16.3.20 Blurred fine lines
548
16.3.21 Moire
549
16.3.22 Distorted image
550
16.3.23 ACS malfunction
551
16.3.24 Abnormal image
551
17. IC PROTECTOR
552
17.1 Outline
552
17.2 IC protector list
552
17.2.1 d-Color MF4003/MF3303
552
17.2.2 PF-P20/PF-P21
553
17.2.3 UK-P19
554
M PARTS/CONNECTOR LAYOUT DRAWING
555
1. PARTS LAYOUT DRAWING
555
1.1 d-Color MF4003/MF3303
555
1.1.1 Scanner section
555
1.1.2 Front side section
555
1.1.3 Back side
557
1.1.4 Left side
558
1.1.5 Right side
558
1.1.6 Manual bypass tray
559
1.1.7 Tray 1
559
1.1.8 Fusing/paper exit section
560
1.1.9 Duplex section
560
1.1.10 ADF
561
1.2 PF-P20/PF-P21
561
1.3 CU-202
562
2. CONNECTOR LAYOUT DRAWING
563
2.1 BOARD CONNECTOR LAYOUT DRAWING
563
2.1.1 d-Color MF4003/MF3303
563
2.1.2 PF-P20/PF-P21
566
2.1.3 EK-P08
567
2.1.4 EK-P09
567
2.1.5 UK-P19
567
2.1.6 CU-202
568
2.2 RELAY CONNECTOR LAYOUT DRAWING
568
2.2.1 d-Color MF4003/MF3303
568
N TIMING CHART
571
1. d-Color MF4003/MF3303
571
1.1 Timing chart when the main power switch is turned ON
571
O WIRING DIAGRAM
573
1. d-Color MF4003/MF3303
573
1.1 Main body
573
P THEORY OF OPERATION
575
1. d-Color MF4003/MF3303
575
1.1 INTERFACE SECTION
575
1.1.1 Front side / Right side
575
1.1.2 Rear side / left side
575
1.2 AUTOMATIC DOCUMENT FEEDER SECTION
576
1.2.1 Configuration
576
1.2.2 Paper path
576
1.2.3 Drive
577
1.2.4 Operation
577
1.3 SCANNER SECTION
579
1.3.1 Configuration
579
1.3.2 Drive
579
1.3.3 Operation
579
1.4 WRITE SECTION
581
1.4.1 Configuration
581
1.4.2 Operation
581
1.5 TONER SUPPLY SECTION
585
1.5.1 Configuration
585
1.5.2 Drive
586
1.5.3 Operation
586
1.6 IMAGING UNIT
589
1.6.1 Imaging unit (overall configuration)
589
1.6.2 Imaging unit (charge corona)
591
1.6.3 Imaging unit (photoconductor)
593
1.6.4 Imaging unit (developing)
596
1.7 1ST TRANSFER SECTION
599
1.7.1 Configuration
599
1.7.2 Drive
600
1.7.3 Operation
600
1.8 2ND TRANSFER SECTION
605
1.8.1 Configuration
605
1.8.2 Drive
605
1.8.3 Operation
605
1.9 TONER COLLECTING SECTION
607
1.9.1 Configuration
607
1.9.2 Drive
607
1.9.3 Operation
608
1.10 PAPER FEED SECTION (Manual bypass tray)
611
1.10.1 Configuration
611
1.10.2 Drive
611
1.10.3 Operation
611
1.11 PAPER FEED SECTION (Tray 1)
613
1.11.1 Configuration
613
1.11.2 Drive
613
1.11.3 Operation
613
1.12 REGISTRATION SECTION
617
1.12.1 Configuration
617
1.12.2 Drive
618
1.12.3 Operation
618
1.13 FUSING SECTION
619
1.13.1 Configuration
619
1.13.2 Drive
620
1.13.3 Operation
620
1.14 DUPLEX SECTION
625
1.14.1 Configuration
625
1.14.2 Drive
626
1.14.3 Operation
626
1.15 PAPER EXIT / REVERSE SECTION
629
1.15.1 Configuration
629
1.15.2 Drive
630
1.15.3 Operation
630
1.16 IMAGE STABILIZATION CONTROL
631
1.16.1 Overview
631
1.16.2 Description of control
632
1.16.3 Control contents
633
1.17 POWER SUPPLY SECTION
636
1.17.1 Main power switch
636
1.17.2 Power key
638
1.18 FAN CONTROL
639
1.18.1 Configuration
639
1.18.2 Operation
640
1.19 COUNTER CONTROL
640
1.19.1 Configuration
640
1.19.2 Operation
640
1.20 INDICATOR FUNCTION
641
1.20.1 Configuration
641
1.20.2 Control
641
2. PF-P20/PF-P21
642
2.1 Configuration
642
2.2 Drive
642
2.3 Operation
642
2.3.1 Up/down control
642
2.3.2 Pick-up roller retract mechanism
644
2.3.3 Separation roller retract mechanism
644
2.3.4 Paper feed control
644
2.3.5 Paper guide plate
645
2.3.6 Paper size detection
645
2.3.7 Paper empty condition detection control
645
2.3.8 Tray open/close detection control
646
2.3.9 Paper misfeed detection control
646
2.3.10 Paper feed tray stopper release mechanism
646
3. FS-P04
648
3.1 Configuration
648
3.2 Paper detection
648
3.3 Safety switch
648
4. AU-102
649
4.1 Configuration
649
4.2 Operation
649
5. AU-201S
650
5.1 Configuration
650
5.2 Operation
650
5.3 Specifications
650
6. EK-P08/EK-P09
651
6.1 EK-P08
651
6.1.1 Configuration
651
6.1.2 Operation
651
6.2 EK-P09
651
6.2.1 Configuration
651
6.2.2 Operation
651
7. UK-221
653
7.1 CONFIGURATION
653
7.1.1 Mounting position
653
7.2 OPERATION
653
7.2.1 Outline
653
7.2.2 2nd network interface structure
654
7.2.3 Operation on ErP Auto Power Off mode
656
8. FK-517
660
8.1 COMMUNICATION CONTROL
660
8.1.1 FIF bits of DIS, DTC and DCS
660
8.1.2 Modem fallback sequence
668
8.1.3 V8/V34 sequence
668
8.2 FUNCTION
676
8.2.1 Telephone function
676
8.2.2 F-code
677
8.2.3 Transmission function
681
8.2.4 Reception function
681
9. CU-202
684
9.1 CONFIGURATION
684
9.1.1 Configuration
684
9.1.2 Unit internal configuration
684
9.2 OPERATION
684
9.2.1 Airflow
684
9.2.2 Fan control
685
UPDATING STATUS
687
Other manuals for Olivetti d-Color MF4003
Installation Manual
15 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Olivetti d-Color MF4003 and is the answer not in the manual?
Ask a question
Olivetti d-Color MF4003 Specifications
General
Brand
Olivetti
Model
d-Color MF4003
Category
Copier
Language
English
Related product manuals
Olivetti d-Color MF369
18 pages
Olivetti d-Copia 2000
604 pages
Olivetti d-Copia 1600
242 pages
Olivetti D-COPIA 120D
81 pages
Olivetti d-Copia 1800
46 pages
Olivetti d-Copia 200D
80 pages
Olivetti d-copia 200MF
160 pages
Olivetti d-Copia 1800MF
116 pages
Olivetti d-Copia 5200MF
502 pages
Olivetti d-Copia 4200MF
219 pages
Olivetti d-Copia 2500MF
312 pages
Olivetti d-Copia 4003MF
487 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
