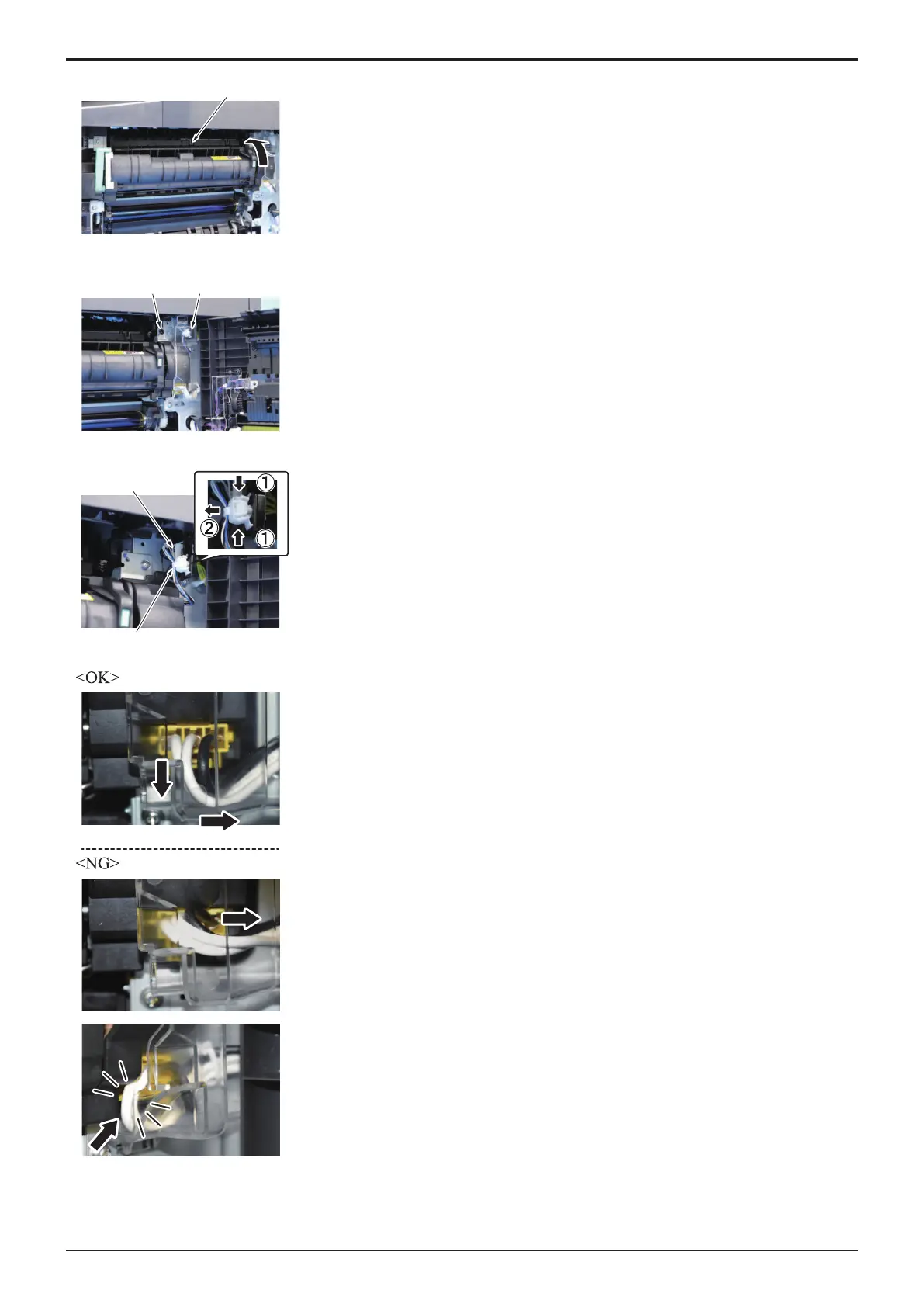

E MAINTENANCE > 3. Periodical replacement procedure
E-13
[1]
2. Open the separation guide [1].
[1] [2]
3. Remove the screw [1], and remove the cover [2].
[1]
[2]
4. Remove the cable tie [1] from the main body, and disconnect the connector [2].
5. NOTE
▪ When installing the cover, make sure that the harness is once routed
downward, then in the horizontal direction.
▪ Make sure not to pinch the harness by the cover when installing the
cover.
Y119930-3
