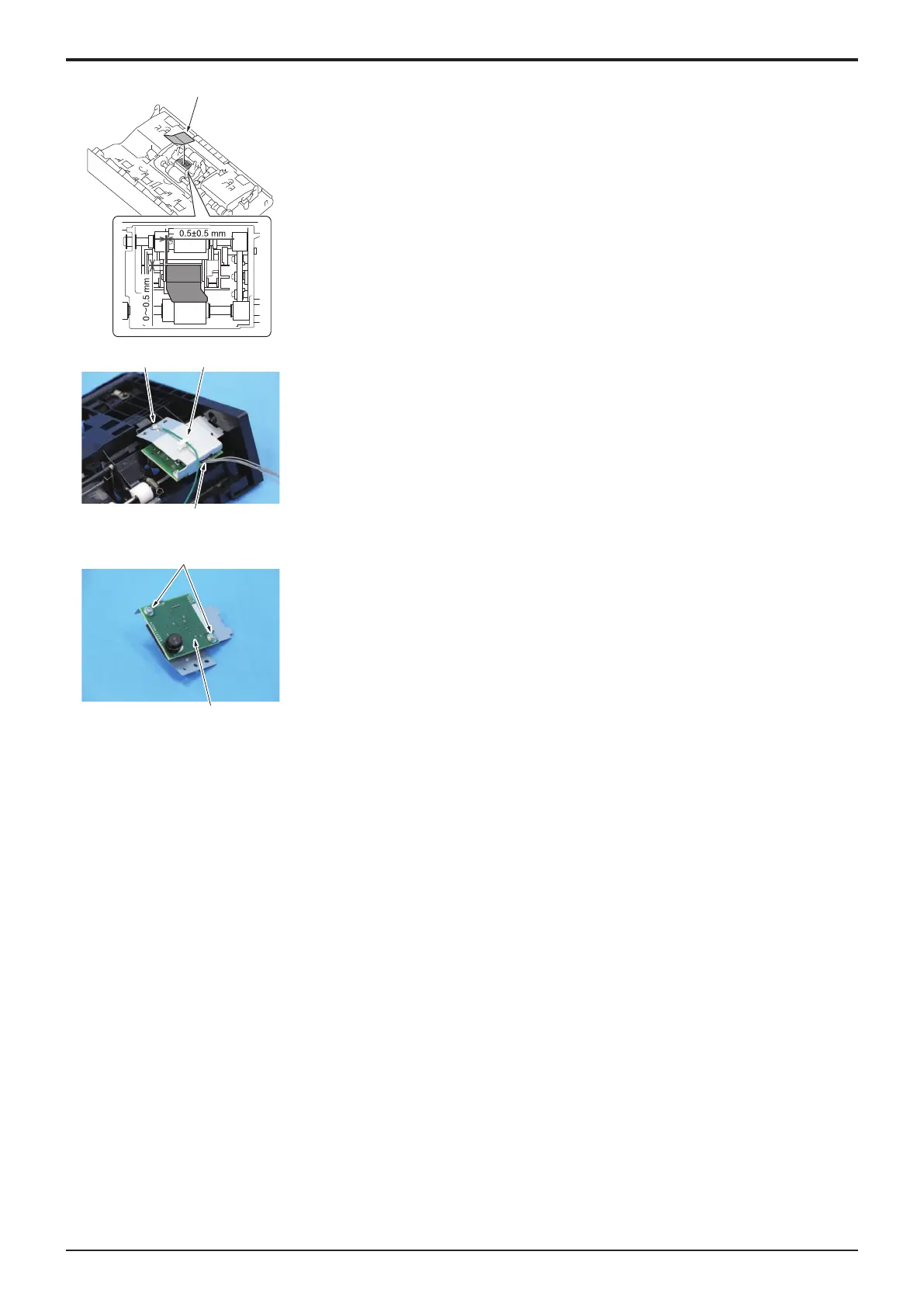

d-Color MF4003/MF3303
F DISASSEMBLY/REASSEMBLY > 10. UK-P19
F-63
[1]
8. NOTE
â–ª When mounting the cover, place an order including the film (part No.
AVGR30014 J).
â–ª After mounting the cover, stick the film [1] on the position shown in
the illustration.
[3]
[1] [2]
9. Remove the screw [1], and remove the ground wire from the wire saddle [2].
10. Disconnect the connector [3].
[2]
[1]
11. Remove two screws [1], and remove the multi feed detection board/RX [2].
12. To reinstall, reverse the order of removal.
Y119930-3
