d-Color MF4003/MF3303
K FIRMWARE > 2. USB memory
K-3

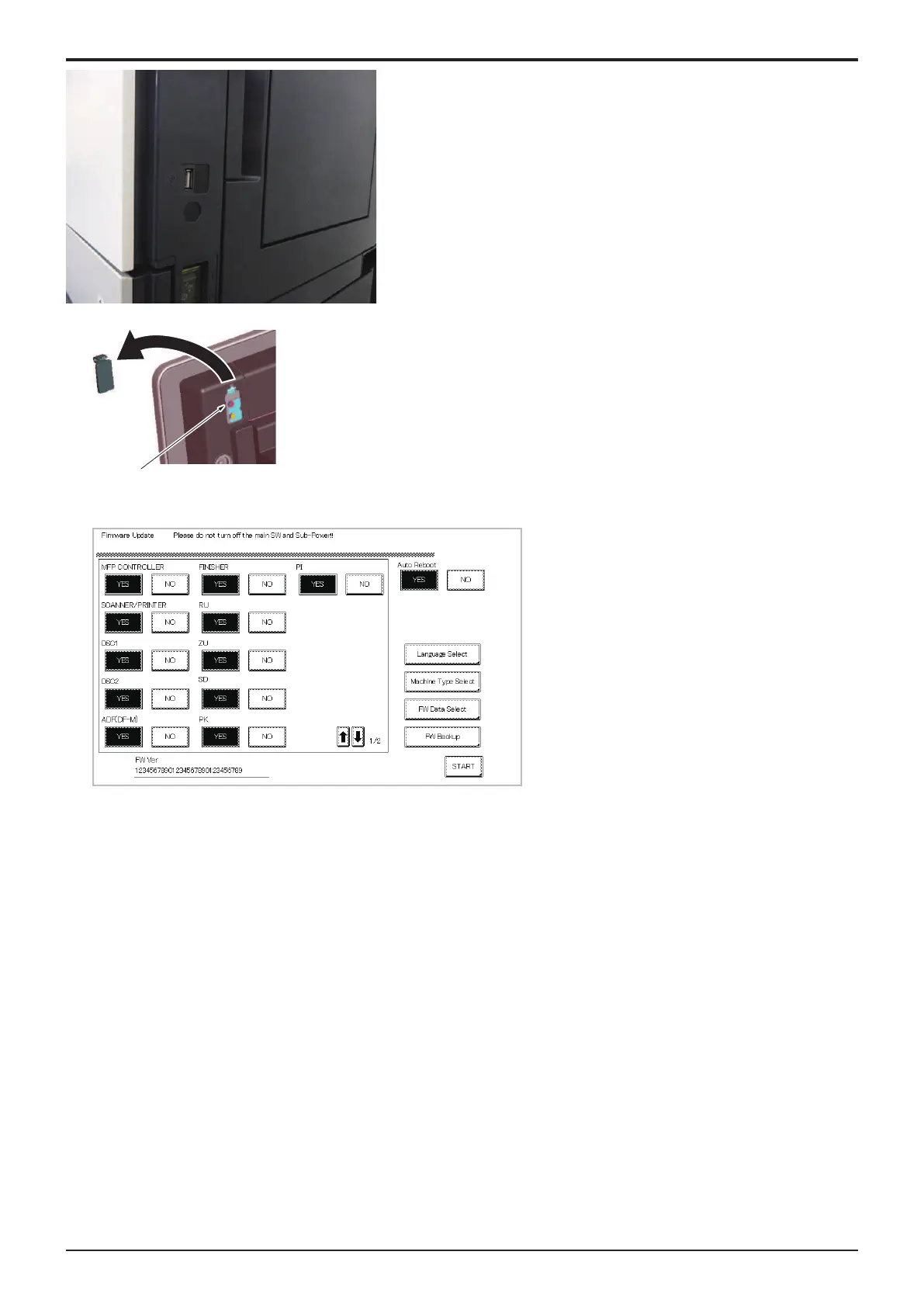

2. Connect the USB memory containing the firmware into the USB port on the
right side of the control panel.
3. Remove the cover [1] at the back of the control panel.
4. Turn the main power switch ON while pressing the [Rear Stop] key [2].
5. Firmware Update selection screen is displayed.
NOTE
â–ª Unless one of the keys on the control panel is pressed, firmware is automatically updated after 30 seconds when the main power
switch is turned on.
â–ª Selectable items displayed change depending on equipped options, etc.
Selecting the firmware data
• When multiple set of firmware data is stored in the USB memory, a set of data can be selected.
• The firmware data in the update data folder "FW0022" copied to the root directory of the USB memory is selected as the default data.
<Procedure>
1. Touch [FW Data Select] on the firmware update selection screen.
2. After the data in the USB memory is checked, a list of the available firmware data is displayed.
• The default data is indicated by an asterisk (*).
3. Select the firmware, and touch [OK].
Language Selection
• Select the language data displayed on the Language Selection screen of Utility.
• Select languages as required according to, for example, the use environment of the user.
NOTE
â–ª Up to 9 languages are selectable. However, Japanese and English are essential options.
<Procedure>
1. Touch [Language Select] on the firmware update selection screen.
2. On the Language Select screen, select a language to be displayed on the LCD area of the control panel, then touch [Fix].
To Next Page
