d-Color MF4003/MF3303

P THEORY OF OPERATION > 1. d-Color MF4003/MF3303

P-13

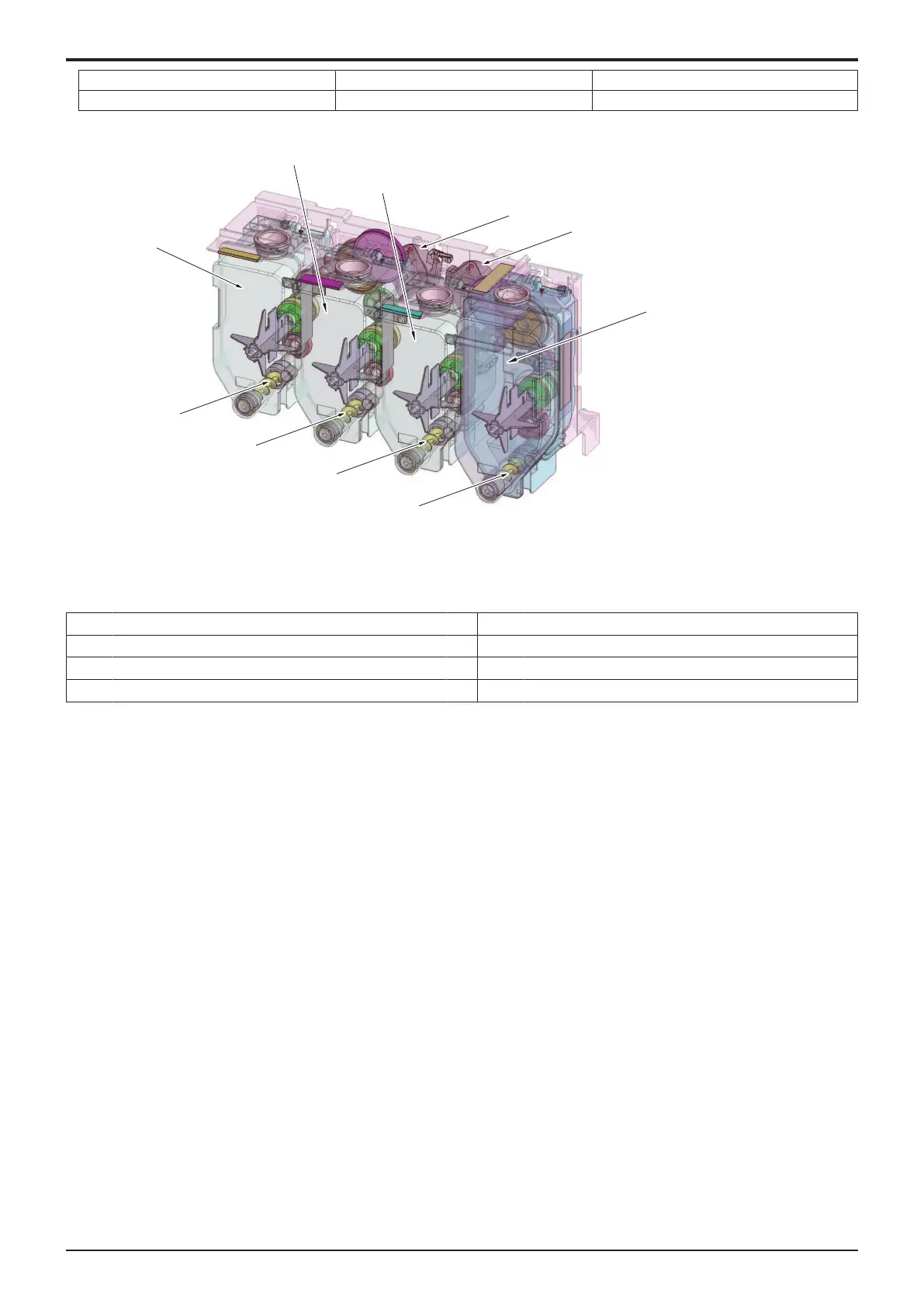

Counterclockwise rotation Toner Y is supplied Toner C is supplied

Clockwise rotation Toner M is supplied Toner K is supplied

[2]

[3]

[4]

[5]

[6]

[7]

[1]

[1] Toner cartridge/Y [2] Toner cartridge/M

[3] Toner cartridge/C [4] Toner supply motor/YM (M4)

[5] Toner supply motor/CK (M5) [6] Toner cartridge/K

[7] Toner supply screw - -

(3)Toner replenishing control

• The toner replenishing time (the amount of toner supplied) during the toner replenishing control is determined based on the TC ratio

detected by the TCR sensor (noncontact magnetic type) disposed at the developing section of the imaging unit for each color of toner

and the amount of toner to be consumed (estimated) for the image to be printed.

• If replenishing is interrupted by a paper misfeed, the front door opened or closed, or any similar event, the required replenishing time is

carried forward to the next replenishing control sequence.

• For details of the TCR sensor, see Toner density control.

Y119930-3
