d-Color MF4003/MF3303
P THEORY OF OPERATION > 1. d-Color MF4003/MF3303
P-54
6. While the first sheet of paper is fed out, the second sheet of paper is taken up and fed in and the image of the fourth page of the
original is printed.
• Steps 2 to 5 are repeated hereafter.

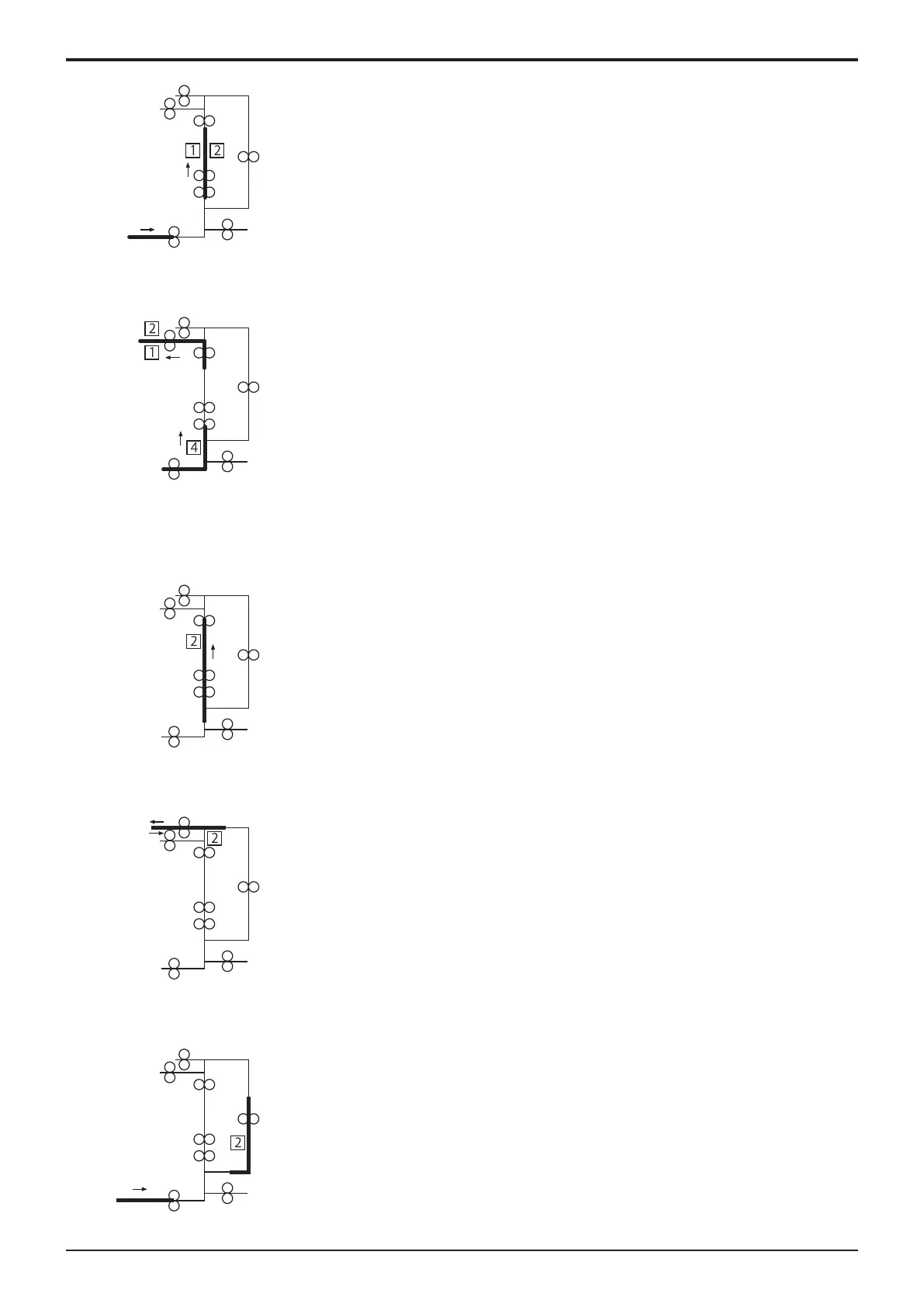

(b)2 sheet operation
1. A sheet of paper is taken up and fed in and the image of the second page of the original is printed.
2. The switchback guide operates so as to transport the paper to the reverse section. Immediately before the paper leaves the paper
reverse roller, the direction of rotation of the reverse roller is reversed and the paper is transported toward and into the duplex section.
3. While passing through the duplex section, the paper stops temporarily at the re-feeding position. At the same time, the second sheet of
paper is taken up and fed in.
