d-Color MF4003/MF3303
E MAINTENANCE > 3. Periodical replacement procedure
E-15
[1]

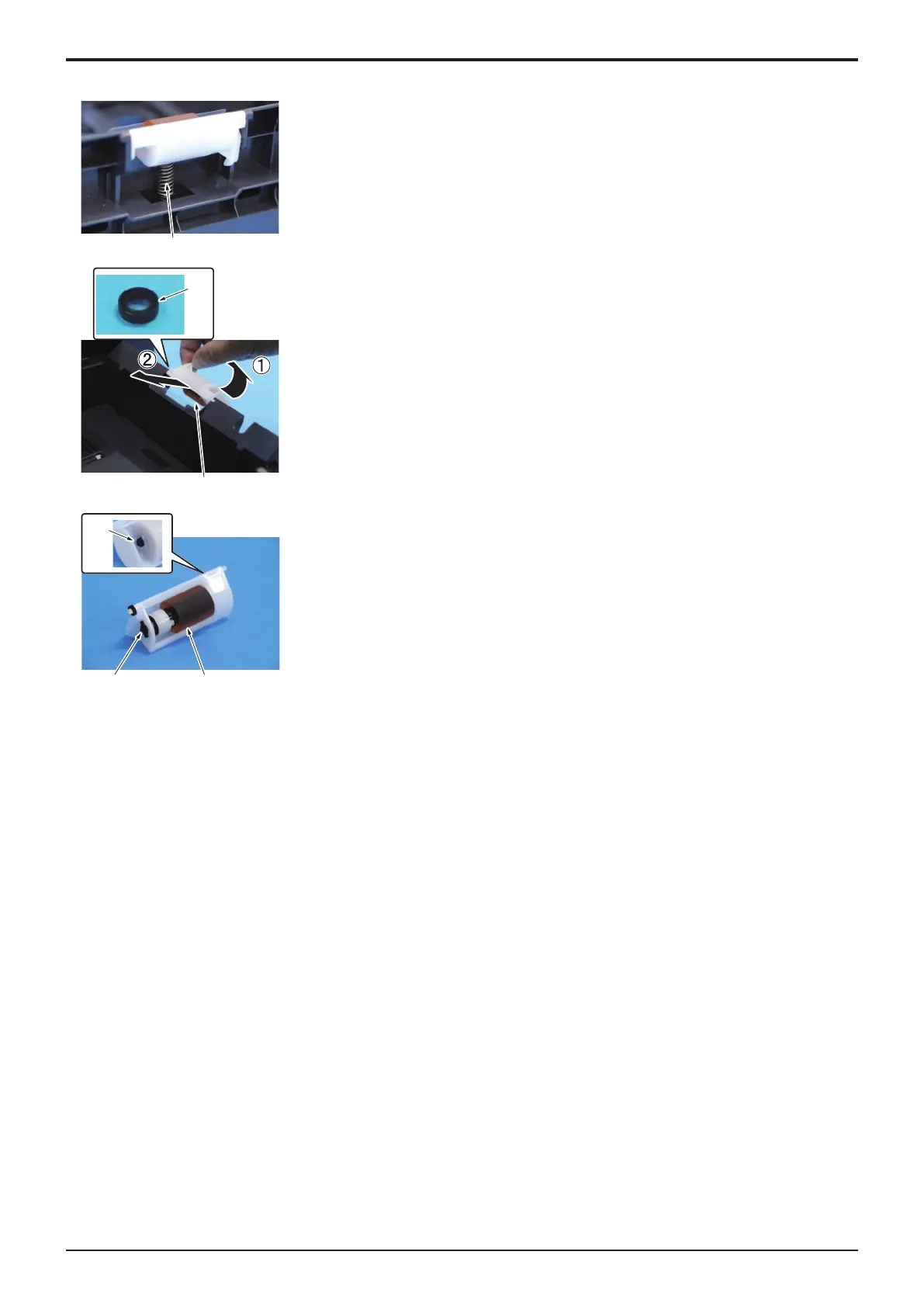

3. Remove the spring [1].
[1]
[2]
4. Remove the separation roller assy [1].
NOTE
â–ª Make sure not to lose the collar [2] when removing the separation
roller assy.
[2] [3]
[1]
5. Remove the C-clip [1], pull out the shaft [2], and remove the separation roller
assy [3].
6. To reinstall, reverse the order of removal.
7. Select [Service Mode] -> [Counter] -> [Life] and clear the count of [2nd Feed Count] or [3rd Feed Count].
Y119930-3
