d-Color MF4003/MF3303
P THEORY OF OPERATION > 8. FK-517
P-106

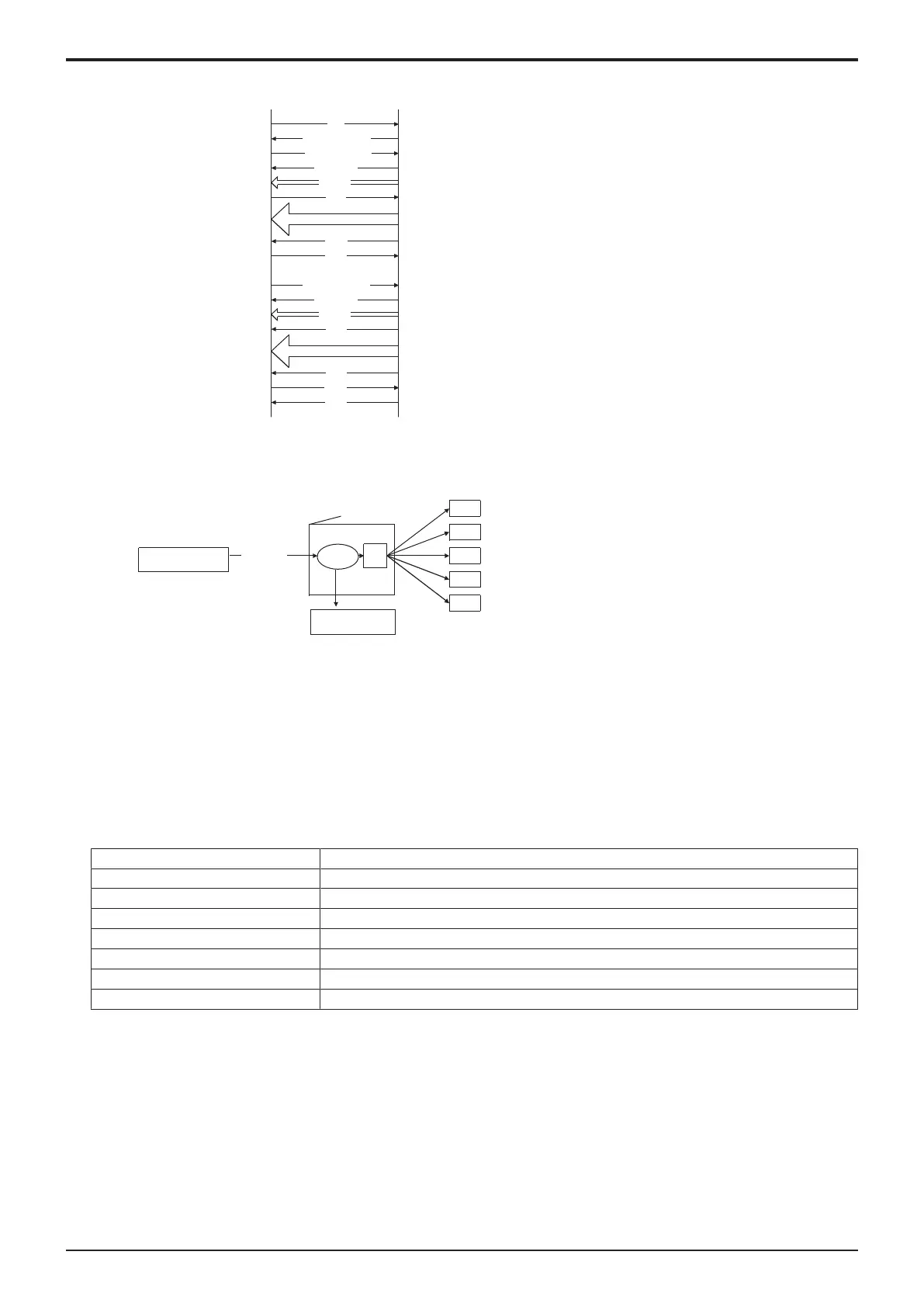

(b)Example of protocol sequence
Call
(NSF)/(CSI)/DIS
SEP/(CIG)/DTC
TCF
CFR
PIX
EOM
MCF
(NSF)/(CSI)/DIS
(TSI)/DCS
TCF
CFR
PIX
EOP
MCF
DCN
Calling Called
(TSI)/DCS
(4)F-code relay transmission
A
(Relayed document
printing)
Relay request
Box No.
F-code
Relay req
uesting station
Relay BOX
(No.)
Multi-
sta
tion
group
SUB / SID
F-code relaying station
Final destinations
(Multi-station)
B
C
D
E
(1)
(2)
(3)
(4)
(5)
NOTE
▪ This machine is only relay requests and do not function as a relaying station.
1. The relay box is registered in the relaying station.
• Registering relay box No., relay password and relay group No.
2. Registration of group
• Registering final destinations in the group No.
3. Transmission operation in the relay requesting station
• Instructs relay box no. and relay password.
4. Transmission to the final remote stations registered in the group
5. Possible to printed relayed documents on the relaying station (depends on the parameter setting)
(a)BOX specifications
Relay box Possible to register up to 5.
Relay box No. Any box number that can range between 1 and 999999999
Relay password Any 8-digit number
Relay BOX name To be assignable
Access protect No. No
Final destination designation Possible only to register in the relay box by appointing the group.
File erasure after transfer Always erased
Conditions to erase box by operations Only when there are no files of received messages in the relay box, box can be erased.
Service Manual
Y119930-3
