P THEORY OF OPERATION > 8. FK-517
P-105

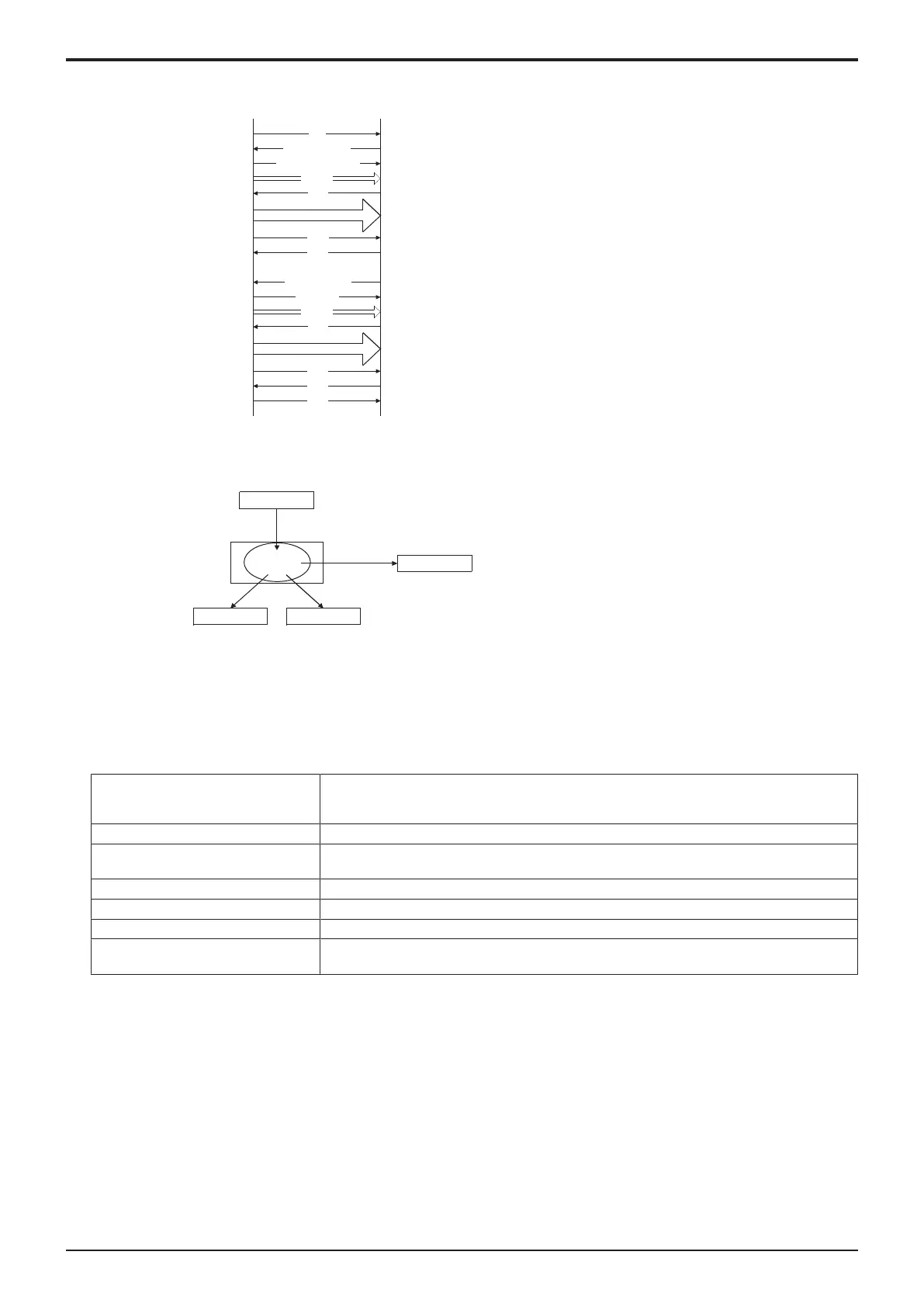

(b)Example of the protocol sequence
Call
(NSF)/(CSI)/DIS
SID/SUB/(TSI)/DCS
TCF
CFR
PIX
EOM
MCF
(NSF)/(CSI)/DIS
(TSI)/DCS
TCF
CFR
PIX
EOP
MCF
DCN
Calling Called
(3)F-code bulletin board polling
Remote output
Printing
Bulletin
board
SS
SS
EE
EE
PP
PP
F-code compliant machine
Box No.
Box No.
F-code compliant
cen
ter machine
Local storing
Box No.
Deletion
Box No.
(1)
(2)
(3)
1. Registration of the bulletin board box in the center machine
• Registration of the bulletin board No. and name
2. Storing documents in the bulletin board
3. Operations for polling reception on the compliant machine
• Appointment of bulletin board No.
(a)BOX specifications
Bulletin board box No. • Represented by a nine digit number. Operationally between 1 and 999999999.
• You can not open the same box number as the confidential box which has been already
opened.
Bulletin board password No
Bulletin board box name • Yes
• Same number of characters as the confidential box
Erased at printing Not erased when printed.
Erased at polling Not erased when polled.
Access protect No. No
No. of document registration to the
bulletin board box
Only once. If already exist, it is overwritten.
Y119930-3
