Date Code 20151029 Protection Manual SEL-411L Relay
Installation
Connection

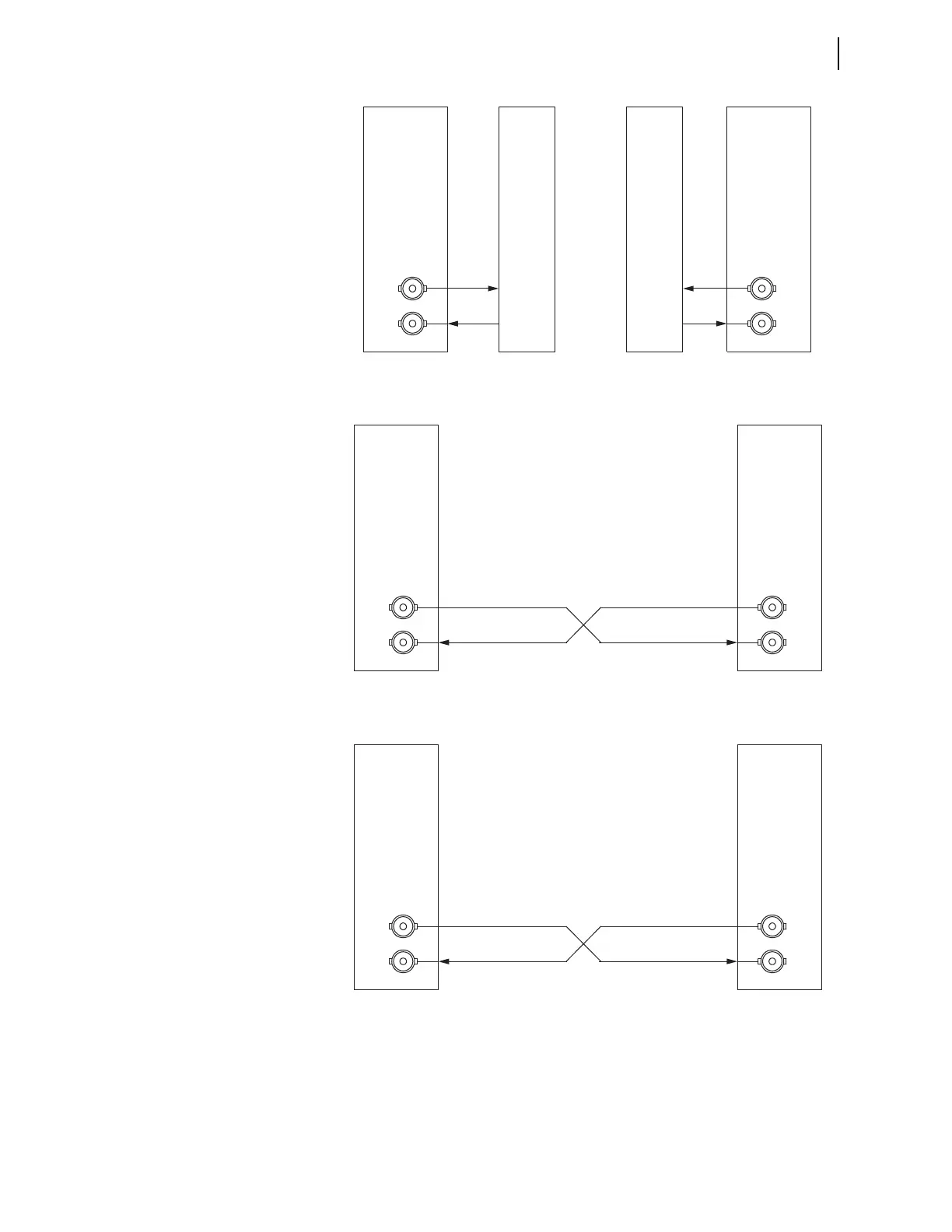

Figure 2.36 IEEE Standard C37.94 Fiber-to-Multiplexer Interface
Figure 2.37 1300 nm Direct Fiber Connection
Figure 2.38 1550 nm Direct Fiber Connection
Relay
ST-Connectors
TX
RX
Relay (Local)
Multiplexer Channel Card
or Adapter Module
Multiplexed
Network
Relay
ST-Connectors
TX
RX
Relay (Remote)
C37.94 C37.94
Multiplexer Channel Card
or Adapter Module
Relay
ST-Connectors
TX
RX
Relay (Local)
50 or 62.5 micron Multimode or
9 micron Single-Mode Fiber
Relay
ST-Connectors
TX
RX
Relay (Remote)
Relay
ST-Connectors
TX
RX
Relay (Local)
9 micron Single-Mode Fiber
Relay
ST-Connectors
TX
RX
Relay (Remote)
