Sel 411L - Figure 6.15 Sample Event Oscillogram; Figure 6.16 Retrieving Event Report Waveforms

P.6.17
Date Code 20151029 Protection Manual SEL-411L Relay
PC Software
ACSELERATOR QuickSet Event Analysis

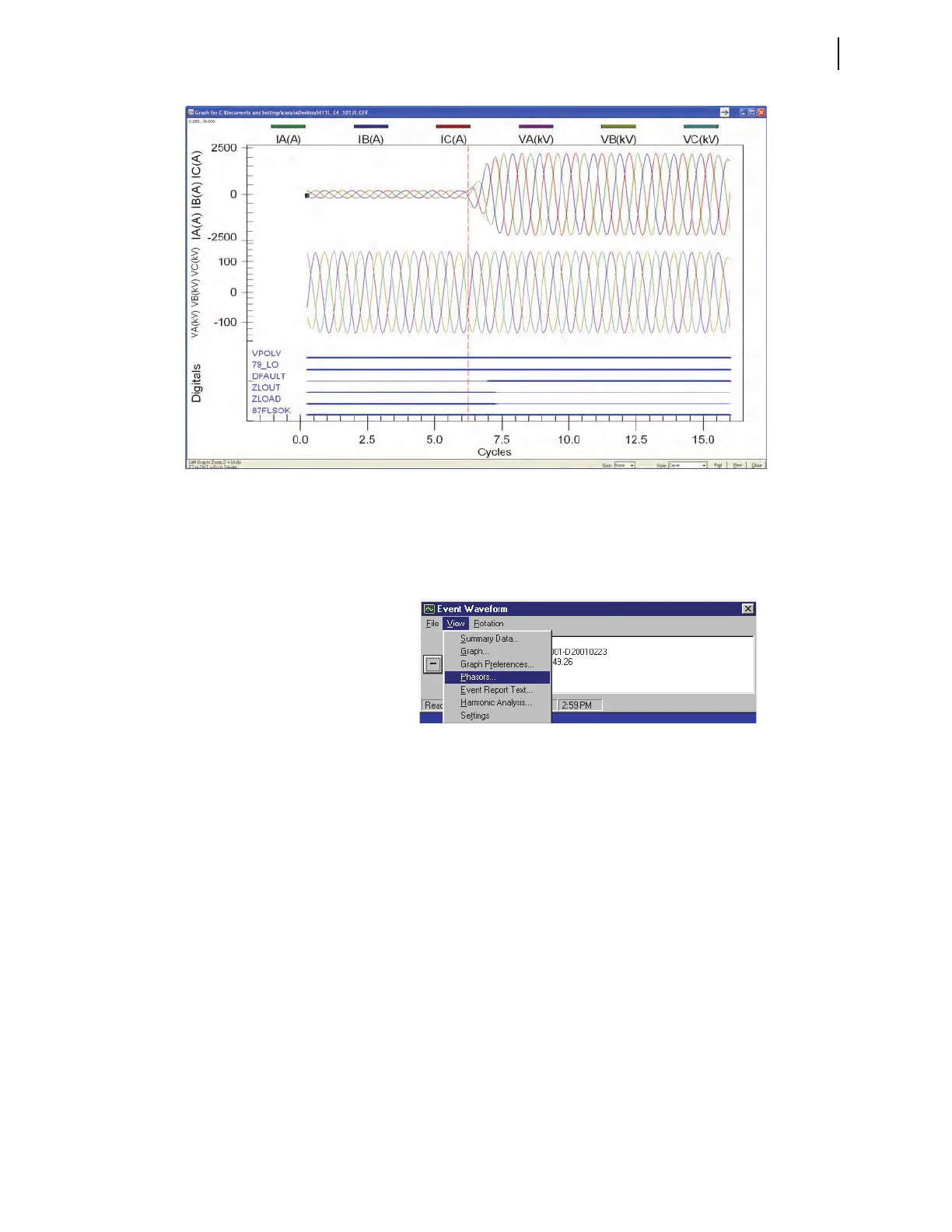

Figure 6.15 Sample Event Oscillogram
Other event displays are available through the Event Waveform dialog box.
Select the View menu and click Phasors, as shown in Figure 6.16, to view a
sample-by-sample phasor display. The phasor display should be similar to
Figure 6.17.
Figure 6.16 Retrieving Event Report Waveforms
